TE Connectivity / AMP 207398-3

B07KWJ5GW9

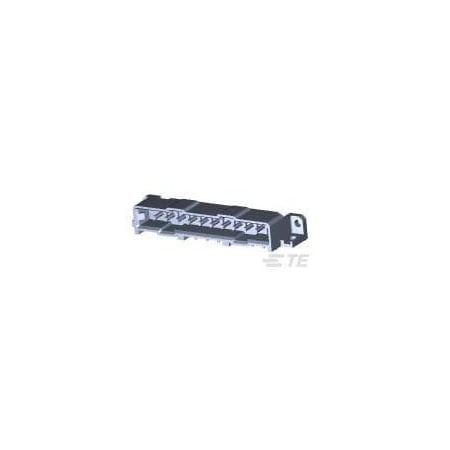

207398-3, METRIMATE PIN Header Assy,10P (5 Items)

207398-3, METRIMATE PIN Header Assy,10P (5 Items)zoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number207398
CategoryConnectors, Interconnec.
Connector StyleReceptacle
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact LayoutInline
Contact Length - Mating-
Contact Length - Post0.192" (4.88mm)
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin, Pin
Country of Origin (subj.Mexico
Current Rating (Amps)7.5A
DescriptionCONN HEADER R/A 10POS 5.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA115038-ND
Fastening TypeLatch Holder
FeaturesMounting Flange
For Use WithPlug Housing
Height17.5 mm
Ingress Protection-
Insulation ColorBlack, Red
Insulation Height0.500" (12.70mm)
Insulation MaterialPolyamide (PA), Nylon
Length71.86 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.207398-3
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions10
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 130?C
Overall Contact Length-
PackageTube
Pitch - Mating0.197" (5.00mm)
Product StatusObsolete
Product TypeConnector
Row Spacing - Mating-
SeriesMetrimate
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600V
Width0 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 207398-36.7101757TE CONNECTIVITY/AMP BRAND6.7 @ 10
thumbzoomZoroG7010676759.561In StockTe Connectivity9.56 @ 1
Onlinecomponents.com207398-39.9817713TE Connectivity / AMP Brand9.98 @ 1
us.rs-online.com7097167910.9175In StockTE Connectivity10.9 @ 175
thumbzoomDigi-Key29922313.244285714371757TE Connectivity AMP Connectors13.2442857143 @ 7
Newark96Y033318.9411749AMP - TE CONNECTIVITY18.94 @ 1
