3M MVU14-10FX

mpnMVU14-10FX
brandname: 3-M
manufacturername: 3-M

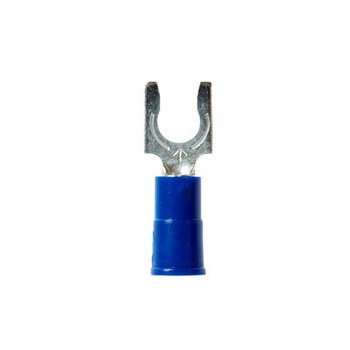

3M(TM) Scotchlok(TM) Fork Vinyl Insulated, 100/bottle, MVU14-10FX

Brand: 3M
PartNumber: MVU14-10FX
Model: MVU14 10
PackageQuantity: 1
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MVU14-10FX
Allowable Gauge Range	16 - 14
Barrel Length Type	Butted
Barrel Size	0.09 in ID x 0.45 in L
Barrel Style:	Butted
Barrel Type	Butted Seam
Base Product Number	MVU14
Brand	3M
Category	Electrical Terminals, C.
Clearance	0.29 in
Clearance (C):	0.29 Inch
Color	Blue
Conductor Size	16 to 14
Conductor Type	Stranded Copper
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper, ETP
Country of Origin	USA
Country of Origin (subj.	United States
Description	CONN SPADE TERM 14-16AW.
Detailed Description	Blue 10 Stud Spade Term.
Digi-Key Part Number	3M157488-ND
Fastening Mechanism	Non-Locking
Features	Butted Seam
Finish	Tin Plated
Fork Width	0.34 in
Inside Diameter	0.09 in
Insulation	Insulated
Insulation Color	Blue
Insulation Diameter	0.170" (4.32mm)
Insulation Length	0.74 in
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Fork Terminal
Length	0.9
Length - Overall	0.900" (22.86mm)
Length - Ring Center to.	0.290" (7.37mm)
Length - Termination	0.450" (11.43mm)
Manufacturer	3M
Manufacturer Product Nu.	MVU14-10FX
Manufacturer Standard L.	3 Weeks
Material	Vinyl
Material - Insulation	Vinyl
Material:	PVC
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.17 in
Maximum Wire Size	14 AWG
Mfr	3M
Minimum Conductor Leg D.	16 AWG
Minimum Wire Size	16 AWG
Mounting Type	Free Hanging (In-Line)
Number Of Terminals:	100 per bottle
Overall Length	0.88 in, 0.9 in
Overall Width	0.34 in
Package	Bulk
Package Quantity	100 per bottle, 500 per.
Product Status	Active
Seam	Butted
Series	Scotchlok?
Size	10
Specifications	0.17 in Dia Max Insulat.
Standard:	UL and CSA
Standards	CSA Certified, UL Listed
Stud Size	#10, 1/4 in
Stud Size:	10
Stud/Tab Size	10 Stud
Sub Brand:	Scotchlok
Temperature Rating (Deg.	-40 to 221
Terminal Connection	Crimp
Terminal Size:	16 - 14 AWG
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening	-
Tongue Size	0.34 in W x 0.03 in THK
Tongue Type	Fork
Tongue Width - Wire Con.	0.34 in
Trade Name	Scotchlok
Type	Insulated Standard, For.
Type:	Fork
UNSPSC	39121432
UPC	051128588833
Voltage Rating	600/1000
Width (W):	0.34 Inch
Width - Outer Edges	0.340" (8.64mm)
Wire Gauge	14-16 AWG
Wire Range	16 to 14 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Kelly Hayes	MVU14-10FX	0.29	1	1200		3M		0.29 @ 100
turtle.com	MMM MVU14-10FX	0.31	1	100		3M		0.31 @ 100
Platt.com	0013746	0.37	1	100		3M		0.37 @ 100
Digi-Key	3865848	0.4741	1	100		3M		0.4741 @ 100
Dale-Electric	MVU14-10FX	22.33	1	100		3M		22.33 @ 100
gordonelectricsupply.com	MVU14-10FX	25.99	1	100	455	3-M		25.99 @ 100
standardelectricsupply.com	2349953	27.0	1	100		3M		27.0 @ 100
Zoro	G1783162	35.86	1	414		3M	0.25	35.86 @ 100
Newark	66W6096	52.39	1	100		3M		52.39 @ 100
Raptor Supplies	AE2EVW	54.504333	1	100		3M		54.504333 @ 100
rshughes.com	051128-58883	125.0	100	100		3M		125.0 @ 100
