Burndy YA252LN

B00GPQ5E72

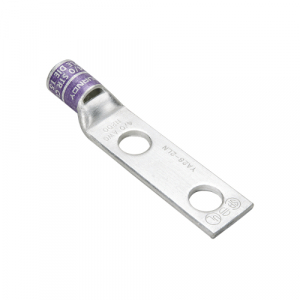

YA252LN -- LUG COMP 1/0 2 hole 1/2" STD

YA252LN -- LUG COMP 1/0 2 hole 1/2" STDzoom

Attributes

Key Value
ApplicationFor Code Conductor, Wir.
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA252LN
Certification - CSA App.No
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorPink
Color CodePink
Color FamilyPink
Conductor - Copper DLO .N/A
Conductor - Copper Str .100 (61) Navy
Conductor - Copper Str .100 (61) Navy
Conductor - Copper Str .1/0
Conductor - Copper Str .1/0
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Die ColorPink
Die Index12;348
Dimension - B Length fr.7/8 in
Dimension - B Length in.0.88 in
Dimension - Bolt Hole S.0.52 in
Dimension - D inch1.27 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.109 mm
Dimension - Length Over.4.29 in
Dimension - N inch0.63 in
Dimension - Outside Dia.0.51 in
Dimension - Pad Width i.0.83 in
Dimension - Strip Lengt.15/16
Dimension - Stud Size i.1/2
Dimension - Z inch0.64 in
ECCNEAR99
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel TypeStandard
FinishTin-Plated
Gross Weight0.0069 lbs
InsulatedNon-Insulated
Item NumberYA252LN
Item TypeStandard Barrel, Tin Pl.
Lug Wire Size1/0 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA252LN
MaterialCopper
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Hole Spacing1.75 in.
Stud Size1/2 in.
Stud Spacing1.75
Sub BrandHYLUG
Terminal MaterialCopper
Terminal TypeRing
Tongue Width0.83 "
TypeStandard Barrel, Tin Pl.
UL ListedYes
UNSPSC39121405
UPC781810502273
Use WithCopper
Voltage - Maximum35000
Voltage Rating35
Wire Size1/0 AWG
Wire Size (AWG)1/0 AWG
Wire Strip Length0.937 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com195215.231In StockBURNDY5.23 @ 1
thumbzoomKelly HayesYA25-2LN7.84112Burndy7.84 @ 1
thumbzoomgordonelectricsupply.comYA25-2LN8.041In StockBURNDY8.04 @ 1
thumbzoomZoroG80243887911.111In StockBurndy11.11 @ 1
thumbzoomGalcoYA252LN-BURN12.541In StockBurndy0.006912.54 @ 1
thumbzoomusmegastore.comYA252LN14.251In StockBurndy14.25 @ 1
kirbyrisk.com202129015.911In StockBurndy15.91 @ 1
Graybar9001215117.20321In StockBurndy17.2032 @ 1
thumbzoomcrescentelectric.com2665324.361In StockBurndy-US, a Hubbell affiliate24.36 @ 1
