Century F1076A

B0719QPB7R

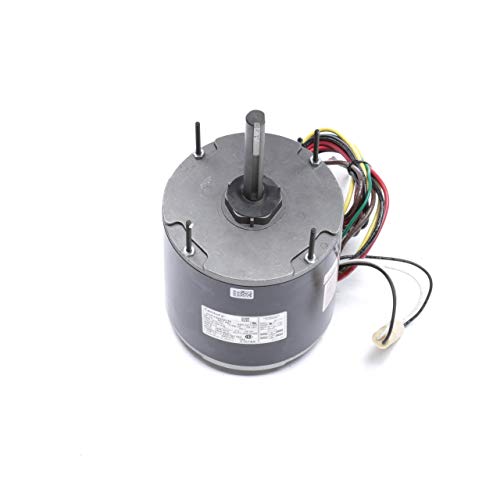

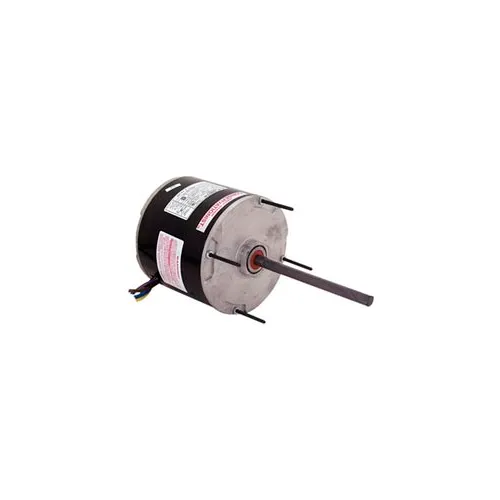

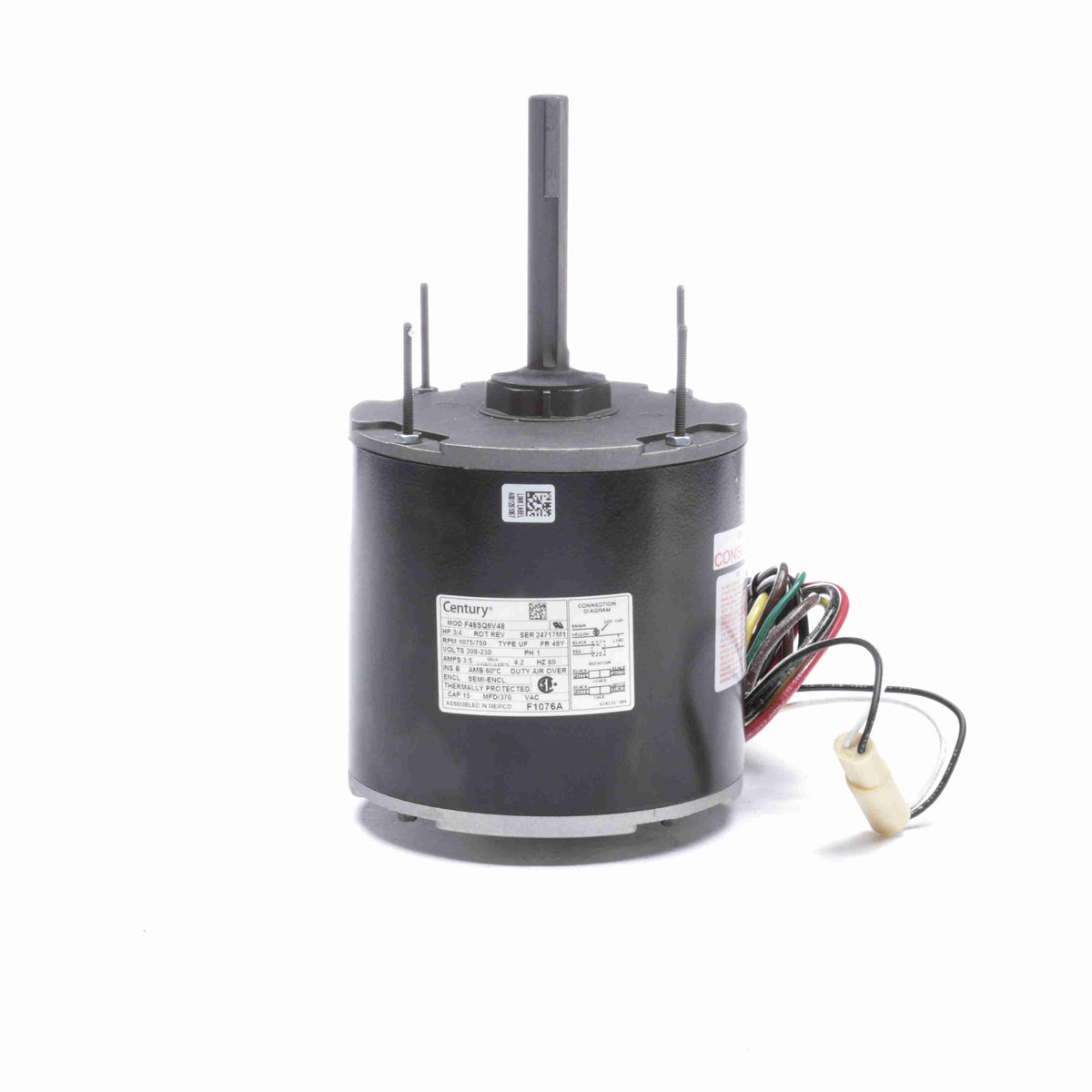

Century Motors Condenser, Heat Pump, Refrigeration Motor #F1076A

Century Motors Condenser, Heat Pump, Refrigeration Motor #F1076Azoom

Attributes

Key Value
Amps3.5
BearingsBall
Best Sellers Rank#3,498,735 in Tools & H.
BrandCentury
C-Dimemsion10.19 (in.)
Capacitor15MFD @ 370VAC Required
Catalog NumberF1076A
CEN
CSAY
Date First AvailableMay 23, 2017
DE Bearing TypeBall
DEM ReferenceAOS#F1076A
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
EnclosureSemi Enclosed
Enclosure TypeOAO (Open Air Over)
F1076A is listed in Cen.A.O. Smith F48SQ6V48, L.
Frame48Y
Frame MaterialRolled Steel
Frequency60
HP3/4
Hz60
Insulation ClassB
IP Code-
Item5-5/8in. Dia. Outdoor F.
KVA Code-
ManufacturerCentury
Max Ambient60?C
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor OrientationAny
MountingBand/Ring/Stud
Mounting TypeExtended Studs
Number of Speeds2
ODE Bearing TypeBall
Package Quantity1
Part NumberF1076A
Phase1
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
RotationReversible
RPM750/1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter5/8" Keyed, 5/8 (in.)
Shaft Extension4.4 (in.)
Shaft Length4.39"
Shaft TypeKeyed
Ship Weight19 lbs.
Shippingundefined (Fixed Shippi.
Speeds2
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Volts208-230
