C5P0403N-A

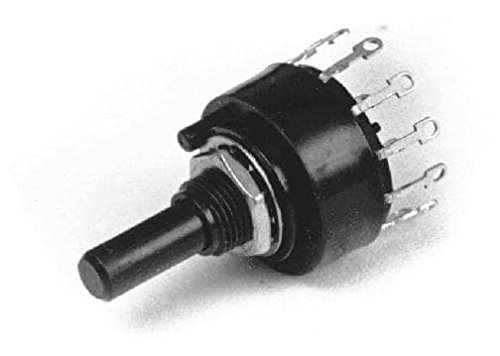

"Electroswitch Inc. C5P0403N-A Switch, Rotary; 4 Poles; 2-3 Pos.; 1 Section; Sealed; Non-shorting; 1A; 28VDC; Solder T."

"Electroswitch Inc. C5P0403N-A Switch, Rotary; 4 Poles; 2-3 Pos.; 1 Section; Sealed; Non-shorting; 1A; 28VDC; Solder T."zoom

Attributes

Key Value
AC Voltage125 V
Actuator Length14.29mm
Actuator TypeFlatted Shaft ; 6.35 mm.
Angle of Throw30?
Base Product NumberC5P0403
CategorySwitches
Circuit per Deck4P3T
Contact FinishSilver
Contact Form4P3T
Contact MaterialBrass
Contact PlatingSilver
Contact TimingNon-Shorting (BBM)
Current Rating1 A
Current Rating (Amps)1A (AC/DC)
DC Voltage28 V
Depth0.79 in
Depth Behind Panel20.07mm
DescriptionSWITCH ROTARY 2-3POS 1A.
Detailed DescriptionRotary Switch 2 ~ 3 Pos.
Dielectric Strength1000 VAC
Digi-Key Part Number451-1030-ND
FeaturesSealed
FunctionNon-Shorting (BBM)
Index StopsAdjustable
IndexingAdjustable
Insulation MaterialPolyester
ManufacturerElectroswitch
Manufacturer Product Nu.C5P0403N-A
Manufacturer Standard L.13 Weeks
Mechanical Life25000 Cycles (Min.)
MfrElectroswitch
Mounting Hole Size0.375 in
Mounting TypePanel Mount
Number of Decks1
Number of Poles4
Number of Poles per Deck4
Number of Positions2 to 3, 2 ~ 3
Operating ForcePolyester
PackageBulk
Panel Cutout DimensionsCircular - 9.78mm Dia
Product StatusActive
SeriesC5 Series, C5
Special FeaturesFlat Shaft
TerminationSolder Lugs
Termination StyleSolder Lug
TypeRotary
Voltage Rating28 VDC
Voltage Rating - AC125 V
Voltage Rating - DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark06M46069.68113ELECTROSWITCH9.68 @ 1
Onlinecomponents.comC5P0403N-A11.461100ELECTROSWITCH11.46 @ 1
HotendaH411114711.551In StockElectroswitch11.55 @ 1
thumbzoomDigi-Key51408414.791101Electroswitch14.79 @ 1
us.rs-online.com7015242818.24195Electroswitch Inc.18.24 @ 1
