Ilsco TA-500

mpnTA-500
brandname: ILSCO
manufacturername: ILSCO

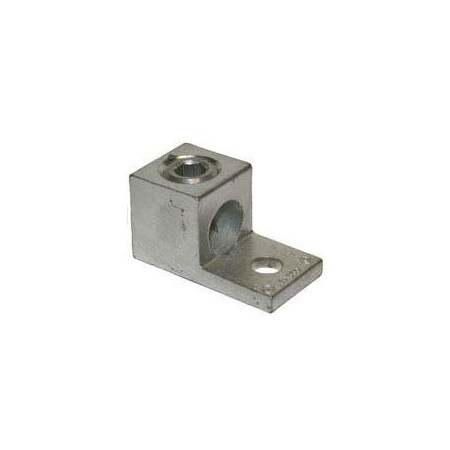

Ilsco TA-500 Aluminum lug single 500MCM - 4 awg LUG500AL

Brand: Ilsco
PartNumber: TA-500
Model: TA-500
Manufacturer: Ilsco
Label: Ilsco

Attributes

Key	Value
Allowable Gauge Range	4 - 500
Approvals	CSA, UL
ASIN	B008KM6ZNG
Bag Quantity	1
Batteries Included?	No
Batteries Required?	No
Brand Name	Ilsco
Carton Quantity Descrip.	STD PACK QTY 12
Case Pack	1
Certification	Ul
Color	Silver
Color Code	No
Color Family	Silver
Conductor Material	Copper, Aluminum
Conductor Range AL Stra.	500 kcmil - 4 Str
Conductor Range CU Stra.	500 kcmil - 4 Str
Conductor Size	500 KCMIL-4 AWG
Conductor Type	Stranded
Connection	Mechanical
Connector Finish	Tin
Contains DE-OX?	No
Country of Origin	MX - Mexico
Country Of Origin	Mexico
Country of Origin (subj.	Unknown
CSA File Number	LR-29601
CSA Standard	C22.2 No. 65-03
Degree of Protection	No
Dimension G (IN)	0.875
Direct Burial	No
Drive Size Main	3/8
Drive Type	No
Drive Type Main	Internal Hex
Dual Rated	Yes
ECCN	EAR99
Energy Star Flag	No
Family Series	Ilsco Terminals, TA Ser.
Finish	Electro Tin Plated
Gross Weight	0.3 lbs
GTIN	00783669891010
Height	1.562 in., 1.562 in \| 3.
Height (mm)	39.6748
Height BX (IN)	2
Hex Size	0.5
Insulation Material	No
Item model number	TA-500
Item Name	Dual-Rated Mechanical L.
Item Number	TA-500
Item Package Quantity	1
Length	2.812 in \| 71.4248 mm, .
Length (mm)	71.4248
Lug Wire Size	4 AWG-500 kcmil
Manufacturer	Ilsco
Manufacturer Name	Ilsco
Manufacturer Part Number	TA-500
Material	6061-T6 Aluminum Alloy,.
Material/Composition	Tin-Plated Aluminum
Max Conductor Range	500 kcmil
Measurement System	Imperial
Min Conductor Range	4 AWG
Mounting	1-Hole
Mounting Bolt/Stud Size	3/8
Mounting Bolt/Stud Size.	965.2
Mounting Hole Diameter .	0.406
Mounting Hole Diameter .	10.3124
Mounting Hole Spacing (.	0
Mounting Hole Type	Thru
National Stock Number	5940-00-143-4750
NEMA Code	S-588-3
Net Weight	0.28 lbs
Number of Conductors	1
Number of Holes	1, 1.0000
Number of Mounting Holes	1
Number Of Pieces	1
Number of Poles	1
Number of Ports / Wirew.	1
Number of Wire Binding .	1
Product Series	TA
Prop65 Compliance	This product is in comp.
RoHS Compliant	Yes
RoHS Flag	Yes
ROHS Indicator	IND
Size	2.8125 Inch Length x 1..
Standards	UL Listed, CSA Certifie.
Stud Size	3/8 in, 3/8 Inch, 3/8 i.
Tang Length (IN)	1.594
Tang Length (mm)	40.4876
Tang Thickness (IN)	0.312
Tang Thickness (mm)	7.9248
Tang Width (IN)	1.5
Tang Width (mm)	38.1
Temperature Rating	194 deg F (90 deg C), 9.
Tongue Size	1-19/32 Inch Length x 1.
Type	Mechanical, Lug, TA
UL / CULUS Specification	UL 467 Listed, UL 486A/.
UL Control Number	453G
UL File Number	E6207
UNSPSC	39121408, 39121466
UPC	78366989101
UPC Code	78366989101
Use With	Aluminum and Copper Con.
Voltage Rating	35 Kilo-Volt, 35 kV
Weight	0.3 lbs
Weight BX (LB)	3.747
Width	1.5 in., 1.5 in \| 38.1 .
Width (in)	1.5
Width (mm)	38.1
Width BX (IN)	6.1875
Wire Binding Hardware F.	Tin
Wire Binding Hardware M.	Aluminum
Wire Binding Screw Size	13/16
Wire Binding Torque	375

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	TA-500	10.39	1	In Stock		ILSCO		10.39 @ 1
Zoro	G6499990	11.15	1	In Stock	2	Ilsco		11.15 @ 1
AmazonTP	B006ITE59O	13.82	1	In Stock	1	Ilsco		13.82 @ 1
Monarch Electric	9007	14.08	1	In Stock		Ilsco		14.08 @ 1
Galco	TA-500-ILSC	14.31	1	34		Ilsco	0.3	14.31 @ 1
Platt.com	0029361	20.18	1	436		Ilsco		20.18 @ 1
Amazon	B008KM6ZNG	20.26	1	In Stock		Ilsco		20.26 @ 1
electricalparts.com	TA-500	20.2944	1	88		Ilsco		20.2944 @ 1
Kelly Hayes	TA-500	22.32	1	In Stock		ILSCO		22.32 @ 1
Lighting Supply	TA-500	25.75	1	In Stock		ILSCO		25.75 @ 1
standardelectricsupply.com	19511	33.11	1	In Stock		Ilsco		33.11 @ 1
mayerelectric.com	ILSTA500	36.29	1	In Stock		ILSCO	0.3	36.29 @ 1
Graybar	88138298	62.7088	1	In Stock		ILSCO		62.7088 @ 1
