Lovejoy 68514477186

B004QWZI0K

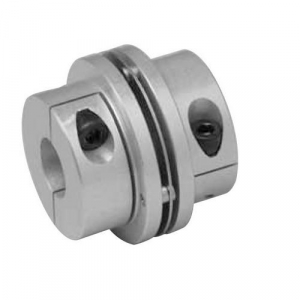

Lovejoy 77186 Size MDSD-32C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.188" Bore A, 0.188" Bore B, 1.26" OD, 1.26" Length, 4800 rpm Max Rotational Speed, 18 in-lbs Nominal Torque

Lovejoy 77186 Size MDSD-32C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.188" Bore A, 0.188" Bore B, 1.26" OD, 1.26" Length, 4800 rpm Max Rotational Speed, 18 in-lbs Nominal Torquezoom

Attributes

Key Value
Angular Misalignment1 ?
ApplicationMotion Control
Axial Misalignment? 0.20 in
Bore A0.188 in
Bore B0.188 in
Bore TypeFinished Bore
Clamp Screw SizeM3
Coupling SizeMDSD32C
Cubic inches2.00038 in3
Dimension HD0.866 in (22.00 mm)
Disc MaterialStainless Steel
Hub MaterialAluminum
Keyway SizeNo Keyway
Length thru Bore0.539 in (13.70 mm)
Max. Bore (Dimensions I.0.394 in (10.00 mm)
Max. Operating Temperat.300.00 ?F
Min. Bore (Dimensions I.0.118 in (4.00 mm)
Moment of Inertia0.0154 lb-in2
Nominal Torque18.00 in-lb
Outside Diameter1.260 in (32.00 mm)
Overall Length1.260 in (32.00 mm)
StyleClamp Screw
Torsional Stiffness11505.00 in-lb/rad
TypeMini Disc Coupling
Weight0.08 oz
Weight (Complete Coupli.1.34 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477186133.21In StockLovejoy0.005133.2 @ 1
thumbzoomheavydutydepot.com68514477186133.21In StockLovejoy133.2 @ 1
thumbzoomRadwell68514477186145.01In StockLOVEJOY145.0 @ 1
