Molex 43045-0806

mpn0430450806
brandname: Molex
manufacturername: Molex

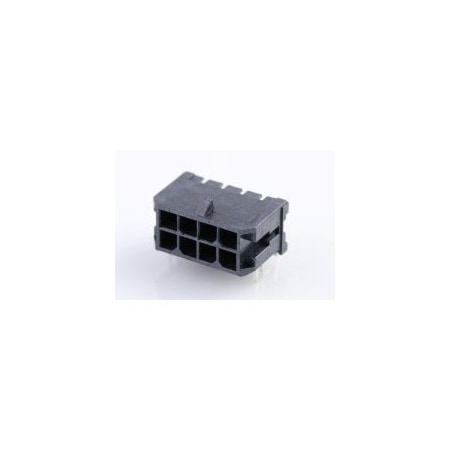

MOLEX 43045-0806 PLUG & SOCKET CONNECTOR, HEADER, 8POS, 3MM

Brand: Molex
PartNumber: 43045-0806
Model: 43045-0806
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	43045-0806
Angle	Right Angle
Application	Wire-to-Board
Applications	Automotive, General Pur.
Base Product Number	043045
Category	Connectors, Interconnec.
Color	Black
Connector	socket
Connector pinout layout	2x4
Connector series	Micro-Fit 3.0
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	-
Contact Material	Brass
Contact Plating Thickne.	0.254 ?m
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	3mm
Current Rating	8.5 A
Current Rating (Amps)	8A
Description	CONN HEADER SMD R/A 8PO.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM9170TR-ND - Tape & Re.
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Glow-Wire Capable, Boar.
Flammability Rating	UL 94V-0
For Use With	PCB Right-Angle Header
Hole Center to Center	3 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Insulation Material	Liquid Crystal Polymer .
Kind of connector	male
Locking system	for latch
Manufacturer	Molex
Manufacturer Product Nu.	0430450806
Manufacturer Standard L.	11 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Surface Mount, Right An.
Number of Circuits	8
Number of Contacts	8
Number of pins	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -40?C ~.
Orientation	Right Angle
Overall Contact Length	-
Package	Tape & Reel (TR)
Pin Spacing	0.118 "
Pitch	3.00 mm (0.118")
Pitch - Mating	0.118" (3.00mm)
Plating Material	Tin
Primary Type	Soft Shell
Product Header	Micro-Fit 3.0? Wire-to-.
Product Status	Active
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0 43045, 43.
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder, Surface Mount
Type	Right Angle Header
Type of connector	wire-board
Voltage Rating	600V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Onlinecomponents.com	43045-0806	1.65	1	31800		MOLEX / WALDOM	1.65 @ 1
Waldom	MOLEX 43045-0806	1.83	1400	1400		MOLEX	1.83 @ 1400
Power and Signal Group	0430450806	2.0701	1400	48		Molex	2.0701 @ 1400
Component Electronics	299-2792	2.31	1	40		Molex	2.31 @ 1
NEP Electronics	43045-0806	2.5441	1400	1400		Molex	2.5441 @ 1400
Hotenda	H1378530	2.6418	200	600		Molex	2.6418 @ 200
TME	MX-43045-0806	2.91	2	48		MOLEX	2.91 @ 2
us.rs-online.com	70091039	3.52	1	48		Molex Incorporated	3.52 @ 1
Newark	91C4996	4.04	1	662		MOLEX	4.04 @ 1
Digi-Key	735817	4.25	1	5605		Molex	4.25 @ 1
AmazonTP	B00DK8726E	6.48	1	48	5	MOLEX	6.48 @ 1
Radwell	43045-0806	7.0	1	48		MOLEX	7.0 @ 1
Zoro	G7768850	4690.0	1	48		Molex	4690.0 @ 1
