- mpn0430450809
- brandname: Molex
- manufacturername: Molex

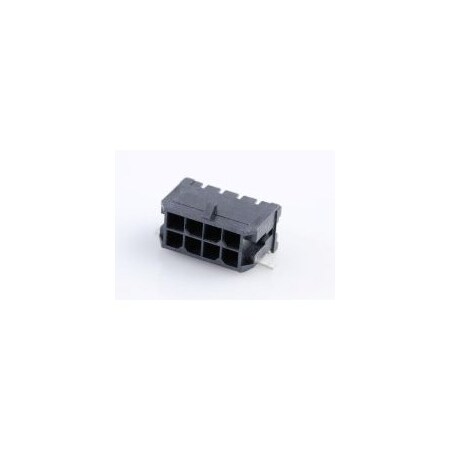

43045-0809,Conn Wire to Board HDR 8 POS 3mm Solder RA Side Entry SMD Micro-Fit 3.0 T/R (250 Items)
- Brand: Woodhead / Molex
- PartNumber: 43045-0809
- Model: 43045-0809
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 43045-0809 |
| Angle | Right Angle |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 043045 |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header, Male Pin |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | Tin, 60.0?in (1.52?m) |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 60.0?in (1.52?m) |
| Contact Finish Thicknes. | -, General Purpose, Med. |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Liquid Crystal Polymer . |
| Contact Plating Thickne. | 0.254 ?m |
| Contact Shape | Tin, Square |
| Contact Type | Male Pin, 0.118" (3.00m. |
| Current Rating | 8.5 A |
| Current Rating (Amps) | 600V, Varies by Wire Ga. |
| Description | CONN HEADER SMD R/A 8PO. |
| Detailed Description | Connector Header Surfac. |
| Digi-Key Part Number | WM1828TR-ND - Tape & Re. |
| Family Name | Micro-Fit 3.0 |
| Fastening Type | -, Locking Ramp |
| Features | Glow-Wire Capable, -, S. |
| Flammability Rating | UL 94V-0 |
| For Use With | PCB Right-Angle Header |
| Hole Center to Center | 3 mm |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | 8A, Black |
| Insulation Height | 0.290" (7.37mm), Square |
| Insulation Material | Liquid Crystal Polymer . |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0430450809 |
| Manufacturer Standard L. | 10 Weeks |
| Mated Stacking Heights | - |
| Material | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0, Black |
| Max. Temp. | 260?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Type | Solder, Surface Mount, . |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8, 8 Circuits, 2 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 2, 0.118" (3.00mm) |
| Operating Temperature | -40 to +105 ?C, -, -40?. |
| Orientation | Right Angle |
| Overall Contact Length | 0.290" (7.37mm), - |
| Package | Active, Tape & Reel (TR) |
| Part Status | Header |
| Pin Spacing | 0.118 " |
| Pitch | 3.00 mm (0.118") In. |
| Pitch - Mating | 8, 0.118" (3.00mm) |
| Plating Material | Tin |
| Primary Type | Soft Shell |
| Product Header | Micro-Fit 3.0? Wire-to-. |
| Product Status | Active |
| Row Spacing - Mating | All, 0.118" (3.00mm) |
| Series | Micro-Fit 3.0 43045, Ta. |
| Shrouding | Surface Mount, Right An. |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire, Sh. |
| Terminal Finish | Tin Plated |
| Terminal Type | Surface Mount |
| Termination | Solder, Locking Ramp, S. |
| Type | Right Angle Header |
| Voltage Rating | 600V, - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 43045-0809 | 1.17 | 200 | 10 | | MOLEX | | 1.17 @ 200 |
| Onlinecomponents.com | 43045-0809 | 1.59 | 1 | 3951 | | MOLEX / WALDOM | | 1.59 @ 10 |
 | NEP Electronics | 43045-0809 | 1.6176 | 200 | 2800 | | Molex | | 1.6176 @ 200 |
 | TME | MX-43045-0809 | 1.72 | 1400 | 10 | | MOLEX | | 1.72 @ 1400 |
| us.rs-online.com | 70091332 | 2.09 | 1 | 10 | | Molex Incorporated | | 2.09 @ 10 |
 | Radwell | 43045-0809 | 2.25 | 200 | 10 | | MOLEX | | 2.25 @ 200 |
 | Newark | 67X4846 | 2.81 | 200 | 1800 | | MOLEX | | 2.81 @ 200 |
 | Digi-Key | 3660014 | 3.505 | 1 | 25014 | | Molex | | 3.505 @ 10 |
| RS Delivers | 670-1954 | 4.8408 | 1 | 15 | | Molex | | 4.8408 @ 10 |
 | Zoro | G4031891 | 378.0 | 1 | 10 | | Molex | | 378.0 @ 10 |
