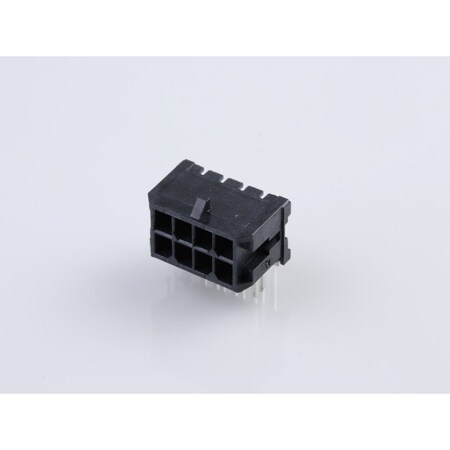

Molex 43045-0822

mpn0430450822
brandname: Molex
manufacturername: Molex

Headers & Wire Housings 3MM 2R RA 8P SMT HDR AU W/METAL RET CLIP (1 piece)

Brand: Molex
PartNumber: 43045-0822
Model: 43045-0822
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	43045-0822
Angle	Right Angle
Application	Wire-to-Board
Applications	General Purpose, Medica.
Body Orientation	Right Angle
Brand	Molex
Color	Black
Connector System	Wire to Board
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.125" (3.18mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	8.5 A, 5.0A
Current Rating (Amps)	8A
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Board Lock
For Use With	PCB Right-Angle Header
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Insulation Material	Liquid Crystal Polymer .
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole, Through H.
Number of Circuits	8
Number Of Contacts	8
Number of Contacts	8
Number of Positions	8
Number of Positions Loa.	All
Number Of Rows	2
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -
Orientation	Right Angle
Overall Contact Length	-
Package Quantity	1
Part Status	Active
Pin Spacing	0.118 "
Pitch	3.00 mm (0.118"), 3.0mm
Pitch - Mating	0.118" (3.00mm)
Plating Material	Gold
Primary Type	Soft Shell
Product Header	Micro-Fit 3.0? Wire-to-.
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0, 43045 Se.
Shrouded/Unshrouded	Shrouded
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Style	Board to Cable/Wire
Termination	Solder, Surface Mount
Termination Method	Solder
Type	Right Angle Header
Voltage Rating	600V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	43045-0822	1.56	1	2246	MOLEX / WALDOM	1.56 @ 1
Waldom	MOLEX 43045-0822	1.59	35	9743	MOLEX	1.59 @ 35
Power and Signal Group	0430450822	1.7058	1440	58	Molex	1.7058 @ 1440
Zoro	G7770004	2.69	35	58	Molex	2.69 @ 35
us.rs-online.com	70091062	2.92	1	58	Molex Incorporated	2.92 @ 1
RS Delivers	821-5887	3.228	1	58	Molex	3.228 @ 1
