Molex 43045-0827

mpn0430450827
brandname: Molex
manufacturername: Molex

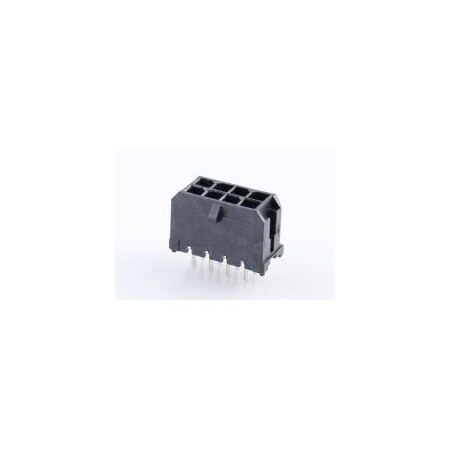

MOLEX 43045-0827 Header, 3.0MM, 8WAY

Brand: Molex
PartNumber: 43045-0827
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	43045-0827
Applications	Automotive, General Pur.
Base Product Number	043045
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.125" (3.18mm)
Contact Material	Brass
Contact Plating Thickne.	0.254 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	8.5 A
Current Rating (Amps)	8A
Description	CONN HEADER VERT 8POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM10684-ND
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Board Guide, Glow-Wire .
Flammability Rating	UL 94V-0
Hole Center to Center	3 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.390" (9.91mm)
Insulation Material	Liquid Crystal Polymer .
Manufacturer	Molex
Manufacturer Product Nu.	0430450827
Manufacturer Standard L.	15 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	8
Number of Contacts	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Orientation	Vertical
Overall Contact Length	-
Package	Tray
Package Quantity	1
Pitch	3.00 mm (0.118")
Pitch - Mating	0.118" (3.00mm)
Plating Material	Tin
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0 43045, 43.
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder, Surface Mount
Type	Vertical Header
Voltage Rating	600V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Avnet	0430450827	0.859	1	14953	Molex	0.859 @ 10
Waldom	MOLEX 43045-0827	0.86	65	15620	MOLEX	0.86 @ 65
Onlinecomponents.com	43045-0827	1.07	30	5153	Molex	1.07 @ 30
jensentools.com	10189306	1.15	1	14928	Molex	1.15 @ 10
NEP Electronics	43045-0827	1.1912	65	14928	Molex	1.1912 @ 65
Newark	92M1195	1.51	1	24938	MOLEX	1.51 @ 10
Digi-Key	3310208	1.746	1	25534	Molex	1.746 @ 10
TME	MX-43045-0827	1.94	1	111	MOLEX	1.94 @ 10
us.rs-online.com	70373251	2.07	1	100	Molex Incorporated	2.07 @ 10
RS Delivers	670-0431P	2.556	1	685	Molex	2.556 @ 10
Radwell	43045-0827	3.5	1	10	MOLEX	3.5 @ 10
Zoro	G4034883	103.35	65	10	Molex	103.35 @ 65
