Molex 41792-0511

mpn41792-0511
brandname: Molex Incorporated
manufacturername: Molex Incorporated

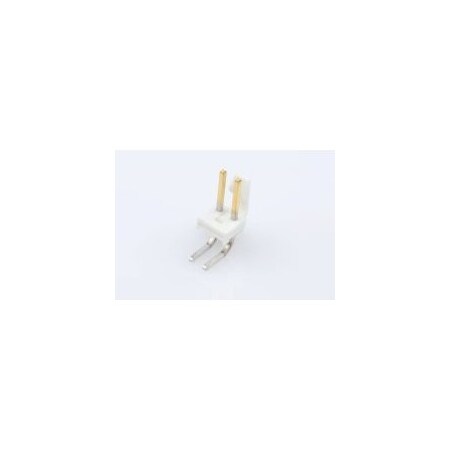

Molex Header Connector,PCB Mount,recept,2 Contacts,pin,0.156 Pitch,r Angle Pc Tail Terminal,Locking - 41792-0511

Brand: Molex
PartNumber: 41792-0511
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	041792
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.156" (3.96mm)
Contact Material	-
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 2POS 3..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM20994-ND
Family Name	KK 396
Fastening Type	Friction Lock
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	3.96 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.394" (10.00mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0417920511
Manufacturer Standard L.	21 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	235?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	2
Number of Contacts	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.156" (3.96mm)
Plating Material	Gold
Product Status	Active
Row Spacing - Mating	-
Series	41792 Series, KK396, 41.
Shrouding	Shrouded - 1 Wall
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Freelance Electronics	0417920511	0.24188	1	50		MOLEX	0.24188 @ 50
Onlinecomponents.com	41792-0511	0.32	1	17320		MOLEX / WALDOM	0.32 @ 50
Waldom	MOLEX 41792-0511	0.35	200	9498		MOLEX	0.35 @ 200
jensentools.com	10189117	0.47	1	9298		Molex	0.47 @ 50
us.rs-online.com	71456504	0.52	1	50		Molex Incorporated	0.52 @ 50
Newark	92M0718	0.714	1	8440		MOLEX	0.714 @ 50
Digi-Key	3309782	0.8	1	198		Molex	0.8 @ 50
Radwell	41792-0511	1.2	4400	50		MOLEX	1.2 @ 4400
AmazonTP	B07QLB3YTW	70.38	1	50	1	Molex / Waldom	70.38 @ 50
Zoro	G7920960	116.0	1	50		Molex	116.0 @ 50
