- mpn78213-1044
- brandname: Molex Incorporated
- manufacturername: Molex Incorporated

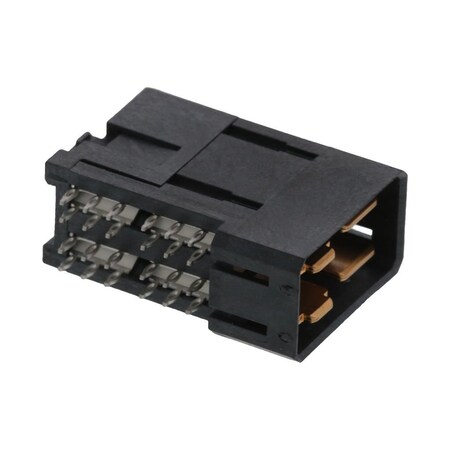

High Speed / Modular Connectors Impact Pwr 4Pr RA Hd Hdr PF .76AuLF 4Ckt
- PartNumber: 78213-1044
- PackageQuantity: 1
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 78213-1044 |
| Alternate Part No. | 538-78213-1044 |
| Base Product Number | 078213 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Style | Power |
| Connector Type | Header, Male Blades |
| Connector Usage | - |
| Contact Finish | Gold Plated, Gold |
| Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Layout, Typical | 4 Power |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Plating Thickne. | 0.762 ?m |
| Current Rating | 20 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER POWER 4POS . |
| Detailed Description | 4 Connector Header, Mal. |
| Digi-Key Part Number | WM10832-ND |
| Family Name | Impact |
| Features | - |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 5.2 mm (Mating Interfac. |
| Housing Material | Thermoplastic |
| Manufacturer | Molex |
| Manufacturer Part No. | 78213-1044 |
| Manufacturer Product Nu. | 0782131044 |
| Manufacturer Standard L. | 16 Weeks |
| Material | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0 |
| Max. Temp. | 85?C |
| Max. Voltage | 250V |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Board Edge, Through Hol. |
| Number of Circuits | 4 |
| Number of Columns | 2, - |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 85?C |
| Operating Temperature R. | - 55 C to + 85 C |
| Orientation | Right Angle |
| Package | Tray |
| Packaging | Tray |
| Part # Aliases | 0782131044 |
| Pitch | 2 mm, - |
| Plating Material | Gold |
| Product Category | High Speed/Modular Conn. |
| Product Status | Active |
| Product Type | Headers |
| Series | 78213 Series, 78213, Im. |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Temperature Range | -55 to 85 C |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole - Complian. |
| Termination | Press-Fit |
| Termination Style | Through Hole |
| Tradename | Impact |
| Voltage Rating | 250V, 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 01AH1690 | 3.72 | 1 | 405 | | MOLEX | | 3.72 @ 1 |
| Arrow | 78213-1044 | 6.39 | 1 | 145 | | Molex | | 6.39 @ 1 |
| Avnet | 0782131044 | 8.185 | 384 | 272 | | Molex | | 8.185 @ 384 |
| Waldom | MOLEX 78213-1044 | 8.32 | 10 | 15 | | MOLEX | | 8.32 @ 10 |
| Hotenda | H716822 | 11.49 | 1 | In Stock | | Molex | | 11.49 @ 1 |
| Mouser | 538-78213-1044 | 12.84 | 1 | 135 | | Molex | | 12.84 @ 1 |
 | Digi-Key | 2789940 | 15.71 | 1 | 865 | | Molex | | 15.71 @ 1 |
| us.rs-online.com | 70714246 | 17.51 | 384 | In Stock | | Molex Incorporated | | 17.51 @ 384 |
 | swatee.com | 78213-1044 | 20.85 | 1 | 84 | | Molex | | 20.85 @ 1 |
 | Zoro | G705926725 | 72.73 | 1 | In Stock | | Molex | | 72.73 @ 1 |
