Omron X-10GQ22-B

B008L5RTDW

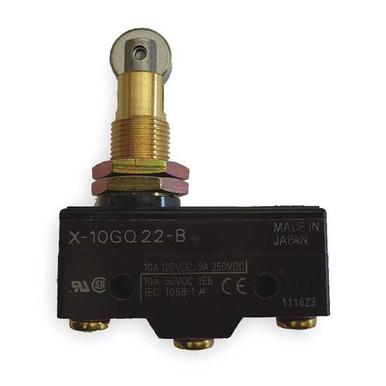

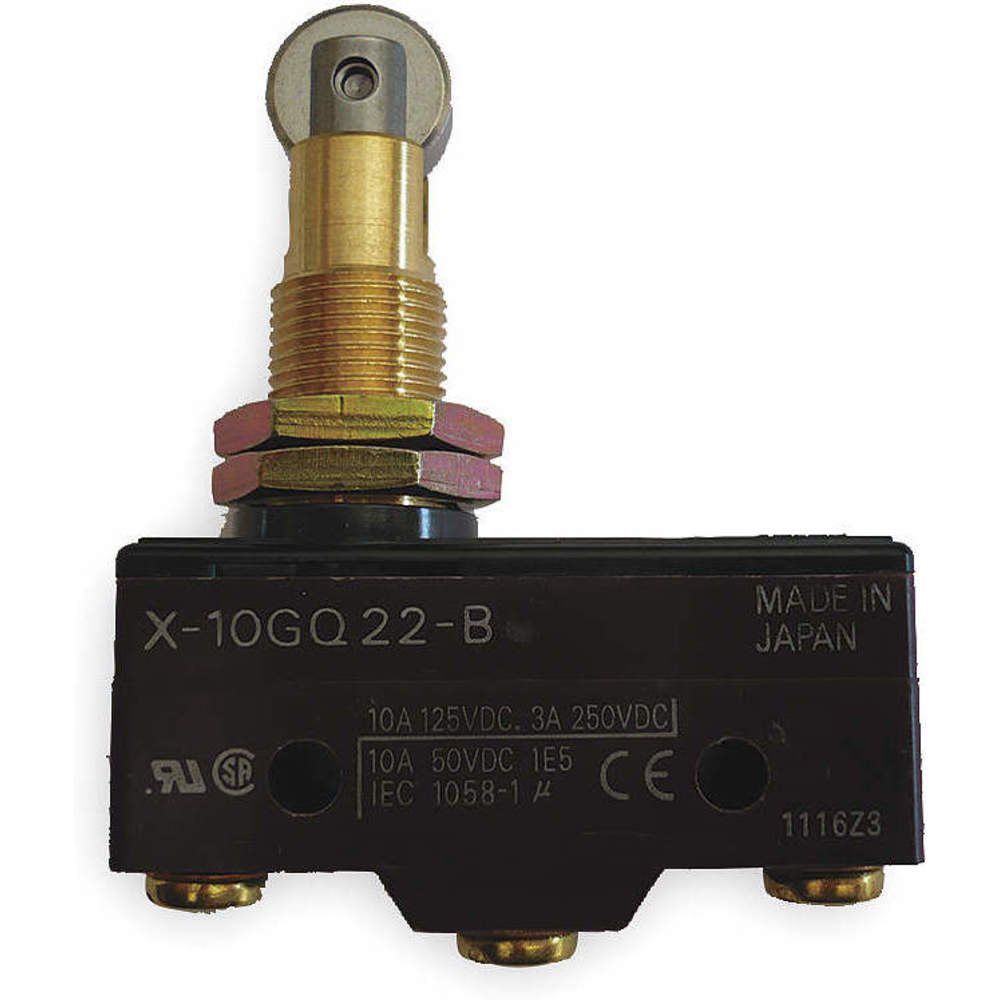

Omron X-10GQ22-B General Purpose Basic Switch, Built In Magnetic Blowout, Screw Terminal, Panel Mount Roller Plunger, 0.9mm Contact Gap, 10A at 125VDC Rated Current

Omron X-10GQ22-B General Purpose Basic Switch, Built In Magnetic Blowout, Screw Terminal, Panel Mount Roller Plunger, 0.9mm Contact Gap, 10A at 125VDC Rated Currentzoom

Attributes

Key Value
Actuator Length1.35"
Actuator TypeRoller Plunger
Actuator Type - Snap Ac.Panel Mount, Plunger, R.
Alternate Mfr Part Numb.X10GQ22B
Base Product NumberX-10G
Basic Actuator Type - S.Plunger
BrandOmron
CategorySwitches
CircuitSPDT
Conductance Current Rat.10
Contact FormSPDT
Contact Form- SwitchesSPDT
Contact MaterialPure Silver
Current Rating10A
Current Rating (Amps)10A (DC)
Current Stock22
DC Contact Rating - Sna.10 A @ 120 V, 10 A @ 12.
Depth0.69"
Depth - Snap Action Swi.0.69 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Panel Mount
Differential Travel0.007" (0.18mm), 0.007 .
Digi-Key Part NumberZ11312-ND
Electrical Connection -.Screw
Electrical Life100,000 Cycles
Features-
Head TypePlunger
Height1.01"
Height - Snap Action Sw.1.01 in
Housing MaterialPhenolic
Ingress ProtectionIP00
International ShippingNo
ItemSnap Switch, Industrial.
Length1.94"
Lever Actuator Length -.Not Applicable
Main Body External Dime.49.2
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.X-10GQ22-B
Manufacturer Standard L.26 Weeks
Max. Pretravel0.035 in
Mechanical Life1,000,000 Cycles
MfrOmron Automation and Sa.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypePanel Mount
MpnX-10GQ22-B
Number of Circuits - Sn.1
Operating Force510gf, 18.00 oz, 18 oz
Operating Position1.313" (33.4mm)
Operating Temp. Range-13 Degrees to 176 Deg.
Operating Temperature-25?C ~ 80?C
Over Travel0.140 in, 0.14 in
Overtravel0.141" (3.6mm)
PackageTray
Part StatusActive
Pretravel0.035" (0.9mm)
Product StatusActive
Release Force114gf, 4.02 oz
SeriesX, X Series
SKUZO-G1531704
Snap Action Switch TypeIndustrial Snap Action .
StandardsUL/CSA/LLOYD/SEV/IEC 10.
SubCategoryElectrical
Switch FunctionOn-Mom
Terminal TypeScrew
Termination StyleScrew Terminal
UPC4536854244636
Voltage Rating (DC)(V)125
Voltage Rating - DC30 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comX10GQ22B17.5115OMRON INDUSTRIAL17.5 @ 1
grainger.caWWG2KRP322.057244341In StockOMRON0.1322.05724434 @ 1
RS Delivers752-978825.1761In StockOmron25.176 @ 1
thumbzoomkempstoncontrols.co.ukX-10GQ22-B25.4308861In StockOmron25.430886 @ 1
thumbzoomCarlton Bates Company4031232670328.061In StockOMRON28.06 @ 1
thumbzoomsustainablesupply.comC118124528.961In StockOmron0.1328.96 @ 1
thumbzoomZoroG153170429.99143Omron0.1329.99 @ 1
Airline HydraulicsOMRON X-10GQ22-B35.02157Omron35.02 @ 1
thumbzoomDigi-Key37000639.018Omron Automation and Safety39.0 @ 1
thumbzoomNewark07C874839.05143OMRON INDUSTRIAL AUTOMATION39.05 @ 1
Master ElectronicsX10GQ22B39.65150Omron Automation39.65 @ 1
thumbzoomMisumi USAX-10GQ22-B40.111In Stock14OMRON40.11 @ 1
thumbzoomsimsupply.comZO-G153170442.88122Omron42.88 @ 1
thumbzoomRaptor SuppliesAC2JTT46.5488011In StockOMRON46.548801 @ 1
us.rs-online.com7035526349.7312Omron Automation49.73 @ 1
