"Orion (Knight Electronics, Inc.)" OD9225-24HSS

mpnOD9225-24HSS
brandname: Orion (Knight Electronics, Inc.)
manufacturername: Orion (Knight Electronics, Inc.)

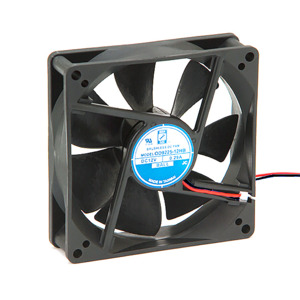

Orion (Knight Electronics, Inc.) OD9225-24HSS FAN; 92 MM X 92 MM ; 25 MM; 24 VDC; 52CFM ; 35 DB; SEALED SLEEVE; 0.15A; DC (1 piece)

Orion (Knight Electronics, Inc.) OD9225-24HSS FAN; 92 MM X 92 MM ; 25 MM; 24 VDC; 52CFM ; 35 DB; SEALED SLEEVE; 0.15A; DC (1 piece)

zoom

Brand: "Orion (Knight Electronics, Inc.)"
PartNumber: OD9225-24HSS
Model: OD9225-24HSS
PackageQuantity: 1
Manufacturer: Orion (Knight Electronics, Inc.)
Label: Orion (Knight Electronics, Inc.)

Attributes

Key	Value
Air Flow	52.0 CFM (1.46m?/min), .
Approval Agency	cURus, TUV
Approximate Size	3.6 x 3.6 in. ; 92 x 92.
Approximate Thickness	1 in. ; 26 mm
Base Product Number	OD9225
Bearing Type	Sealed Sleeve, Sleeve
Category	Fans, Thermal Management
Configuration	Square
Current Rating	0.15 A
Current Rating (Amps)	0.150A
Current, Ratings	0.15 A
Description	FAN AXIAL 92.5X25MM 24V.
Detailed Description	Fan Tubeaxial 24VDC Squ.
Digi-Key Part Number	1053-1283-ND
Dimensions	3.6 x 3.6 x 1 . ; 92 x .
Fan Type	Tubeaxial, DC
Features	-
Ingress Protection	-
Lifetime @ Temp.	-
Manufacturer	Orion Fans
Manufacturer Product Nu.	OD9225-24HSS
Manufacturer Standard L.	19 Weeks
Material	Plastic
Material - Blade	Polybutylene Terephthal.
Material - Frame	Polybutylene Terephthal.
Maximum Operating Tempe.	70 C
Mfr	Orion Fans
Minimum Operating Tempe.	-10 C
Noise	35.0dB
Noise Level	35 dBA
Nominal Voltage	24 V
Operating Temperature	14 ~ 158?F (-10 ~ 70?C)
Package	Box
Power (Watts)	3.4 W
Power Rating	3.4 W
Product Status	Active
Rotation	CCW
RPM	2900 RPM
Series	OD9225, OD9225 Series
Size	3.6 x 1 (92 x 25) In. (.
Size / Dimension	Square - 92.5mm L x 92..
Speed	2900 RPM
Static Pressure	0.13 in H2O (32.4 Pa), .
Termination	Wire Leads, 2 Wire Leads
Type	Square
Voltage - Rated	24VDC
Voltage Range	-
Voltage Rating	24 V
Weight	-
Width	25.00mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	OD9225-24HSS	4.6	1	105		ORION FANS		4.6 @ 10
	Hotenda	H1900698	5.064	1	90		Orion Fans		5.064 @ 10
	Heilind Electronics	OD9225-24HSS	6.1	1	13		ORION FANS		6.1 @ 10
	us.rs-online.com	70103436	7.85	1	27		Orion Fans		7.85 @ 10
	jensentools.com	10141373	7.95	1	10		Orion Fans		7.95 @ 10
	Newark	89AH2639	8.45	1	10		ORION FANS		8.45 @ 10
	Digi-Key	2621188	8.494	1	462		Orion Fans		8.494 @ 10
	AmazonSC	B00M28IVP4	14.82	1	10		Orion		14.82 @ 10
