- mpnPNF18-6F-3K
- brandname: Panduit Corp
- manufacturername: Panduit Corp

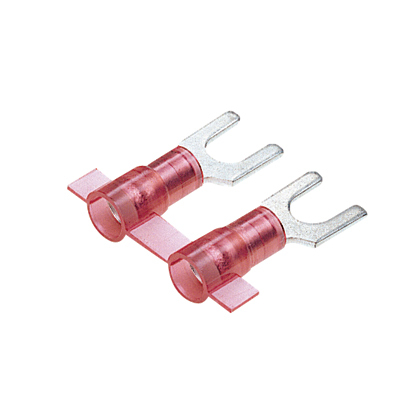

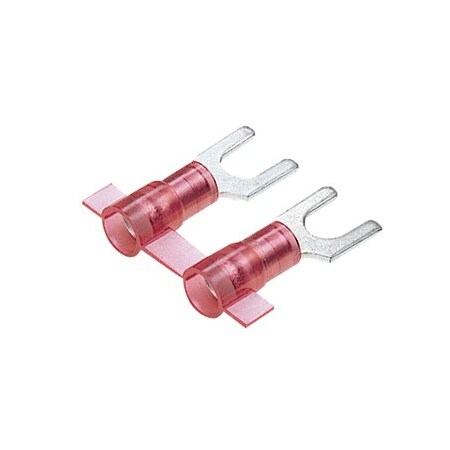

Panduit PNF18-6F-3K
- Brand: Panduit
- PartNumber: PNF18-6F-3K
- Model: PNF18 6F 3K
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Alternate Parts | PNF18-6F |
| Approvals | CSA, UL |
| Barrel Type | Funnel |
| Base Product Number | PNF18 |
| Category | Connectors, Interconnec. |
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Family Series | Panduit Terminals, Reel. |
| Features | Serrated Termination |
| Gross Weight | 8.7 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.090" ~ 0.145" (2.29mm. |
| Insulation Material | Nylon |
| Item Number | PNF18-6F-3K |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length - Overall | 0.780" (19.81mm) |
| Length - Ring Center to. | - |
| Length - Termination | - |
| Manufacturer | Panduit |
| Manufacturer Part Number | PNF18-6F-3K |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Tape & Reel (TR) |
| Package Quantity | 3,000 |
| Packaging | Reel |
| Plating Material | Tin |
| Product Series | Reel Smart System |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Term?, Pan-Term |
| Standard Package | 3,000 |
| Stud Size | #6 |
| Stud/Tab Size | 6 Stud |
| Terminal Material | Copper |
| Terminal Type | Spade/Fork, Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.140" (3.56mm) |
| UPC Code | 074983811359 |
| Volts | 600 V |
| Width - Outer Edges | 0.300" (7.62mm) |
| Wire Gauge | 18-22 AWG |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.25 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NEP Electronics | PNF18-6F-3K-CT | 0.255 | 20 | 5897 | | Panduit | | 0.255 @ 20 |
 | Galco | PNF18-6F-3K-PNDT | 0.39 | 3000 | 256 | | Panduit | 8.7 | 0.39 @ 3000 |
| iodParts | PNF18-6F-3K | 0.417 | 3000 | 9000 | | Panduit | | 0.417 @ 3000 |
 | French Gerleman | PANDPNF186F3K | 0.44 | 1 | 256 | | Panduit | | 0.44 @ 1 |
 | Platt.com | 0709636 | 0.46 | 1 | 256 | | Panduit | | 0.46 @ 1 |
| Airline Hydraulics | PANDUIT PNF18-6F-3K | 0.47 | 1 | 256 | | Panduit Corp | | 0.47 @ 1 |
| us.rs-online.com | 71091651 | 0.52921 | 4 | 256 | | Panduit | | 0.52921 @ 4 |
| Digi-Key | 6579494 | 0.58 | 1 | 5060 | | Panduit Corp | | 0.58 @ 1 |
| steinerelectric.com | 263542 | 394.05 | 1 | 256 | | Panduit | | 394.05 @ 1 |
 | turtle.com | PAN PNF18-6F-3K | 457.21 | 1 | 256 | | Panduit | | 457.21 @ 1 |
 | Carlton Bates Company | 07498381135 | 1110.0 | 1 | 256 | | PANDUIT | | 1110.0 @ 1 |
 | gordonelectricsupply.com | PNF18-6F-3K | 1224.0 | 1 | 256 | 12 | PANDUIT | | 1224.0 @ 1 |
 | alldataresource.com | PAN-PNF18-6F-3K | 1241.52 | 1 | In Stock | | Panduit | | 1241.52 @ 1 |
 | Zoro | G2762535 | 1309.17 | 1 | 256 | 106 | Panduit | | 1309.17 @ 1 |
| Newark | 66H3028 | 1393.31 | 1 | In Stock | | PANDUIT | | 1393.31 @ 1 |
