Red Hat 8267G007

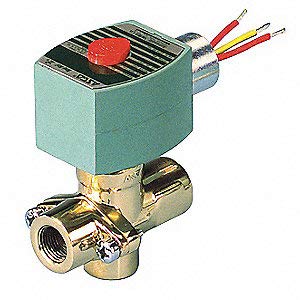

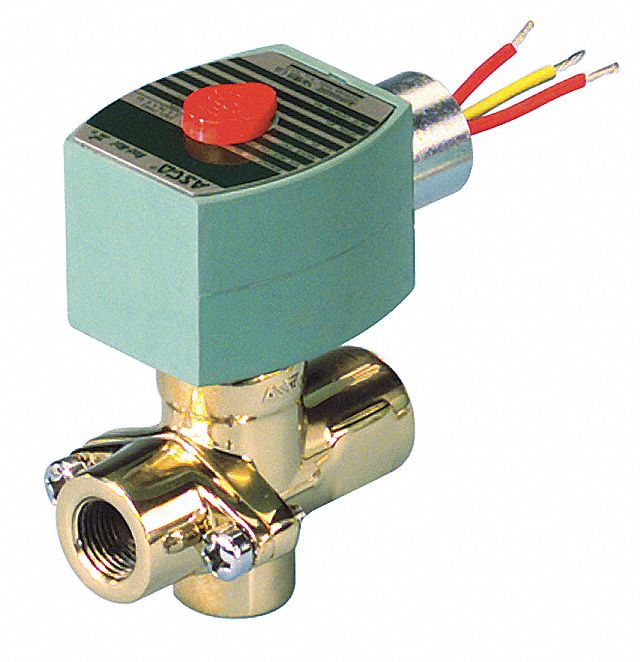

Steam Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed Valve Configuration

Steam Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed Valve Configurationzoom

Attributes

Key Value
Ambient Temp. Range125 Degrees F Degrees F
Body Material - ValvesBrass
Center Line Pipe Center.3-21/64"
Coefficient of Volume4.50
Coil EnclosureWatertight No Junction .
Coil Insulation ClassH
Electrical Connections1/2" Conduit w/18" Leads
Environmental Rating - .Indoor, Outdoor
Hz60
ItemSolenoid Valve
Max. Fluid Temp. Steam250 Degrees F
Max. Operating Pressure.15 PSI
Media - ValvesSteam
Min. Operating Pressure.0 PSI
NEMA Rating1, 2, 3, 3S, 4, 4X
Orifice Dia.3/8"
Overall Height4-5/16"
Overall Length3-7/16"
Overall Width2-1/16"
Pipe Size - Valves1/2 in
Solenoid Valve Product .Steam Solenoid Valve
Valve ConfigurationNormally Closed
Valve Ways and Positions2-Way/2-Position
Voltage120
Watts16.1

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG4EMD2502.707751721In StockREDHAT2.12502.70775172 @ 1
thumbzoomsustainablesupply.comC1935994506.111In StockRedhat2.12506.11 @ 1
