CAI - SQUARE D 8501KPR12V24

B07CMC1BXV

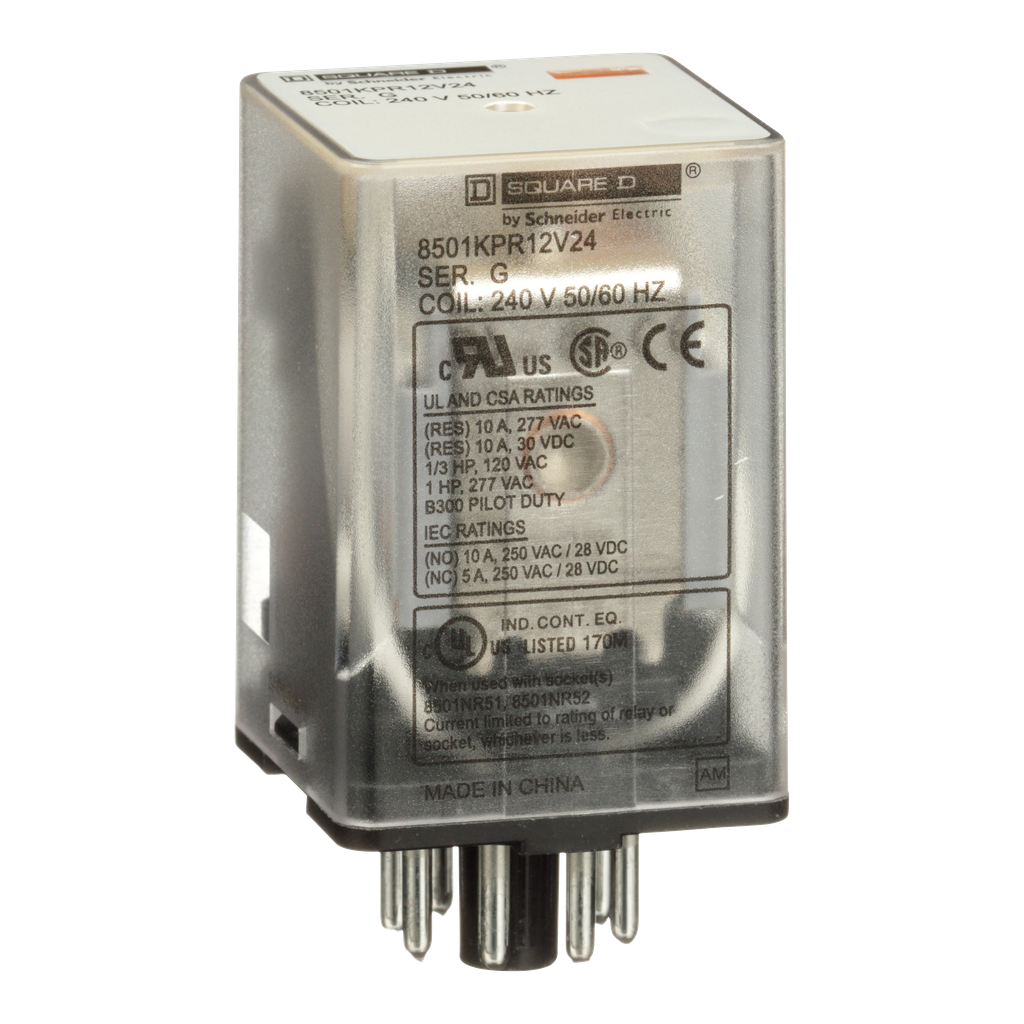

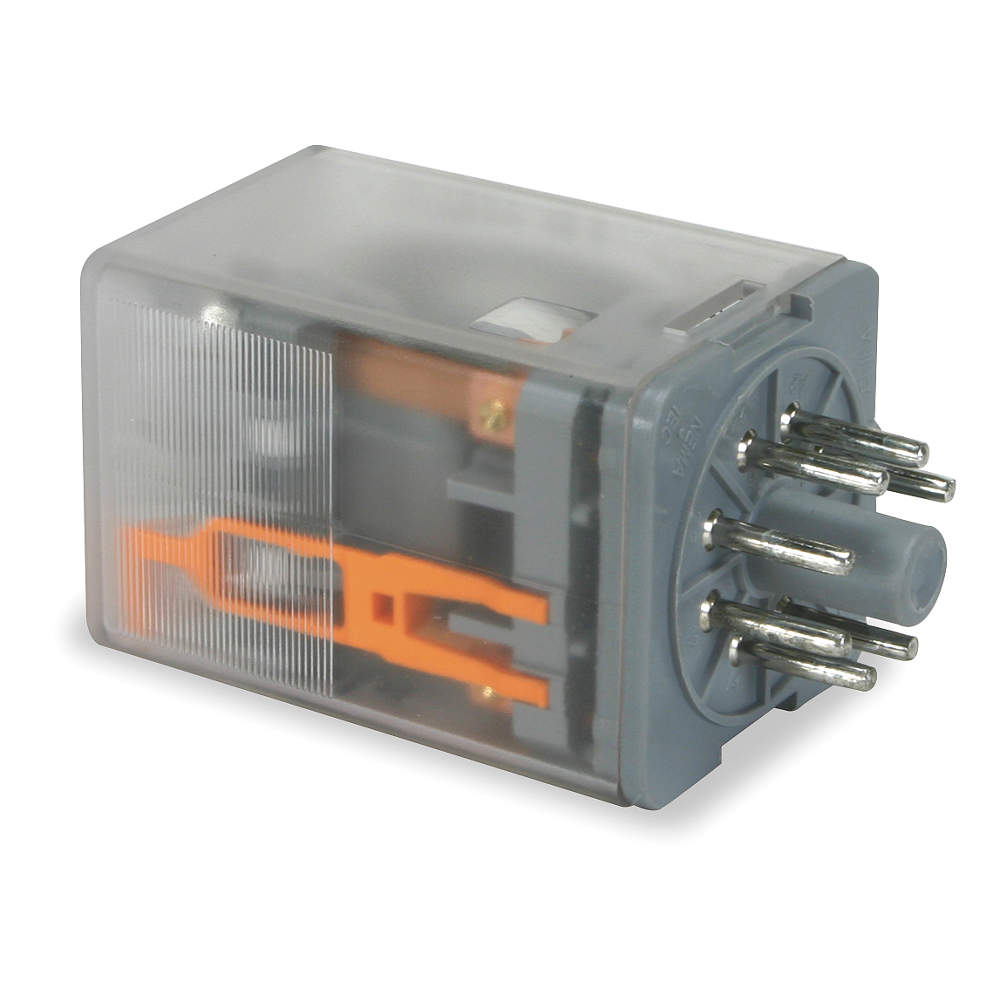

Plug In Relay, 8 Pins, Octal, 240Vac

Plug In Relay, 8 Pins, Octal, 240Vaczoom

Attributes

Key Value
[Uc] Control Circuit Vo.240 V AC
AC Contact Rating - Rel.10A @ 277V
Ambient Air Temperature.-40-131 ?F
Application8501NR52;8501NR51
ApprovalsCE, CSA, UL
Base TypeOctal
Base Type - Plug In Rel.Octal
Body Depth - Relay1.4 in
Body Height - Relay2.1 in
Body Width - Relay1.4 in
BrandSquare D
California Proposition .Nickel compounds, which.
Catalog Number8501KPR12V24
CategoryRelays
China Rohs RegulationX
Circularity ProfileN/A
Coil Insulation-
Coil TypeNon Latching
Coil Voltage240 V AC, 240VAC, 240 V.
Coil Volts240V AC
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Nickel, Silver A.
Contact Rating10A @ 277VAC/30VDC
Contact Rating (Current)10 A
Contact Voltage Rating300 VAC
ContactsDPDT
Contacts Materialsilver alloy (AgNi)
Control Typewithout test button
Control Voltage240
Country of OriginCN - China, China
Country of Origin (subj.China
Current Rating10 A
DC Contact Rating - Rel.10A @ 28V
Depth1.4 in., 1.4 in
DescriptionPLUG IN RELAY, TYPE KP,.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501KPR12V24-ND
ECCNEAR99
EnclosurePlastic
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Relays, 8501K .
Features-
FunctionGeneral Purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0.21 lbs
GTIN00785901334187
Height2.66 in., 2.66 in
HP @ 120V1/3 hp
HP @ 240V1/2 hp
HP Rating1 hp 277 V AC
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number8501KPR12V24
Item Typerelay
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number534927
Manufacturer Product Nu.8501KPR12V24
Manufacturer Standard L.7 Weeks
Materialsilver alloy (AgNi)
Maximum Switching Volta.300 V AC || 30 V DC
MfrSchneider Electric
Mountingsocket, Plug In
Mounting - RelayPlug In
Mounting Supportsocket
Mounting TypeSocket Mount, Socketable
Must Operate Voltage-
Must Release Voltage-
Net Weight0.21 lbs
Nominal Coil Voltage240 VAC
Number of Pins8
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40?C ~ 55?C
Operating Time20 ms - pick-up || 20 m.
Overall Height - Relay2.6 in
PackageBox
Pins8
Power Consumption - Rel.3 VA
Primary TypePower Relays
Product CertificationsUL Listed || UL Recogni.
Product Compatibility8501NR52 || 8501NR51
Product Or Component Ty.relay
Product Series8501K
Product StatusActive
Published Coil Voltage240 VAC
Push To TestNo
Range Of Product8501K
Rated Power In Hp1 hp 277 V AC
Rating @ 220/240/277 VAC10 A
Rating @ 24/28/30 VDC10 A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Relay TypeElectromechanical, Gene.
Release Time20 ms
RoHSYes
Safety GuidedNo
Seal Rating-
SeriesSquare D, 8501K Series
Shape Of Pintubular
SocketMfr. No. 8501NR51 or 85.
Socket CodeA
StandardsCE Marked, CSA Certifie.
Status IndicatorNo
Switch FunctionDPDT
Switching Voltage300VAC, 30VDC - Max
Termination8-Pin Octal, Round Pin
Termination StylePlug In, 8 Pin (Octal)
Time Cycle20 ms - pick-up || 20 m.
TypeGeneral Purpose
UNSPSC39122325
UPC785901334187
UPC Code785901334187
Use With8501NR52 || 8501NR51
Voltage Rating240 V
Width1.4 mm, 1.4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwell8501KPR12V2443.411In StockSCHNEIDER ELECTRIC43.41 @ 1
thumbzoomGalco8501KPR12V24-SQD44.7911Square D0.2144.79 @ 1
standardelectricsupply.com231906350.031In StockSquare D50.03 @ 1
thumbzoomblackhawksupply.com8501KPR12V2450.51In StockSquare D50.5 @ 1
us.rs-online.com7131541754.111In StockSquare D54.11 @ 1
Newark41Y930356.541In StockSCHNEIDER ELECTRIC56.54 @ 1
thumbzoomgordonelectricsupply.com8501KPR12V2457.591In Stock10SQUARE D57.59 @ 1
thumbzoomZoroG323303658.98142Square D0.258.98 @ 1
thumbzoomsustainablesupply.comC268187659.231In StockSquare D0.259.23 @ 1
thumbzoommayerelectric.comSQD8501KPR12V2459.631In StockSQUARE D59.63 @ 1
AmazonTPB07CMC1BXV60.731In Stock2Square D60.73 @ 1
thumbzoommidwestapplianceparts.com8501KPR12V24-SQ-P69.291In StockSquared69.29 @ 1
thumbzoomcrescentelectric.com30492871.51150Square D71.51 @ 1
thumbzoomDigi-Key1661437380.641In StockSchneider Electric80.64 @ 1
Graybar2566849784.10081In StockSquare D (Schneider Electric)84.1008 @ 1
thumbzoomNational Supply Network6968296190.651In StockSquare D90.65 @ 1
thumbzoomRaptor SuppliesAF9FTF129.5679061In StockSQUARE D129.567906 @ 1
