Schneider Electric ZB5AW0B11

B000WL4GFM

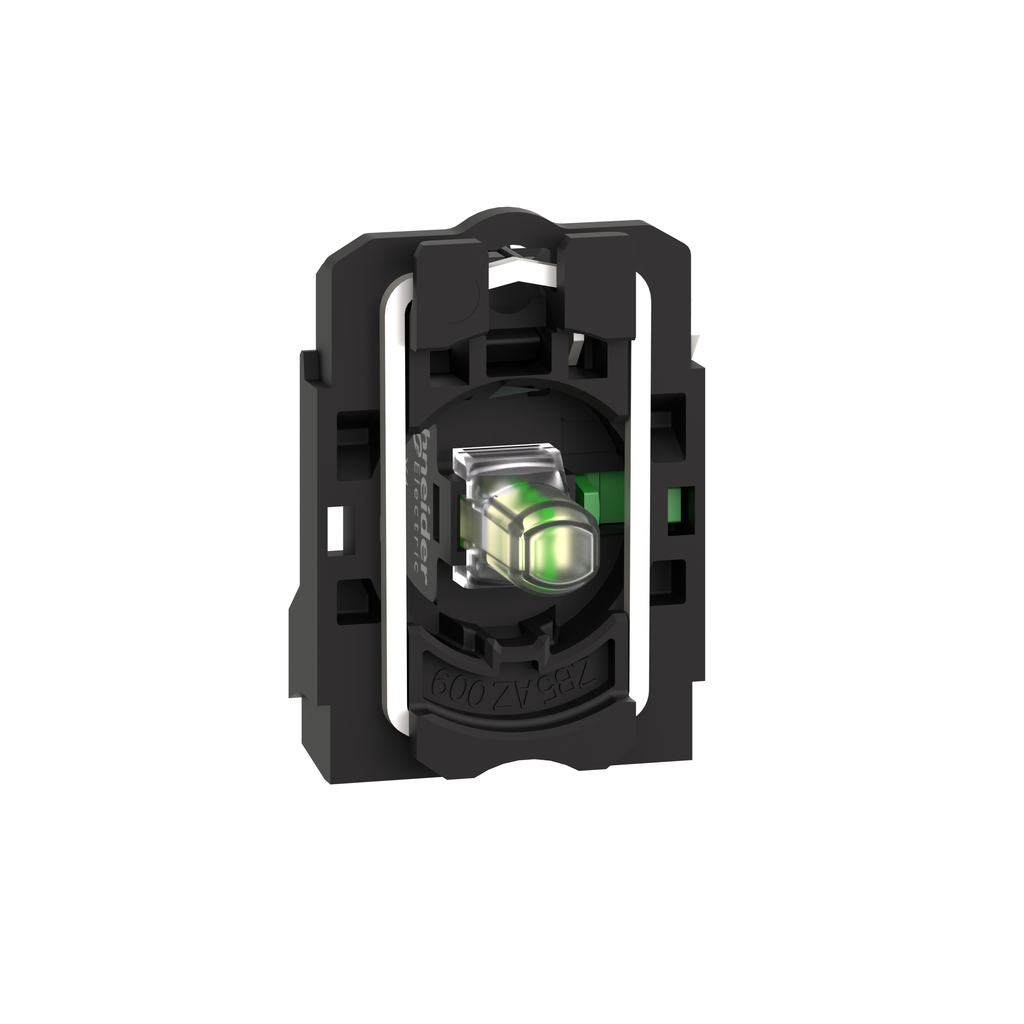

SCHNEIDER ELECTRIC ZB5AW0B11 model Name 1NO Led Lamp Module & Contact Block,White,For Use with Plastic,ZB5 Series

SCHNEIDER ELECTRIC ZB5AW0B11 model Name 1NO Led Lamp Module & Contact Block,White,For Use with Plastic,ZB5 Serieszoom

Attributes

Key Value
(Select First, Then App.Schneider Electric, Har.
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.6 kV IEC 60947-1
[Us] Rated Supply Volta.24 V AC/DC 50/60 Hz
Actionslow-break
Alternate Mfr Part Numb.7469197
Ambient Air Temperature.-40-70 ?C
Ambient Air Temperature.-40-70 ?C
Average Life100000 hr
Basic MaterialPlastic
BrandSchneider Electric
Bulb Baseintegral LED
Cad Overall Depth32 mm
Cad Overall Height42 mm
Cad Overall Width30 mm
California Proposition .Lead and lead compounds.
Catalog NumberZB5AW0B11
CategorySwitches
China Rohs RegulationX
CircuitSPST-NO
Circularity ProfileENVEOLI1710010EN
ColorWhite
ConnectionScrew clamp terminals,
Contact Configuration1 NO
Contact Form1NO
Contact Operationslow-break
Contact Rating10A @ 600V AC/DC, A600 .
Contact Rating @ Voltage6A @ 120VAC, 550mA @ 12.
Contacts Materialsilver alloy (Ag/Ni)
Contacts Type And Compo.1 NO
Contacts Usagestandard
Country of OriginFrance
Current Consumption18 mA
DescriptionHARMONY XB5, LIGHT BLOC.
Detailed DescriptionConfigurable Contact Bl.
Device Presentationbasic sub-assemblies
Device Short NameZB5
Digi-Key Part Number4008-ZB5AW0B11-ND
Electrical Durability1000000 cycles, AC-15, .
Electrical Shock Protec.class II IEC 60536
Electromagnetic Emissionclass B IEC 55011
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB4 / XB5 Family
Fixing Collar MaterialPlastic
For Use WithPlastic, ZB5 Series
Head Typestandard
Hz50/60 Hz
IndicatorINTEGRAL LED,PROTECTED .
Insulation600 V 3)EN 60947-1
IP Rating66
ItemLamp Module and Contact.
Item Typecomplete body/contact a.
Lamp Module TypeFull Voltage
Lamp Module Voltage24V AC/DC
Lamp TypeLed
Lamp Voltage24V AC/DC
Light Block Supplydirect
Light Sourceuniversal LED
Light Source ColourWhite
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.ZB5AW0B11
Manufacturer Standard L.5 Weeks
Mechanical Durability5000000 cycles
Mercury FreeYes
MfrSchneider Electric
NEMA Contact Rating Des.A600/Q600
NEMA Rating1, 12, 13, 2, 3, 4, 4X
Net Weight0.032 kg
Operating Force2.3 N NO changing elect.
Operating Temperature-40-70 A Degrees C
Operating Torque0.05 N.m NO changing el.
Operating Travel2.6 mm NO changing elec.
PackageBox
Positive Openingwithout
Primary TypeLamp Block and Holder
Product CertificationsUL Listed || LROS (Lloy.
Product Or Component Ty.complete body/contact a.
Product StatusActive
Protective TreatmentTH
Range Of ProductHarmony XB5
Reach RegulationReference contains Subs.
RequiresSwitch Body
Resistance To Electroma.10 V/m IEC 61000-4-3
Resistance To Electrost.6 kV on contact (on met.
Resistance To Fast Tran.2 kV IEC 61000-4-4
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
SeriesHarmony XB5, Harmony XB.
Service Life100000 h at rated volta.
Shape Of Screw Headcross Philips no 1 || c.
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Signalling Typesteady
Size22 mm, 30 MM,32 MM,42 MM
Special Featurescomplete body/contact a.
Standard1000000 CYCLES, AC-15, .
StandardsCE, CSA, UL, IEC 60947-.
Sub BrandZB5
Supply Voltage Limits19.2-30 V DC || 21.6-26.
Surge Withstand1 kV IEC 61000-4-5
Sustainable Offer StatusGreen Premium product
Terminal ConnectionScrew Clamp terminals
Terminals Description I.(13-14)NO
TerminationScrew
Termination StyleScrewless Clamp
Tightening Torque0.8-1.2 N.m IEC 60947-1
TypeSteady Signal
UPC785901387732
UPC Code785901387732
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Voltage24V AC/DC
Voltage Rating24 V, 24 V AC/DC 50/60 .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers746-919720.46120Schneider Electric20.46 @ 1
thumbzoomZoroG258234355.49173Schneider Electric0.0655.49 @ 1
thumbzoommostelectric.comZB5AW0B1160.411In StockSQUARE D/TELEMECANIQUE60.41 @ 1
thumbzoommayerelectric.comSQDZB5AW0B1163.91In StockSQUARE D0.070463.9 @ 1
thumbzoomgordonelectricsupply.comZB5AW0B1164.091In Stock10SQUARE D64.09 @ 1
us.rs-online.com7038084767.7511Schneider Electric67.75 @ 1
thumbzoomDigi-Key1661313375.461In StockSchneider Electric75.46 @ 1
thumbzoomNewark80C852579.051In StockSCHNEIDER ELECTRIC79.05 @ 1
AmazonTPB000WL4GFM93.781In Stock5SCHNEIDER ELECTRIC (SCIUE)93.78 @ 1
thumbzoomNational Supply Network6967538796.911In StockSchneider Electric96.91 @ 1
thumbzoomcrescentelectric.com159265123.231In StockSchneider Electric123.23 @ 1
