SIEMENS 5SY61507

mpn5SY61507
brandname: Siemens
manufacturername: Siemens

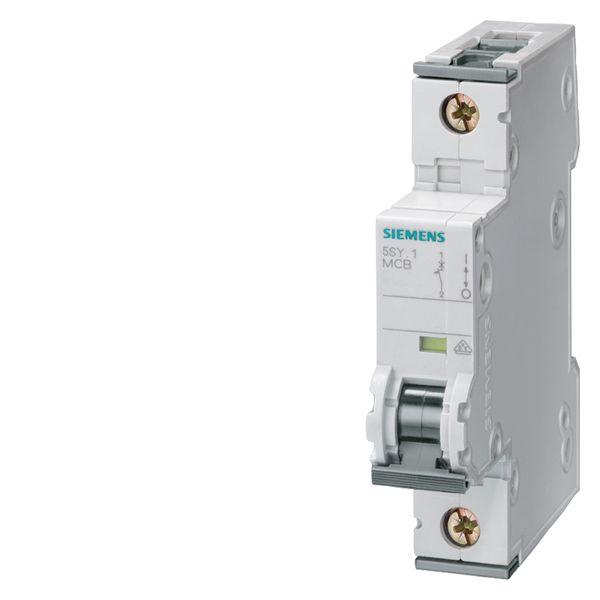

Siemens 5SY61507 Supplementary Protector, UL 1077 Rated, 1 Pole Breaker, 50 Ampere Maximum, Tripping Characteristic C, DIN Rail Mounted

Siemens 5SY61507 Supplementary Protector, UL 1077 Rated, 1 Pole Breaker, 50 Ampere Maximum, Tripping Characteristic C, DIN Rail Mounted

zoom

Brand: SIEMENS
PartNumber: 5SY61507
Model: 5SY61507
PackageQuantity: 1
Binding: Misc.
Manufacturer: Siemens
Label: Siemens

Attributes

Key	Value
AC Voltage Rating	230/400V AC
Adapter Rating:	N/A
Amperage Rating	50
Amps	50 A
Application	Industrial
Category	Circuit Breakers
Circuit Breaker Actuator	Toggle
Circuit Breaker Mountin.	DIN Rail
Class:	C
Connection type	Line/Load/Screw
Connection:	Identical wire screw co.
Country of Origin	DE
Curve Type	C
DC Voltage Rating	Not Rated
Depth	3.01 in
Dimensions	90 mm H x 18 mm W x 70 .
Element:	N/A
Enclosure Type	IP20
Features	Quick Assembly System
Frame Size	1
Frequency Rating	50
Frequency Rating:	50 Hz
Interrupt Rating	5
Interrupt Rating:	5kA
Item	IEC Supplementary Prote.
Length	3.53 in
Length (Straight Wirewa.	3.53 in
Manufacturer	Siemens Industry, Inc.
Material:	N/A
Max. AIR Rating	5kA at 230/400V AC
Max. Wire Size	4 AWG
Min. Wire Size	14 AWG
Mounting	DIN Rail
Mounting type	DIN Rail
Mounting:	On standard mounting ra.
Number of Poles	1
Phase	1
Response Time:	N/A
Series	5SY6
Short Circuit Rating:	5kA
Size:	N/A
Standard:	UL 1077, CSA 22.2 NO. 2.
Standards	CSA 22.2, EN 60898-1/-2.
Sub Brand:	SENTRON
Temperature Rating (Deg.	-25 to 45
Terminal Connection	Screw Clamp
Trip Type	Thermal Magnetic
Type	Miniature
Type Of Indicators:	N/A
Type:	Miniature Circuit Break.
UNSPSC	39121601
UPC	754554967264
Voltage Rating	480
Voltage Rating:	480 V
Width	0.69 in
Wire Size	14 to 4

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	industrialzone.com	5SY61507	29.21	7	In Stock		Siemens	1.0	29.21 @ 7
	standardelectricsupply.com	2236250	42.0	1	In Stock		Siemens		42.0 @ 1
	Dale-Electric	5SY61507	44.46	1	In Stock		Siemens Industry, Inc.		44.46 @ 1
	steinerelectric.com	711380	56.65	1	In Stock		Siemens		56.65 @ 1
	Zoro	G7503544	60.99	1	In Stock		Siemens		60.99 @ 1
	turtle.com	ITE 5SY61507	77.13	1	In Stock		Siemens		77.13 @ 1
	sustainablesupply.com	C1186509	84.82	1	In Stock		Siemens	0.35	84.82 @ 1
