SKF NJ 314 ECJ/C3

B007VFNGOY

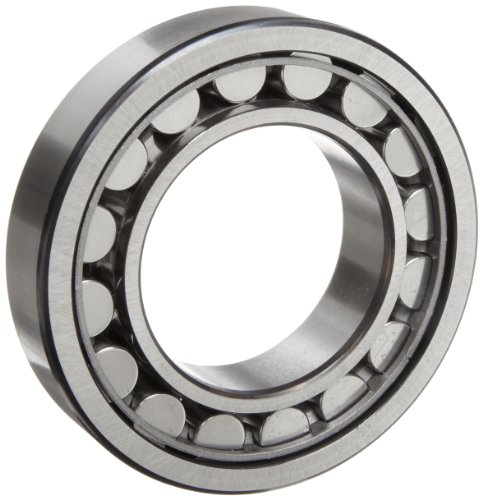

SKF NJ 314 ECJ/C3 Cylindrical Roller Bearing, Single Row, Removable Inner Ring, Flanged, Straight Bore, High Capacity, C3 Clearance, Steel Cage, Metric, 70mm Bore, 150mm OD, 35mm Width

SKF NJ 314 ECJ/C3 Cylindrical Roller Bearing, Single Row, Removable Inner Ring, Flanged, Straight Bore, High Capacity, C3 Clearance, Steel Cage, Metric, 70mm Bore, 150mm OD, 35mm Widthzoom

Attributes

Key Value
Bearing TypeCylindrical Roller Bear.
Bore2.756 Inch | 70 Millime.
Bore Dia.70 mm
Bore Diameter70 mm
Bore Diameter Tolerance+0/-0.015 mm
Bore ProfileStraight
Bore TypeCylindrical
Cage MaterialSteel
Category - BDICylindrical Roller Bear.
Dynamic Load Rating235.77 kN
EAN7316577725318
Harmonized Tariff Code8482.50.00.00
Housing Fillet Radius2 mm
Inch - MetricMetric
Inner Diameter70 mm
Inner Ring Outside Dia..3.831 in
Inner Ring Outside Dia..97.3 mm
Inner Ring Outside Diam.97 mm
Internal ClearanceC3, C3-Loose
Long Description70MM Bore; Straight Bor.
Manufacturer Item NumberNJ 314 ECJ/C3
Manufacturer NameSKF
MaterialBearing Steel
Minimum Buy QuantityN/A
NounBearing
Number of Raceway Ring .Single Row
Number of Rows of Rolle.Single Row
O.D. (in)5 8/9
Other FeaturesHigh Capacity | 1 Rib I.
Outer Diameter150 mm
Outer Ring Inside Dia. .5.0 in
Outer Ring Inside Dia. .127 mm
Outer Ring Inside Diame.126 mm
Outside Dia.150
Outside Dia. Tolerance+0/-.018mm
Outside Diameter5.906 Inch | 150 Millim.
Outside Diameter Tolera.+0/-0.018 mm
Overall Width35 mm
Precision ClassRBEC 1 | ISO P0
Product Group - BDIB04144
ProfileComplete with Outer and.
RelubricatableYes
RetainerYes
Retaining Ring DiameterNot Applicable
Ring NutNo
Roller MaterialSteel
Rolling ElementCylindrical Roller Bear.
RPM5600 RPM
SeparableInner Ring - One Side
Series3 Series
Shaft Fillet Radius2 mm
Shoulder Height (In.)5.4331 in
Shoulder Height (mm)138 mm
Snap RingNo
Special FeaturesHigh Radial Load Carryi.
Static Load Capacity (L.51,300 lb
Static Load Rating227.76 kN
Tolerance+0/-.015mm
UNSPSC31171547
UPC Code7316577725318
Weight / Kilogram2.877
Weight / LBS6.338
Width1.378 Inch | 35 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express1421826268.886134641In StockSKF6.3294268.88613464 @ 1
thumbzoomMRO Supply315538282.521In StockSKF Bearing282.52 @ 1
us.rs-online.com73238567342.281In StockSKF Bearings342.28 @ 1
thumbzoomMisumi USANJ 314 ECJ/C3379.91In Stock18SKF379.9 @ 1
thumbzoomZoroG8090223394.991In StockSkf6.34394.99 @ 1
RS Delivers207-8701414.541In StockSKF414.54 @ 1
motionindustries.com04336427456.321In StockSKF456.32 @ 1
thumbzoombscsource.com43342617499.091In StockSKF499.09 @ 1
