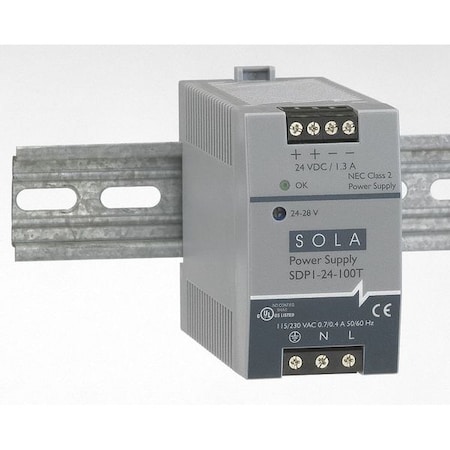

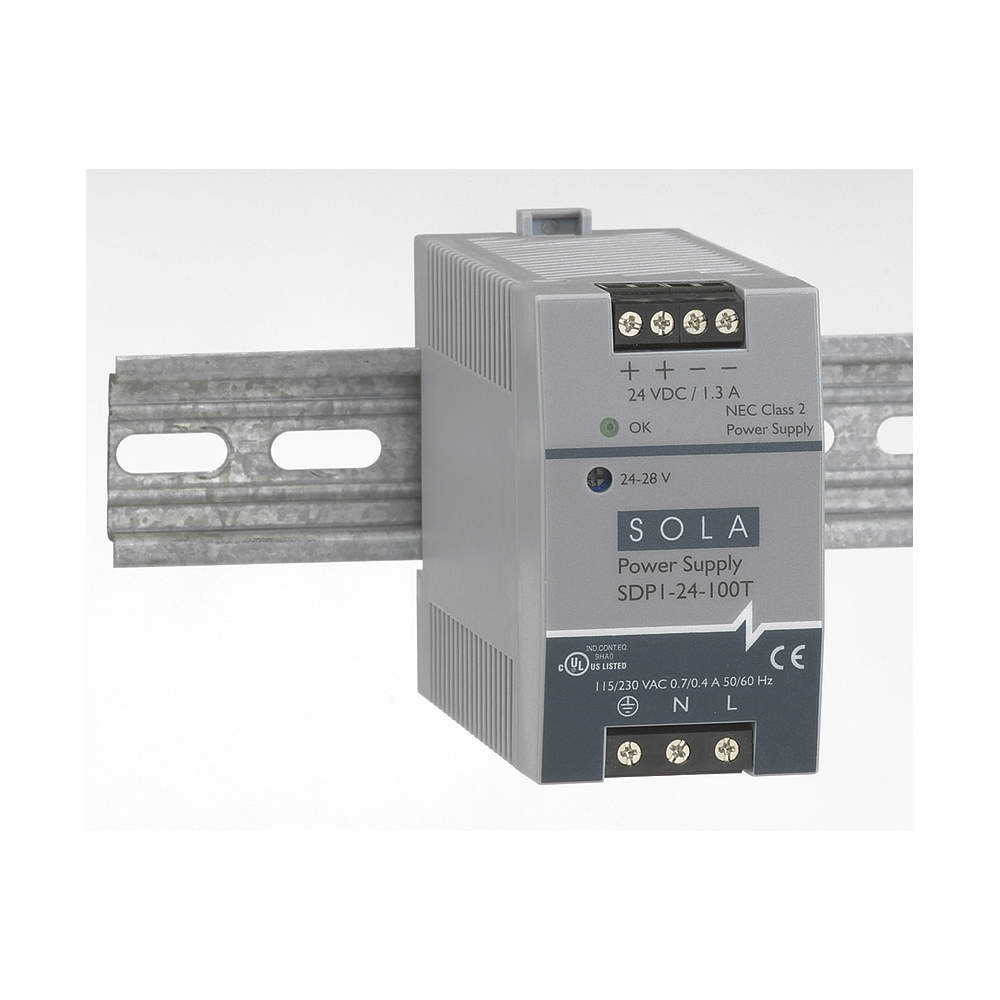

SOLA-HD SDP1-24-100T

mpnSDP1-24-100T
brandname: Sola/Hevi-Duty
manufacturername: Sola/Hevi-Duty

SolaHD/Emerson Industrial Automation - SDP1-24-100T - AC/DC DIN Rail Power Supply (PSU), Compact, 1 Output, 36.4 W, 24 VDC, 1.3 A

Brand: SOLA-HD
PartNumber: SDP1-24-100T
Model: SDP1-24-100T
PackageQuantity: 1
Manufacturer: SolaHD / Emerson Industrial Automation
Label: SolaHD / Emerson Industrial Automation

Attributes

Key	Value
AC Voltage - Input	85 ~ 264 VAC
Amps	0.250
Application	Industrial Control, Pro.
Applications	Hazardous Locations, In.
Approval Agency	CE, cULus, cURus
Approvals	CE, cULus, cURus, UL508.
Base Product Number	SDP1
Brand	SolaHD
Cable Size	20 to 12 Solid or Stran.
Case Material	Plastic Case
Catalog Number	SDP1-24-100T
Category	Power Supplies - Extern.
Configuration	Enclosed
Country of Origin	Taiwan, Province Of Chi.
Current - Output (Max)	1.3A
Current Rating	1.3 A
Current Stock	97
DC Voltage - Input (Max)	375V
DC Voltage - Input (Min)	90V
Depth	3.58 in
Description	AC/DC DIN RAIL SUPPLY 2.
Digi-Key Part Number	2106-SDP1-24-100T-ND
Dimensions	91 mm L x 45 mm W
Efficiency	83%
Efficiency %	83 %
Encapsulated	No
Enclosed	Yes
Enclosure	Class 1, IP20
Environmental Conditions	90 RH Humidity Range
Family Series	SolaHD Power Supplies, .
Features	Adjustable Output, Low .
Frequency	47 to 63 Hz
Frequency Rating	47/63
Gross Weight	0.65 lbs
Height	2.95, 2.95 in, 2.95" (7.
Hold Up Time	Greater Than 25 msec
Hz	47 to 63 Hz, 43 to 67 Hz
In-stock	217
In. Voltage	85-264
Input Frequency	47-63 Hz
Input Type	AC or DC
Input Voltage	85 to 264 V AC, 100 VAC.
Input Voltage (AC)	86-264 VAC
Input Voltage Range	85-264 VAC
Input Volts-Auto-Ranging	No
International Shipping	No
IP Rating	20
Item	Dc Power Supply
Item Number	SDP1-24-100T
Item Type	SDP Low Power DIN Rail .
Lead Time	Expected to ship in 1-2.
Length	0.9
Made in USA	No
Manufacturer	SolaHD
Manufacturer Part Number	SDP124100T
Manufacturer Product Nu.	SDP1-24-100T
Manufacturer Standard L.	12 Weeks
Material	Molded Plastic, Plastic
Maximum Operating Tempe.	60 ?C
Mfr	SolaHD
Minimum Load Required	-
Minimum Operating Tempe.	-10 ?C
Mounting	DIN Rail, Panel, Din Ra.
Mounting Type	DIN Rail Mount, Din Rail
Mpn	SDP124100T
NEMA Rating	1
Net Weight	0.65 lbs
Nominal Input Voltage (.	120 VAC, 208 VAC, 240 V.
Nominal Output VDC	24 VDC
Number of Outputs	1
Number of Phases	Single
Operating Temp. Range	-10 Degrees to 60 Degr.
Operating Temperature	14-140 ?F, -10?C ~ 70?C.
Operation	Switching
Out. Voltage	26 VDC
Output Amps	1.3 A, 1.3
Output Current	1.3 A
Output Current (Channel.	1.3 A
Output Noise	Less than 50 mV, Less T.
Output Power	33.8 W
Output VDC	22.5-28.5 VDC
Output Voltage	24 to 28V DC, 26 VDC
Output Voltage (Channel.	24 V
Output Voltage Adj.	Yes
Overload Protection	Yes
Overvoltage Protection	Yes
Package	Bulk
Parallel Operation	No
Phase	1
Phase (Input)	1
Phase - Electrical	1, Single
Power	30 W
Power (Watts)	31W
Power Factor Correction	No
Power Rating	100 W, 30W
Primary Type	AC-DC
Product Categories	DC DC Non-Isolated - Li.
Product Header	SDP? Low Power DIN Rail.
Product Series	SDP
Product Status	Active
Remote On/Off Control	No
Remote Sensing	No
RoHS	No
RoHs Status	Rohs
Series	SDP Series, SDP
Short Circuit Protection	Yes
Size / Dimension	3.58" L x 1.77" W x 2.9.
SKU	ZO-G3204214
Special Features	PowerBoost ; Over Volta.
Standard	UL (CANADA AND US), UL .
Standards	UL, cUL, CE, Class 2 NF.
Status Indicator	Green DC OK Signal
Style	Switching
SubCategory	Electrical
Temp. Range	-10 to 70?C
Type	Industrial
UPC	783472151615
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Voltage - Output 5	-
Voltage - Output 6	-
Volts AC Range	85-264
Volts DC Range	90-375
Width	0 in, 1.77 in, 1.77, 3.8

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Carlton Bates Company	78347215161	95.29	1	In Stock		SOLAHD		95.29 @ 1
LCOMP	78347215161	95.29	1	4		Sola/Hevi-Duty		95.29 @ 1
AmazonTP	B005T59SB8	100.78	1	In Stock	2	SOLA		100.78 @ 1
AmazonUNK	B005T59SB8	100.78	1	In Stock		SOLA		100.78 @ 1
Straight Road Electronics	SDP124100T	105.03	5	In Stock		Sola/Hevi-Duty		105.03 @ 5
MRO Supply	1011880	105.37	4	In Stock		SolaHD		105.37 @ 4
Zoro	G3204214	105.99	1	141		Solahd	0.5	105.99 @ 1
standardelectricsupply.com	346020	109.76	1	In Stock		Sola/Hevi-Duty		109.76 @ 1
Mouser	663-SDP1-24-100T	110.95	1	19		Sola/Hevi-Duty		110.95 @ 1
Walker Industrial	SDP124100T	111.71	1	In Stock	17	SolaHD		111.71 @ 1
Onlinecomponents.com	SDP1-24-100T	111.88	1	9		Sola/Hevi-Duty		111.88 @ 1
Platt.com	0453136	124.72	1	In Stock		Sola Hevi-Duty		124.72 @ 1
Digi-Key	10072031	125.21	1	2		SolaHD		125.21 @ 1
simsupply.com	ZO-G3204214	125.54	1	97		Solahd		125.54 @ 1
Newark	78K6122	132.82	1	99		SOLAHD		132.82 @ 1
Hawk Electronics	SDP124100T	134.9	1	In Stock		Sola HD		134.9 @ 1
kirbyrisk.com	528295	157.31	1	4		Solahd		157.31 @ 1
us.rs-online.com	70211371	159.2	1	224		SolaHD		159.2 @ 1
grainger.ca	WWG4DA90	167.18215404	1	In Stock		SOLAHD	0.5	167.18215404 @ 1
Galco	SDP1-24-100T-SOLA	183.89	1	1		SolaHD	0.65	183.89 @ 1
United Electric	168097	215.09	1	In Stock		SolaHD		215.09 @ 1
bscsource.com	SDP124100T	223.89	1	In Stock		Sola/Hevi-Duty		223.89 @ 1
Raptor Supplies	AD7AVC	224.9784225	1	In Stock		SOLA/HEVI-DUTY		224.9784225 @ 1
National Supply Network	64912041	229.51	1	In Stock		Sola/Hevi-Duty		229.51 @ 1
crescentelectric.com	48691	322.31	1	In Stock		SolaHD		322.31 @ 1
