Schneider Electric HDA261251

B00CONH8JC

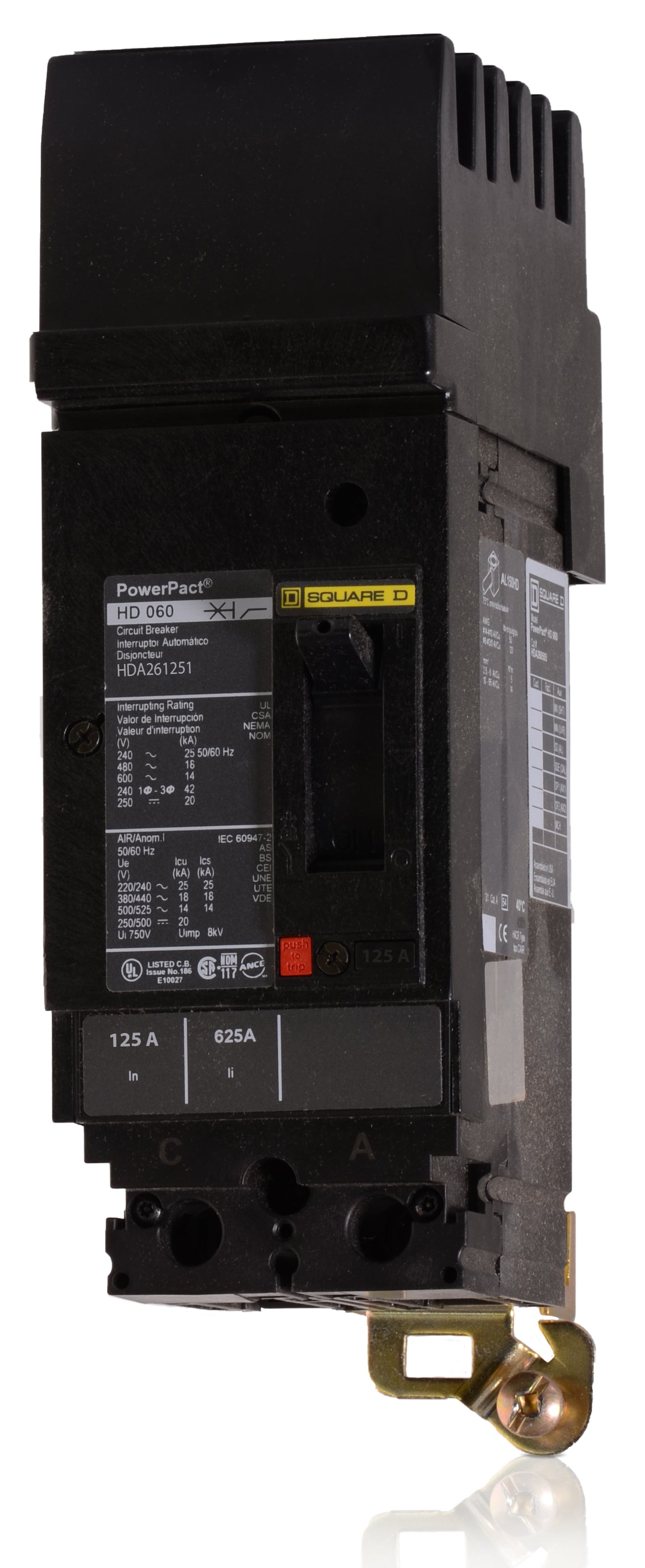

SCHNEIDER ELECTRIC HDA261251 Molded Case Circuit Breaker 600-Volt 125-Amp Electrical Box

SCHNEIDER ELECTRIC HDA261251 Molded Case Circuit Breaker 600-Volt 125-Amp Electrical Boxzoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage125
Amperage Rating125
Amps125 A
ApplicationHACR rated Applications.
ApprovalUL
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA261251
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States
Depth86 mm
Device Applicationdistribution
DisplayHDA261251 Circuit break.
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant with Exemptio.
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901419068
Height163 mm
High Amp Trip Setting1700 A
Interrupt Rating25 kA at 220/240V AC, 1.
Interrupting Rating18kAIC at 480V
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item Typecircuit breaker
Length4.8 IN
Line Rated Current125-125 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHDA261251
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAB
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDA
Special FeaturesI-LINE
StandardUL LISTED-CSA-IEC-CE
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range125 A,1700 A,900 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
Upc785901419068
UPC785901419068
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8NZV1.4860755167SQUARE D1.4860755 @ 1
simplybreakers.comHDA2612511029.991In StockSchneider Electric1029.99 @ 1
thumbzoomgordonelectricsupply.comHDA2612511255.016710SQUARE D1255.0 @ 1
thumbzoommayerelectric.comSQDHDA2612511299.531In StockSQUARE D4.841299.53 @ 1
Newark19K99941342.21In StockSQUARE D BY SCHNEIDER ELECTRIC1342.2 @ 1
thumbzoomRadwellHDA2612511400.0167SCHNEIDER ELECTRIC SQUARE D1400.0 @ 1
thumbzoomZoroG39795401427.9916725Square D10.01427.99 @ 1
thumbzoomsuperbreakers.comHDA2612511435.51In StockSquare D1435.5 @ 1
thumbzoomcrescentelectric.com1484214272.14167Square D by Schneider Electric4272.14 @ 1
