Schneider Electric HDA261254

B00CONHYEQ

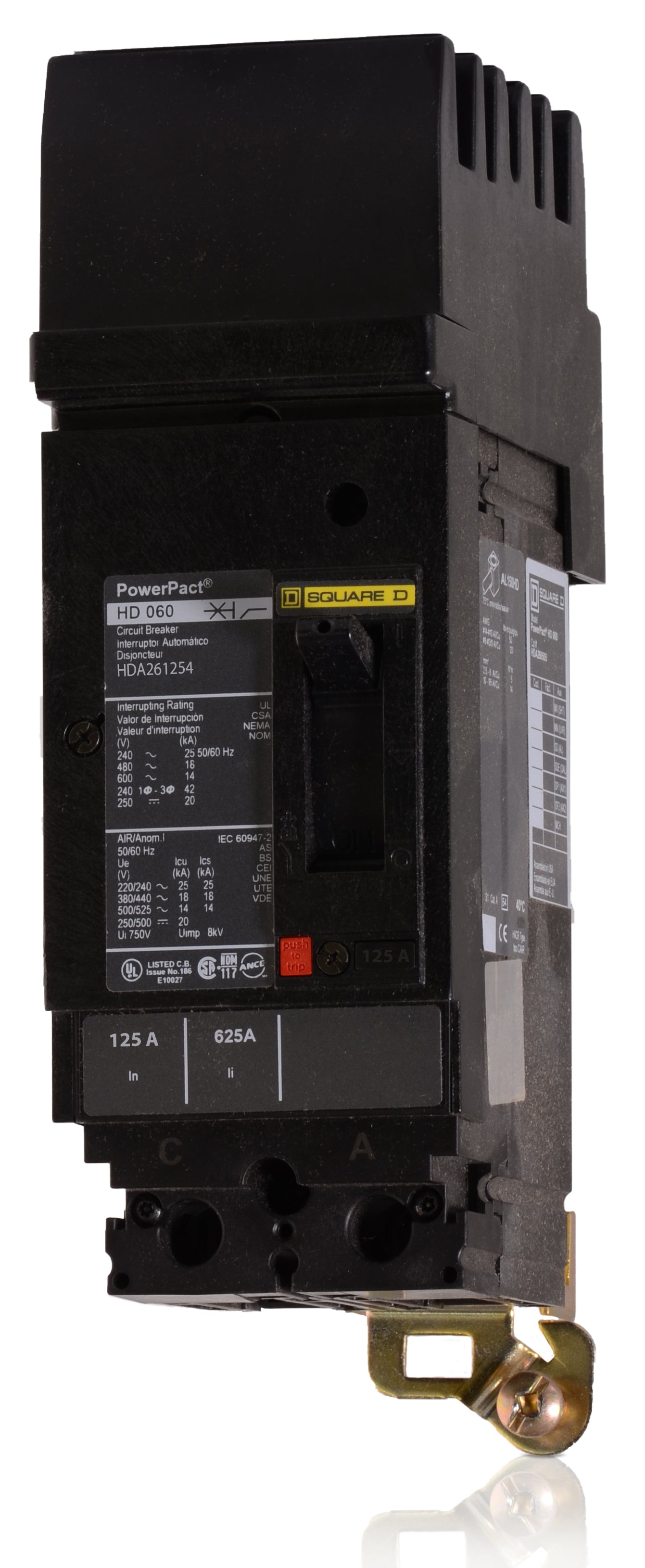

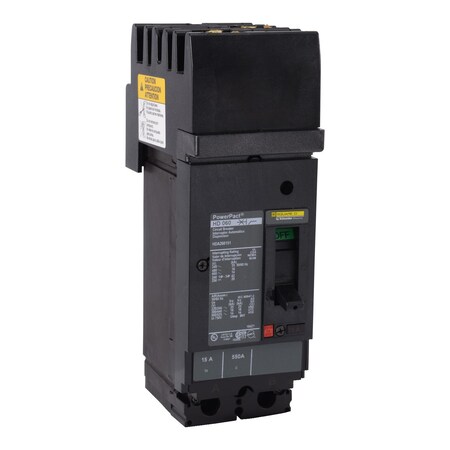

SCHNEIDER ELECTRIC HDA261254 Molded Case Circuit Breaker 600-Volt 125-Amp Electrical Box

SCHNEIDER ELECTRIC HDA261254 Molded Case Circuit Breaker 600-Volt 125-Amp Electrical Boxzoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage125
Amps125 A
ApplicationHACR rated Applications.
ApprovalUL
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI1311006EN
ColorBlack
Communication InterfaceModbus || Ethernet
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Depth86 mm
Device Applicationdistribution
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901912453
Height163 mm
High Amp Trip Setting1700 A
Interrupt Rating25 kA at 220/240V AC, 1.
Interrupting Rating18kAIC at 480V
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Line Rated Current125-125 A
Local Signallingswitched off (OFF) 1 tr.
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHDA261254
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Phase1
Phase ConnectionBC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rohs Exemption Informat.Yes
SeriesHDA
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip TypeThermal Magnetic
Trip Unit Technologythermal-magnetic
Upc785901912453
Utilisation Categorycategory A
Voltage600
Warranty18 months
Width104 mm
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8NZX1.4860755167SQUARE D1.4860755 @ 1
thumbzoomsuperbreakers.comHDA2612541307.451In StockSquare D1307.45 @ 1
thumbzoomZoroG39804321476.3516720Square D10.01476.35 @ 1
thumbzoommayerelectric.comSQDHDA2612541476.351In StockSQUARE D4.841476.35 @ 1
Newark19K99961680.741In StockSQUARE D BY SCHNEIDER ELECTRIC1680.74 @ 1
