Schneider Electric HDA261501

B00CONHAGS

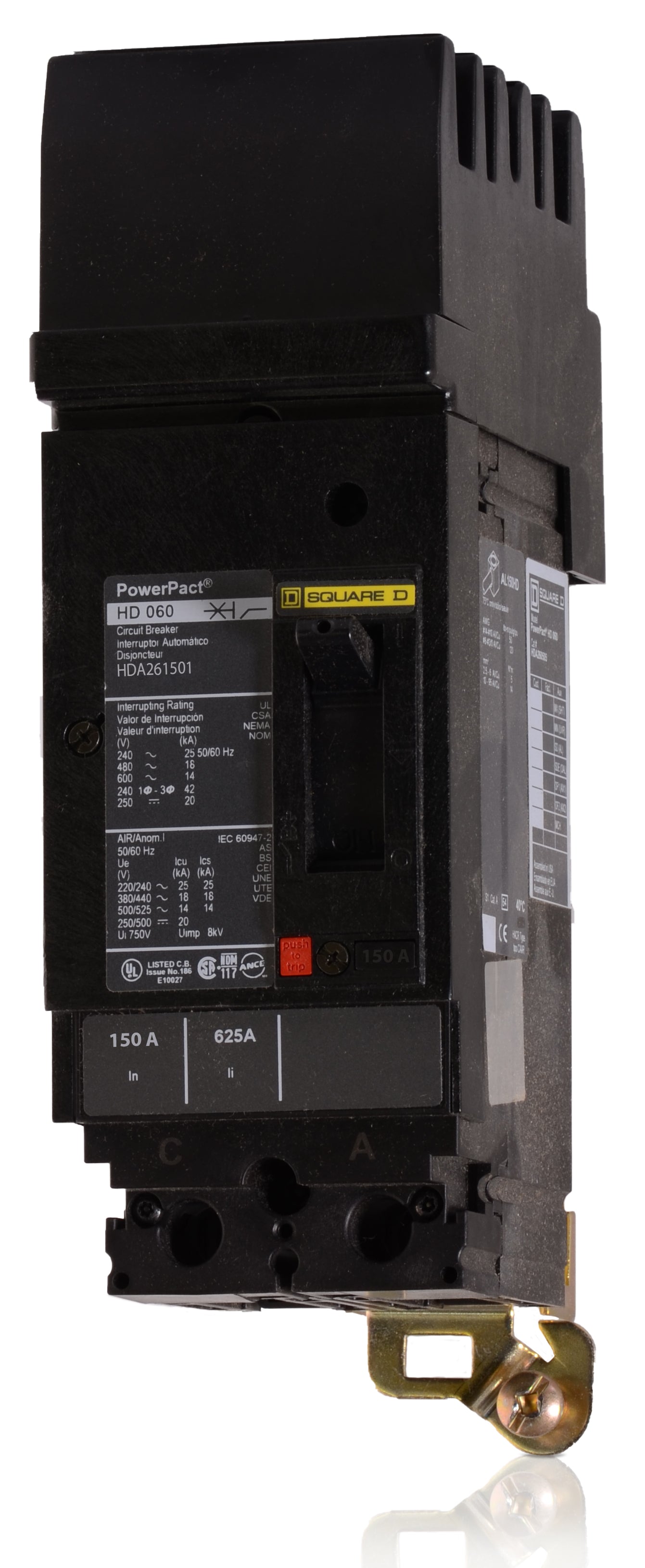

SCHNEIDER ELECTRIC HDA261501 Molded Case Circuit Breaker 600-Volt 150-Amp Electrical Box

SCHNEIDER ELECTRIC HDA261501 Molded Case Circuit Breaker 600-Volt 150-Amp Electrical Boxzoom

Attributes

Key Value
AC Voltage Rating690V AC
Amperage150
Amperage Rating150
Amps150 A
ApplicationHACR rated Applications.
ApprovalUL
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDA261501
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Country of OriginUnited States, US - Uni.
Current Rating150-150A
Depth86 mm
DisplayHDA261501 Circuit break.
ECCNEAR99
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901419099
Height163 mm, 3 in., 6.42
High Amp Trip Setting1700 A
Interrupt Rating14kA, 25 kA at 220/240V.
Interrupting Rating18kAIC at 480V
ItemCircuit breaker,PowerPa.
Item TypeCIRCUIT BREAKER
Length16 mm, 4.8 IN
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypeI-Line
MpnHDA261501
No. of Poles2
Number of Poles2
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAB
Poles2
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesHDA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPOWERPACT
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range150 A,1700 A,900 A
Trip TypeTHERMAL-MAGNETIC, Therm.
UNSPSC39121616
UPC785901419099
Upc785901419099
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comHDA261501999.991In StockSchneider Electric999.99 @ 1
thumbzoomgordonelectricsupply.comHDA2615011255.01In Stock10SQUARE D1255.0 @ 1
thumbzoomRadwellHDA2615011400.011SCHNEIDER ELECTRIC SQUARE D1400.0 @ 1
thumbzoomsuperbreakers.comHDA2615011435.512Square D1435.5 @ 1
Newark19K99981480.741In StockSQUARE D BY SCHNEIDER ELECTRIC1480.74 @ 1
thumbzoomZoroG39802311507.291In Stock25Square D10.01507.29 @ 1
Graybar251006171547.53761In StockSquare D (Schneider Electric)1547.5376 @ 1
thumbzoomRaptor SuppliesAG8NZY1600.8496921In StockSQUARE D1600.849692 @ 1
thumbzoomcrescentelectric.com1637854272.141In StockSquare D by Schneider Electric4272.14 @ 1
