Schneider Electric HDA261505

B00CONHLH6

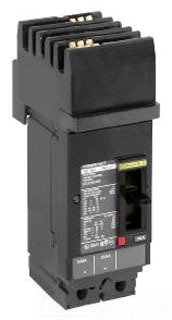

SCHNEIDER ELECTRIC HDA261505 Molded Case Circuit Breaker 600-Volt 150-Amp Electrical Box

SCHNEIDER ELECTRIC HDA261505 Molded Case Circuit Breaker 600-Volt 150-Amp Electrical Boxzoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage (Molded Case B.150 Amp
Amperage Rating150
ApplicationPROVIDES OVERLOAD AND S.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA261505
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ComponentMolded Case Circuit Bre.
ConnectionAWG 14...AWG 3/0 ALUMIN.
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating150-150A, 150 A
Depth86 mm
Device Applicationdistribution
DisplayHDA261505 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FrameD
Frame TypeH Frame
Frame Type (Molded Case.H Frame
Height163 mm, 3 in., 6.42
Interrupt Code (Molded .D Interrupt Rating
Interrupt Rating25kA@240VAC ; 18kA@480V.
Interrupt Rating (Molde.18 kA 480 Volt, 25 kA 2.
Ip Degree Of Protectionfront cover IP40 IEC 60.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current150-150 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSquare D, Schneider Ele.
Maximum Voltage (Molded.250 VDC, 600 VAC
Mercury FreeYes
Mounting (Molded Case B.I-Line
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2, 2 Pole
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase ConnectionCA
Poles (Molded Case Brea.Two Pole
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range150 A,1700 A,900 A
Trip Typethermal-magnetic
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
UPC785901558354
UPC Code785901558354
Utilisation Categorycategory A
Voltage Rating250 V DC-600 V AC, 600 .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHDA2615051255.01In Stock10SQUARE D1255.0 @ 1
thumbzoomRadwellHDA2615051400.01In StockSCHNEIDER ELECTRIC SQUARE D1400.0 @ 1
thumbzoommayerelectric.comSQDHDA2615051950.761In StockSQUARE D4.841950.76 @ 1
Newark20K00022052.251In StockSQUARE D BY SCHNEIDER ELECTRIC2052.25 @ 1
thumbzoomAllied Electronics709529402267.541In StockSquare D2267.54 @ 1
rspsupply.comSCHNEIDER HDA2615052331.341In StockSchneider Electric2331.34 @ 1
Graybar251471023337.66721In StockSquare D (Schneider Electric)3337.6672 @ 1
thumbzoomcrescentelectric.com415194272.141In StockSquare D by Schneider Electric4272.14 @ 1
