CAI - SQUARE D QO124M100P

B07J2RDB8T

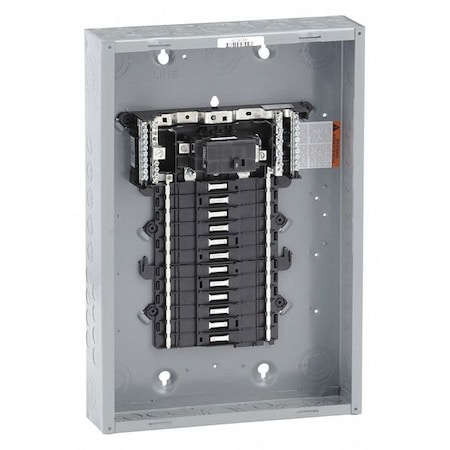

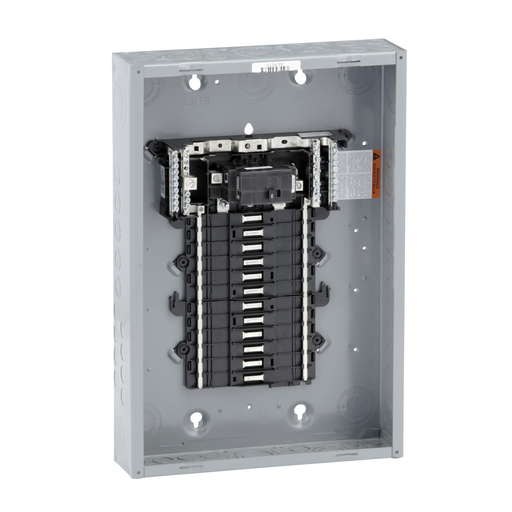

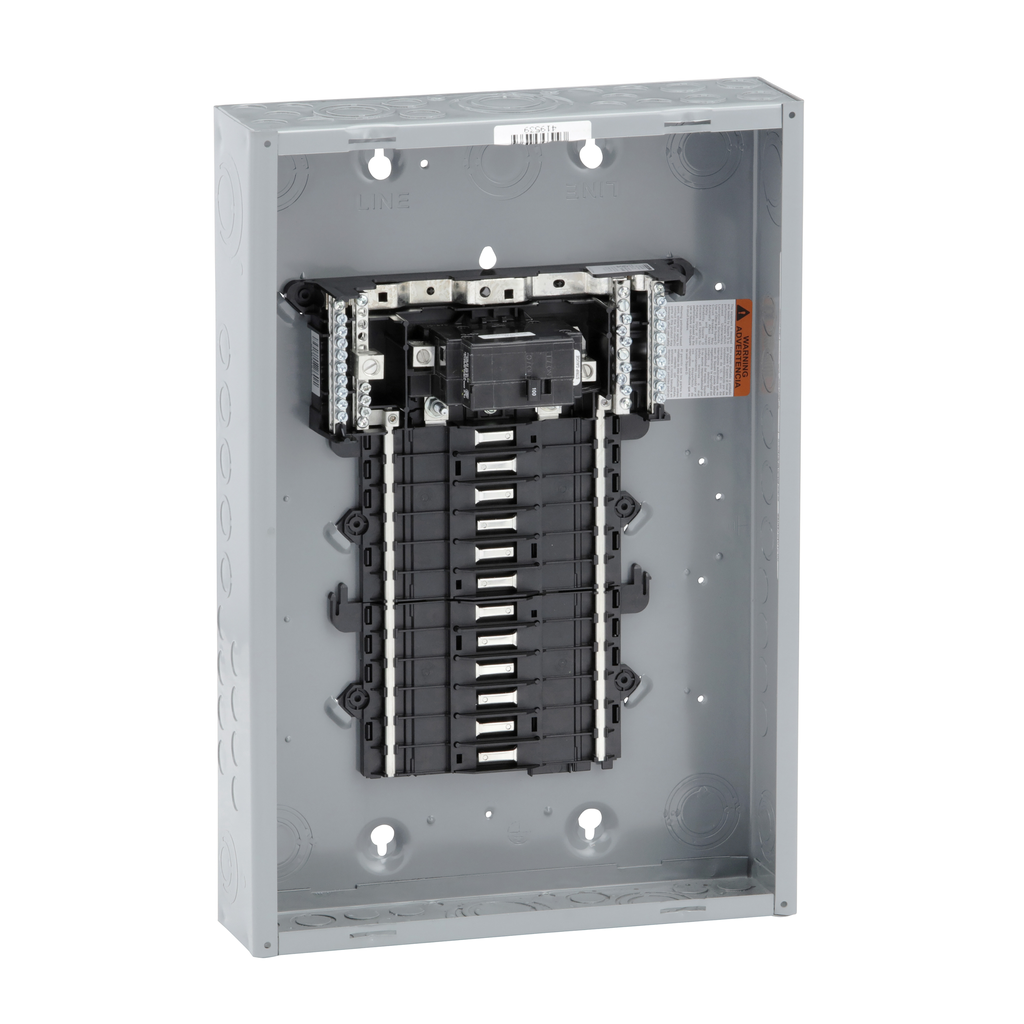

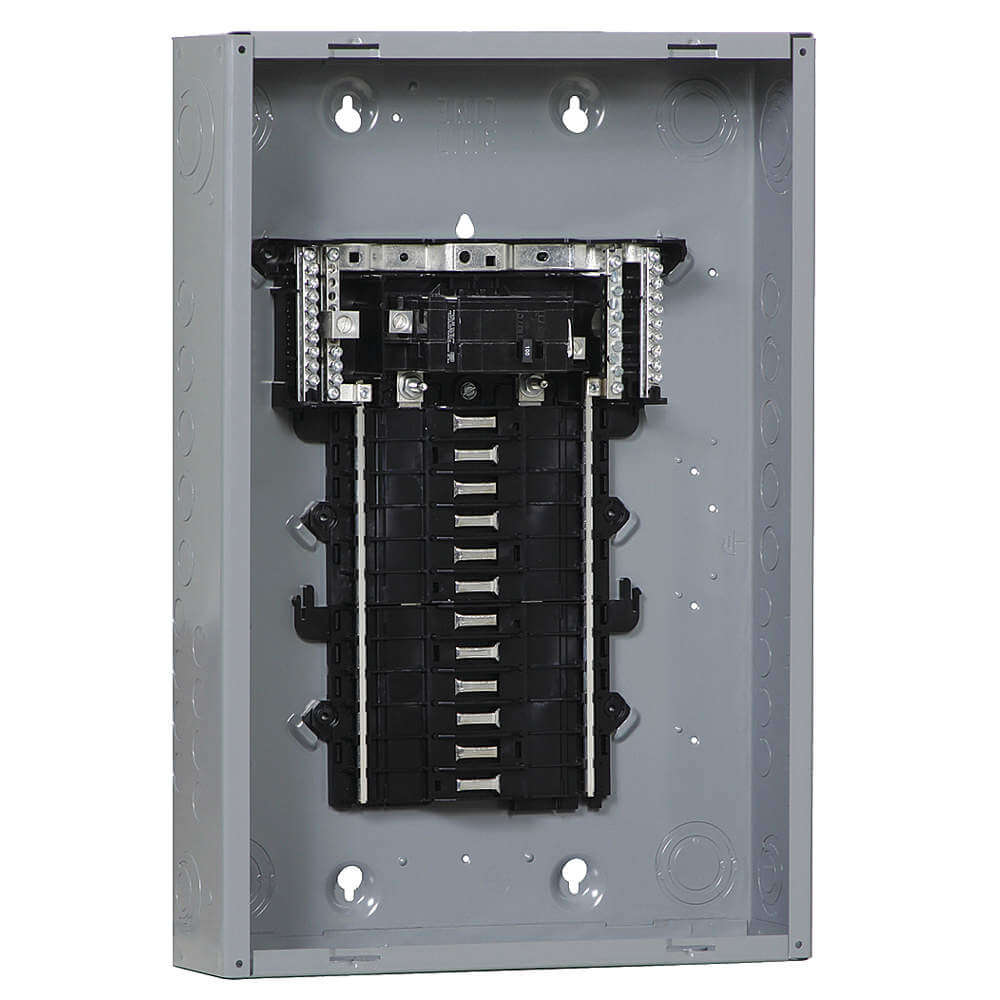

Square D Load Center, Main Circuit Breaker, Convertible,100 Amps,120/240VAC Voltage,Number of Spaces: 24

Square D Load Center, Main Circuit Breaker, Convertible,100 Amps,120/240VAC Voltage,Number of Spaces: 24zoom

Attributes

Key Value
[Ue] Rated Operational .120/240 V AC
Ambient Air Temperature.-5 ?C || 40 ?C
Amps100 A
AvailabilityIn Stock, ships within .
Awg GaugeAWG 6...AWG 2/0 alumini.
AWG RangeAWG 6...AWG 2/0 Aluminu.
Box Number7
BrandSquare D, Square D by S.
Bus MaterialTin Plated Copper
California Proposition .Lead and lead compounds.
Catalog NumberQO124M100P
China Rohs RegulationPro-active China RoHS d.
Circuit Breaker TypeQO
ColorGray, baked enamel Gray
Color FamilyGray
ConfigurationOpen-Frame
Country of OriginUnited States, US - Uni.
Cover Typeorder separately
Current Rating100 A
Current Stock4
Depth4 1/4 in
Device Compositiongrounding bar (ordered .
ECCNEAR99
Electrical Connectionlugs
Enclosure MaterialSteel, welded sheet ste.
Enclosure NEMA Rating1
Environmental DisclosureENVPEP2212001
Eu Rohs DirectiveCompliant
Height531 mm, 20.91 in
Included Enclosure Coverorder separately
International ShippingNo
ItemLoad Center
Line Rated Current100 A
Load Center TypePoN Convertible Mains (.
LocationIndoor
Made in USAYes
Main Circuit Breaker or.Convertible, Main Circu.
Main TypePoN Convertible Mains (.
ManufacturerSchneider Electric
MaterialHAWA, tin plated copper.
Max. No. of Tandem Brea.0
Max. Single Pole Circui.24
Max. Tandem Circuits0
Mercury FreeYes
MpnQO124M100P
MPNQO124M100P
Nema Degree Of Protecti.NEMA 1 indoor
NEMA Rating1
No. of Circuits34
No. of Spaces24
No. of Wires3-wire
Number Of Circuits34
Number of Circuits24
Number Of Spaces24
Number of Spaces24
Number Of Tandem Circui.10
Phase1, 1 phase
Product CertificationsUL Listed
Product Or Component Ty.Load Center
Range Of ProductQO
Rated Current100A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Recommended Flush Cover1D433
Recommended Ground Bar .Mfr. No. PK15GTA
Recommended Surface Cov.1D434
Rohs Exemption Informat.Yes
SeriesQO Series, QO
Short Circuit Current R.22kA
Short-Circuit Current22 kA
SKUZO-G6183904
Special FeaturesMercury Free
StandardsRoHS Compliant, UL List.
SubCategoryElectrical
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Tightening TorqueCover 20 lb.in
Toxic Heavy Metal FreeYes
UNSPSC39121101
UPC785901228769
UPC Code785901228769
Voltage120/240V AC
Voltage Rating120 ; 240 V, 120/240 V .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width14.25 in, 362 mm
Wire SizeAWG 6...AWG 2/0 alumini.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommayerelectric.comSQDQO124M100P111.321In StockSQUARE D111.32 @ 1
thumbzoomgordonelectricsupply.comQO124M100P116.591In StockSQUARE D116.59 @ 1
standardelectricsupply.com2266844123.651In StockSquare D123.65 @ 1
thumbzoomsimsupply.comZO-G6183904141.631In StockSquare D141.63 @ 1
thumbzoomRadwellQO124M100P155.01In StockSCHNEIDER ELECTRIC SQUARE D155.0 @ 1
thumbzoomZoroG6183904176.99161Square D13.15176.99 @ 1
us.rs-online.com70920824362.3312Square D362.33 @ 1
thumbzoomRaptor SuppliesAH3AXU697.22641In StockSQUARE D697.2264 @ 1
thumbzoomUnited Electric508644783.0911Schneider Electric783.09 @ 1
Graybar25477482885.9215Square D (Schneider Electric)885.92 @ 1
thumbzoomcrescentelectric.com156636973.012Square D by Schneider Electric973.0 @ 1
Grainger30YE81994.01In Stock10SQUARE D994.0 @ 1
