Square D 8501KPR12V14

B01M11V36W

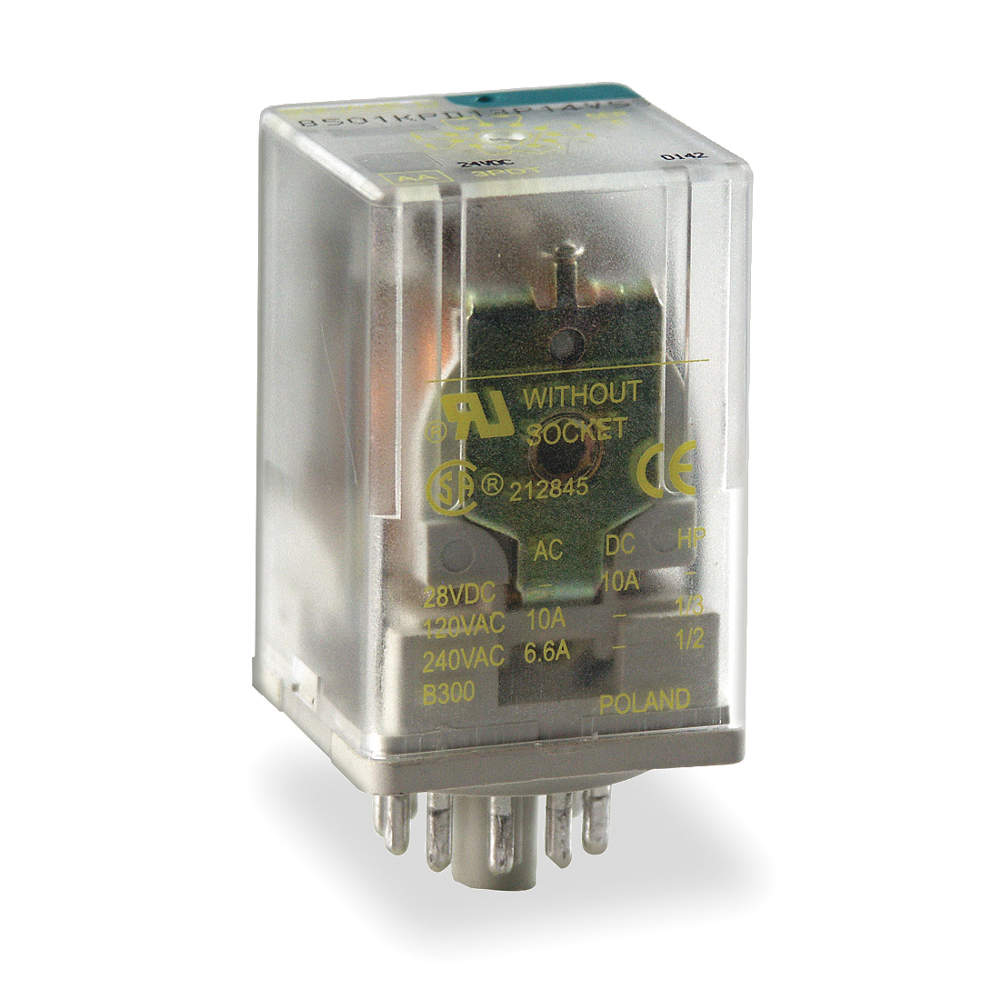

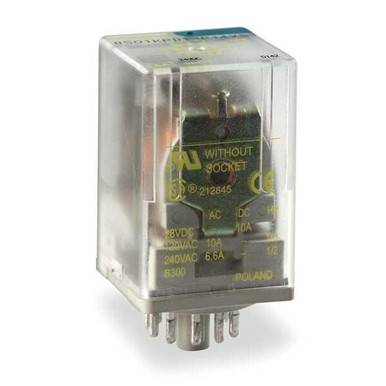

Square D 8501KPR12V14 Plug In Relay, 8 Pins, Octal, 24Vac

Square D 8501KPR12V14 Plug In Relay, 8 Pins, Octal, 24Vaczoom

Attributes

Key Value
[Uc] Control Circuit Vo.24 V AC
AC Contact Rating - Rel.10A @ 277V
Ambient Air Temperature.-40-131 ?F
Application8501NR52;8501NR51
ApprovalsCE, CSA, UL
Base TypeOctal
Base Type - Plug In Rel.Octal
Body Depth2.1 in
Body Depth - Relay1.4 in
Body Height1.4 in
Body Height - Relay2.1 in
Body Width1.4 in
Body Width - Relay1.4 in
BrandSquare D, Schneider Ele.
California Proposition .Nickel compounds, which.
Catalog Number8501KPR12V14
CategoryRelays
China Rohs RegulationX
Circularity ProfileN/A
Coil Insulation-
Coil TypeNon Latching
Coil Voltage24 VAC, 24 V AC, 24VAC
Coil Volts24V AC
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Nickel (AgNi), S.
Contact Rating (Current)10 A
Contact Voltage Rating300 VAC
ContactsDPDT
Contacts Materialsilver alloy (AgNi)
Control Typewithout test button
Control Voltage24
Country of OriginCN - China, China
Current Rating10 A
Current Stock97
DC Contact Rating - Rel.10A @ 28V
Depth1.4 in., 1.4 in
DescriptionRELAY 2CO CYL PIN 10A@2.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501KPR12V14-ND
ECCNEAR99
EnclosurePlastic
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Relays, 8501K .
Features-
Flat Pin WidthNot Applicable
Functiongeneral purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0.195 lbs
GTIN00785901981107
Height2.66 in., 2.66 in
HP @ 120V1/3 hp
HP Rating1 hp 277 V AC || 0.33 h.
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number8501KPR12V14
Item TypeGeneral purpose;DPDT;Re.
Lead TimeExpected to ship in 1-2.
Local Signallingno indicator
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number464576
Manufacturer Product Nu.8501KPR12V14
Manufacturer Standard L.1 Weeks
Materialsilver alloy (AgNi)
Maximum Switching Volta.300 V AC || 30 V DC
MfrSchneider Electric
Mountingsocket, Plug In
Mounting - RelayPlug In
Mounting Supportsocket
Mounting TypeSocket Mount, Socketable
Mpn8501KPR12V14
Must Operate Voltage-
Must Release Voltage-
Net Weight0.185 lbs
Nominal Coil Voltage24 VAC
Number of Pins8
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40?C ~ 55?C
Operating Time20 ms - pick-up || 20 m.
Overall Depth2.7 in
Overall Height - Relay2.6 in
PackageBox
Power Consumption - Rel.3 VA
Primary TypePower Relays
Product CertificationsUL Listed || UL Recogni.
Product Compatibility8501NR52 || 8501NR51
Product Or Component Ty.relay
Product Series8501K
Product StatusActive
Published Coil Voltage24 VAC
Range Of Product8501K
Rated Breaking Capacity3 A 120 V AC inductive .
Rated Power In Hp1 hp 277 V AC || 0.33 h.
Rating @ 220/240/277 VAC10 A
Rating @ 24/28/30 VDC10 A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Relay TypeElectromechanical, gene.
Release Time20 ms
RoHSYes
Rohs Exemption Informat.Yes
Safety GuidedNo
Seal Rating-
SeriesSquare D 8501K, 8501K S.
Shape Of Pintubular
SKUZO-G3143567
Special FeaturesNo indicator;Without te.
StandardsCE Certified, CSA Certi.
Status IndicatorNo
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch FunctionDPDT
Switching Voltage300VAC, 30VDC - Max
Termination8-Pin Octal, Round Pin
Termination StylePlug In, 8 Pin (Octal)
Time Cycle20 ms - pick-up || 20 m.
Typegeneral purpose
UNSPSC39122325
UPC785901981107
UPC Code785901981107
Use With8501NR52 || 8501NR51
Voltage Rating240 V
Width1.4 mm, 1.4 in
