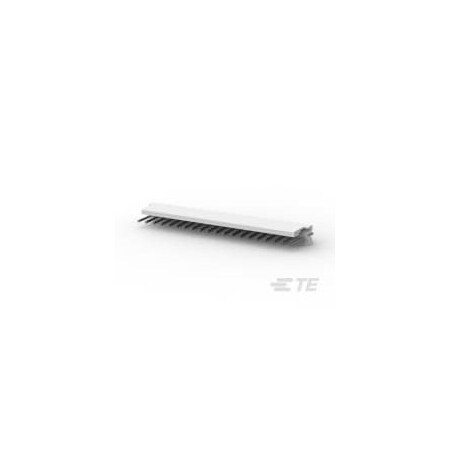

TE Connectivity 2-640388-0

B00KSOKTH2

TE Connectivity Part Number 2-640388-0

TE Connectivity Part Number 2-640388-0zoom

Attributes

Key Value
ApplicationPower
ApplicationsGeneral Purpose, Indust.
Base Product Number640388
CategoryConnectors, Interconnec.
ColorNatural
Connection MaterialCopper Alloy
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader, Male Pin
Contact FinishTin Plated
Contact Finish - MatingTin, -
Contact Finish - PostCopper Alloy, Tin
Contact Finish Thicknes.Tin, -
Contact Finish Thicknes.General Purpose, Indust.
Contact Length - Mating0.125" (3.18mm), 0.400".
Contact Length - Post0.125" (3.18mm), 0.650".
Contact MaterialCopper Alloy, Thermopla.
Contact Plating Thickne.2.54 ?m
Contact ShapeTin, Circular
Contact TypeMale Pin, Tab, 0.156" (.
Current Rating7 A
Current Rating (Amps)600VAC, Varies by Wire .
DescriptionCONN HEADER VERT 20POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number2-640388-0-ND
Fastening Type0.400" (10.16mm), Frict.
Features-, Unshrouded, -55?C ~ .
Flammability RatingUL 94 V-0
For Use WithMTA .156 Connector Asse.
Height10.79 mm
Hole Center to Center3.96 mm
Ingress ProtectionUL94 V-0, -
Insulation ColorNatural, Varies by Wire.
Insulation Height0.425" (10.80mm), Circu.
Insulation MaterialThermoplastic, Glass Fi.
ItemHeader
Length79.25 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-640388-0
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.UL94 V-0, Natural
Max. Insulation Dia.0.197 in
Max. Temp.105?C
Max. Voltage600V AC
MfrTE Connectivity AMP Con.
Mounting TypeSolder, Through Hole
Number of Contacts20
Number of Positions1, 20
Number of Positions Loa.All, Board to Cable/Wire
Number of Rows1, -
Operating Temperature-55?C ~ 105?C, -
Overall Contact Length0.650" (16.51mm), 0.425.
PackageActive, Bulk
Part StatusHeader
Pitch - Mating20, 0.156" (3.96mm)
Product StatusActive
Row Spacing - MatingAll, -
SeriesBulk, MTA-156
ShroudingThrough Hole, Shrouded .
StandardsCSA Certified; UL E2847.
StyleBoard to Cable/Wire, Sh.
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder, Friction Lock
Voltage Rating600VAC, -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-640388-00.722502000TE CONNECTIVITY/AMP BRAND0.72 @ 100
Newark51F16590.971250100AMP - TE CONNECTIVITY0.971 @ 100
thumbzoomDigi-Key11309541.162032250250TE Connectivity AMP Connectors1.162032 @ 250
thumbzoomZoroG00589195285.174100Te Connectivity85.1 @ 100
