- mpnUJ5P1GM
- brandname: US Motors
- manufacturername: US Motors

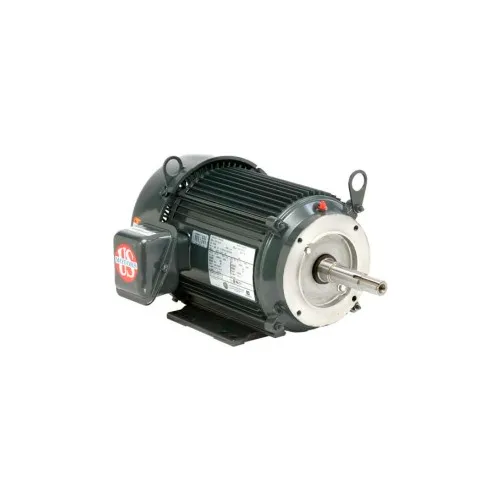

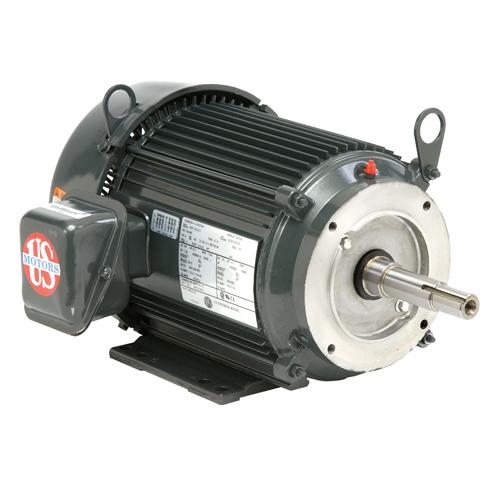

U.S. Motors US Motors Pump, 5 HP, 3-Phase, 3525 RPM Motor, UJ5P1GM
- Brand: U.S. Motors
- PartNumber: UJ5P1GM
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 4.9 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 88.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 110.00 |
| Family Series | US Motors Motors |
| FL Amps | 4.9 |
| FL Efficiency | 88.5 |
| Frame | 184JM |
| Frequency | 60 Hz |
| Gross Weight | 100 lbs |
| Hertz | 60 |
| Horsepower | 5 hp |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,5HP,3600,575V. |
| Item Number | UJ5P1GM |
| Kilowatts | 3.7 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DT43 |
| Manufacturer Part Number | UJ5P1GM |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DT43 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 184JM |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Part Number | UJ5P1GM |
| Phase | 3 |
| Product Type | Pump, Three Phase |
| Rotation | Reversible |
| RPM | 3525, 3,525 RPM |
| Service Factor | 1.25 |
| Ship Weight | 100 lbs. |
| Speed (RPM) | 3525 |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466889 | 789.0 | 1 | In Stock | 17 | US Motors | | 789.0 @ 1 |
 | Zoro | G0398262 | 853.83 | 1 | In Stock | | U.S. Motors | 100.0 | 853.83 @ 1 |
 | emotorpro.com | UJ5P1GM | 857.48 | 1 | In Stock | | U.S. Motors | 100.0 | 857.48 @ 1 |
 | National Supply Network | B466889 | 877.89 | 1 | In Stock | | US MOTORS | | 877.89 @ 1 |
 | motorsandcontrol.com | UJ5P1GM | 903.87 | 1 | In Stock | | US Motors (Nidec) | 110.0 | 903.87 @ 1 |
 | Galco | UJ5P1GM-USM | 903.88 | 1 | In Stock | | US Motors | 100.0 | 903.88 @ 1 |
| motionindustries.com | 02899426 | 1686.78 | 1 | In Stock | | US Motors (Nidec) | | 1686.78 @ 1 |
