- mpnXS34SA2ACR
- brandname: US Motors
- manufacturername: US Motors

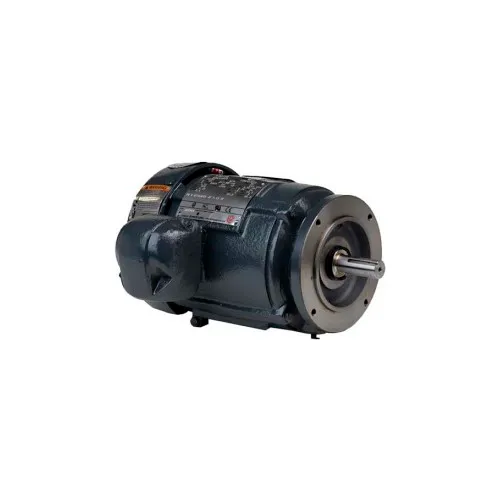

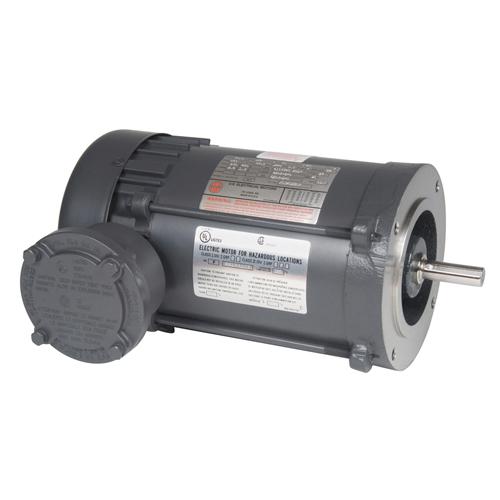

U.S. Motors TEFC Hazardous Location, 3/4 HP, 3-Phase, 1725 RPM Motor, XS34SA2ACR
- Brand: US Motors
- PartNumber: XS34SA2ACR
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 2.8-2.9/1.4 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 35.20 |
| Explosion Proof Rating | Class I (Group C,D) Cla. |
| Family Series | US Motors Motors |
| FL Amps | 2.8-2.9/1.4 |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.9-2.8/1.40 |
| Full Load Amps @ 50Hz | 2.9-2.8/1.40 |
| Gross Weight | 32 lbs |
| Hazardous Location Class | 1 C,D / 2 E,F,G |
| Hazardous Location Divi. | Division 1 |
| Hertz | 50, 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| HP @ 50Hz | 3/4 |
| Hz | 50/60, 60/50 |
| Includes | Conduit Box |
| Ins. Class | B |
| Insulation Class | B |
| Item | Hazardous Location Motor |
| Item Number | XS34SA2ACR |
| Kilowatts | 0.6 kW |
| Lead Length | 24 in |
| Length Less Shaft | 12 3/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | PH63ACL1050015B |
| Manufacturer Part Number | XS34SA2ACR |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | PH63ACL1050015B |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| Nameplate RPM | 1,800 |
| NEMA Design | B |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 84.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 14 1/4 in |
| Overload Protection | Automatic |
| Part Number | XS34SA2ACR |
| Phase | 3, Three |
| Product Type | Explosion Proof, Three . |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM @ 50Hz | 1,425 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Service Factor @ 50Hz | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 1725 |
| Standards | CSA Certified, UL Listed |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage @ 50Hz | 208-230/460V AC |
| Voltage Compatibility | 208-220/440V AC, 208-23. |
| Volts | 208, 230, 460 |
| Weight | 1,150 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1629698 | 395.0 | 1 | In Stock | | U.S. Motors | 32.0 | 395.0 @ 1 |
 | MRO Supply | 6457312 | 424.71 | 1 | In Stock | | US Motors | | 424.71 @ 1 |
 | emotorpro.com | XS34SA2ACR | 473.66 | 1 | In Stock | | U.S. Motors | 32.0 | 473.66 @ 1 |
 | Galco | XS34SA2ACR-USM | 499.29 | 1 | In Stock | | US Motors | 32.0 | 499.29 @ 1 |
 | motorsandcontrol.com | XS34SA2ACR | 499.29 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 499.29 @ 1 |
 | Global Industrial | WBB467923 | 509.0 | 1 | In Stock | | US Motors | | 509.0 @ 1 |
 | National Supply Network | B467923 | 513.9 | 1 | In Stock | | US MOTORS | | 513.9 @ 1 |
| motionindustries.com | 03749126 | 931.76 | 1 | In Stock | | US Motors (Nidec) | | 931.76 @ 1 |
