Weg Electric 00158ES1RFD145T-S

mpn00158ES1RFD145T-S
brandname: WEG
manufacturername: WEG

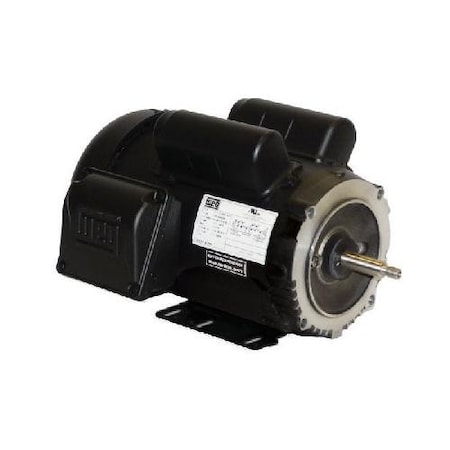

WEG Electric 00158ES1RFD145T-S, 1.5HP, 1800 RPM, 1PH, 110-120V/230V, 143/5T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Brand: Weg Electric
PartNumber: 00158ES1RFD145T-S
Model: 00158ES1RFD145T-S
Color: Red
Manufacturer: Weg Electric
Label: Weg Electric

Attributes

Key	Value
Amperage Rating	15/7.48 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
Classification	RS Farm Duty
Comments	60 Hz
Composition	Steel
Condition	New
Construction	Rolled Steel
Country of Origin (subj.	Brazil
Degree of Protection	IP55
Description:	MOTOR 1.5HP 4P 143/5T W.
Dimensions	15.152 in L
Drive End Flange Type	Standard
Enclosure	TEFC, IC411 -TEFC, Tota.
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	50.00
Family Series	WEG Electric Motors
FL Amps	7.48
FL Efficiency	77.0
Flanges	Without Flanges
FRAME	143/5T
Frame	145T, 143/5T
Frame Material	Rolled Steel
Frame Remarks	Farm Duty, Rolled Steel
Frequency	60 Hz
Frequency Rating	60 Hz
Full Load Amps	7.48
Gross Weight	0 lbs
Hertz	60
Horsepower	1-1/2 hp, 1.5 hp
HP	1.5
Hz	60
Insulation Class	Class F
Item Condition	Factory New
Item Number	00158ES1RFD145T-S
Kw	1.1
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	00158ES1RFD145T-S
Material	Rolled Steel
MFG Part #:	00158ES1RFD145T-S
Model	14809122
Motor Enclosure Design	TEFC
Motor Mounting Type	FOOT
Motor Service Factor	1.15
Mounting	Foot Mount, Foot-mounte.
Mounting Type	Foot Mount, Footed
Nameplate RPM	1800
NEMA Frame	143/5T
Net Weight	0 lbs
Nominal Efficiency	77
Nominal Voltage	120 VAC
Number of Poles	4
Number of Speeds	1
Output Rating	1.5 hp
Overall Length	15.152
Part Number	00158ES1RFD145T-S
Phase	1, 1 ph
Product Type	General Purpose
Replaces	00158ES1RFD145T
Rotation	CW/CCW
RPM	1,800 RPM, 1800
Service Factor	1.15
Speed	1745 rpm
Speed (RPM)	1800
Standard	NEMA MG-1
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	1800 rpm
Temperature Rating	-20 to 40 deg C
Terminal Box	Left position
Torque Rating	4.45 ft-lb
UPC:	7909712133194
VOLTAGE	115/230
Voltage	110-120V, 230V, 115-230.
Voltage (AC)	120 VAC
Volts	115/230
WEIGHT	50
Weight	49.680000
