Weg Electric .7518ES3H56C-S

B07BQHBVSZ

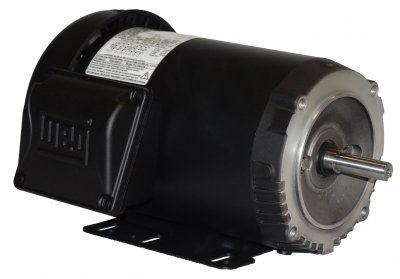

WEG Electric .7518ES3H56C-S.75HP, 1800 RPM, 3PH, 575V, 56C Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

WEG Electric .7518ES3H56C-S.75HP, 1800 RPM, 3PH, 575V, 56C Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating1 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 0.75HP 4P 56C WCF2
Dimensions11.929 in L
Drive End Flange TypeC-Face
Efficiency %78.5 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight27.00
Family SeriesWEG Electric Motors
FL Amps0.98
FL Efficiency78.5
FlangesWithout Flange
FRAME56C
Frame56C
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps1
Gross Weight0 lbs
Hertz60
Horsepower0.75 hp, 3/4 hp
HP.75, 0.75
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number.7518ES3H56C-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number.7518ES3H56C-S
MaterialRolled Steel
MFG Part #:.7518ES3H56C-S
Model12894830
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.15
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1800
NEMA Frame56C
Net Weight0 lbs
Nominal Efficiency78.5
Nominal Voltage575 VAC, 600 VAC
Number of Poles2
Number of Speeds1
Output Rating15 HP
Overall Length11.929
Part Number.7518ES3H56C-S
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces.7518ES3H56C-S
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15
Speed1755 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating2.21 ft-lb
UPC:7909522773542
VOLTAGE575
Voltage575V, 575, 230/460//380.
Voltage (AC)575 VAC
Volts575
Weight26.760000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comWEG .7518ES3H56C-S249.751In StockWEG ELECTRIC CORP249.75 @ 1
thumbzoommotorsandcontrol.com.7518ES3H56C-S249.751In StockWEG Electric27.0249.75 @ 1
thumbzoomWalker Industrial7518ES3H56C-S249.751In Stock17WEG249.75 @ 1
thumbzoomMRO Supply2519271262.991In StockWEG262.99 @ 1
thumbzoomGalco.7518ES3H56C-S-WEG273.511In StockWEG Electric273.51 @ 1
thumbzoomZoroG202754319285.861In Stock11Weg285.86 @ 1
thumbzoomindustrialrefrigerationparts.com.7518ES3H56C-S291.341In StockWEG26.76291.34 @ 1
thumbzoomRadwell.7518ES3H56C-S300.01In StockWEG300.0 @ 1
thumbzoomDealers Electric.7518ES3H56C-S319.211In StockWeg27.0319.21 @ 1
thumbzoomvfds.com.7518ES3H56C-S333.01In StockWEG333.0 @ 1
Airline HydraulicsWEG .7518ES3H56C-S343.31In StockWEG343.3 @ 1
thumbzoomMisumi USA.7518ES3H56C-S399.61In StockWEG399.6 @ 1
motionindustries.com06142928427.131In StockWEG Electric Corporation427.13 @ 1
