- mpnT/R+JUG
- brandname: 3-M
- manufacturername: 3-M

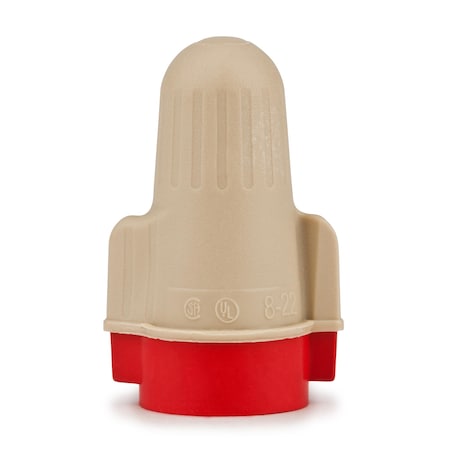

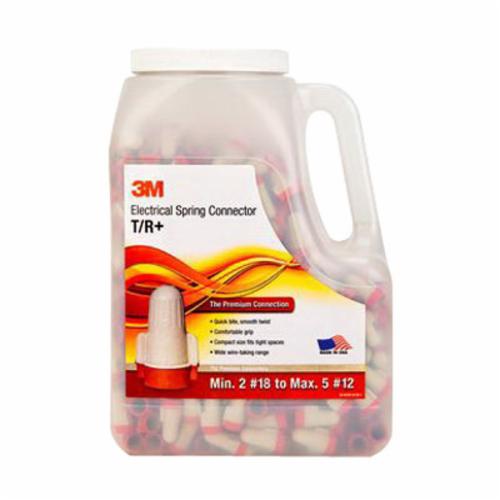

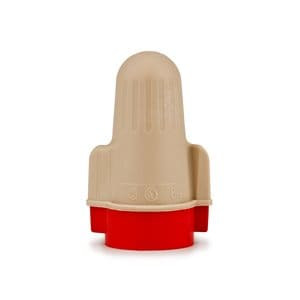

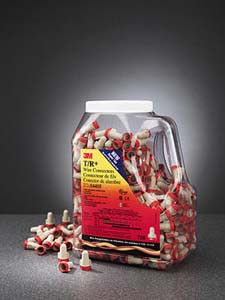

3M Performance Plus Wire Connector, Flexible Steel Spring Connectors, 22-8 AWG, Tan and Red Color (T/R+), Jug of 750, Tan/Red
- Brand: 3M Electrical Markets Division
- PartNumber: T/R+JUG
- Model: 80611454523
- Color: Tan/Red
- Size: 750 ct Jug
- PackageQuantity: 750
- Binding: Misc.
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 18 - 8 |
| Application | Wide Range |
| Base Product Number | T/R |
| Boxes per Case | 8.0 |
| Brand | 3M |
| Brand Name | 3M |
| Category | Electrical Insulating T. |
| Color | Tan, Red, Red/Tan, Tan/. |
| Color Family | Multi |
| Conductor Size | 22-8 AWG |
| Connection Type | Wire |
| Connector Style | Twist On |
| Contact Material | Steel |
| Country of Origin | US - United States, USA. |
| Country Of Origin | United States of America |
| Dimensions | 1.17 Inch Length x 0.76. |
| Dual color coded | one connector does the . |
| ECCN | EAR99 |
| Energy Star Flag | No |
| Environmental Conditions | V2 Flammability Rated P. |
| Family | 3M? Performance Plus Wi. |
| Features | Copper Wire Only, Flame. |
| Finish | No |
| Flame Retardant | Yes |
| Flammability Rating | V-2 |
| For Conductor Material | Copper |
| For Wire Size | 10 AWG, 12 AWG, 14 AWG,. |
| GTIN | 00051128544556 |
| Height | 0.76 in |
| Insulation | Fully Insulated |
| Insulation Material | Plastic, Flame Retardan. |
| Item | Twist On Wire Connector |
| Item Name | Twist-On Wire Connector |
| Item? | 1DLZ2 |
| Made In America | Yes |
| Manufacturer | 3M |
| Manufacturer Name | 3M |
| Manufacturer Part Number | T/R+JUG |
| Manufacturing Origin | USA |
| Material | Copper, Polypropylene, . |
| Max. Single Wire Size | 12 AWG |
| Max. Voltage | 600V AC |
| Max. Wire Combination | (5) 12 AWG |
| Maximum Conductor Size . | 8 AWG |
| Maximum Conductor Size . | 10 |
| Maximum Conductors | 6 |
| Maximum Insulation Oute. | 3.7 mm |
| Maximum Insulation Outs. | 0.145 in |
| Maximum Operating Tempe. | 221 ?F |
| Maximum Operating Tempe. | 105.0 Degree |
| Maximum Operating Tempe. | 221.0 Degree |
| Maximum Recommended Vol. | 600.0 V |
| Maximum Single Wire Size | 8 AWG |
| Maximum Voltage | 600 V |
| Maximum Voltage Rating | 600 V (1000 V in signs,. |
| Maximum Wire Combination | (5) 12 AWG |
| Mfr | 3M |
| Mfr. Model? | T/R+JUG |
| Min. Single Wire Size | 18 AWG |
| Min. Wire Combination | (2) 18 AWG |
| Minimum Conductor Size . | 22 AWG |
| Minimum Conductor Size . | .34 mm? |
| Minimum Single Wire Size | 22 AWG |
| Minimum Wire Combination | (2) 18 AWG |
| Number of Wire Entries | Varies by Wire Size |
| Overall Height | 1.17 in |
| Overall Width | 0.76 in |
| Package | Bulk |
| Package Quantity | 750/Jug |
| Packaging | Jug of 750, Jug |
| Part Status | Active |
| Product Color | Red |
| Product Type | Connector |
| RoHS Compliant | Yes |
| RoHS EU Comments | RoHS 2011/65/EU complia. |
| RoHS Flag | Yes |
| Series | Performance Plus?, Perf. |
| Special Features | Dual Color Coded; Flexi. |
| Specifications Met | UL Listed |
| Standards | UL Listed, CSA Certifie. |
| Strip Length | 1/2 in |
| Stud Size | No |
| Temperature Rating | 105 deg C |
| Terminal Type | Wire Nut, Wing |
| Termination | Twist On |
| Twist-On Wire Size Rang. | 22 AWG - 8 AWG |
| Type | Wire, Flexible Skirt, C. |
| UNSPSC | 39121445, 39121409, 312. |
| UPC | 051128544556, 051128544. |
| Use With | Copper Conductor |
| Voltage Rating | 600 Volt |
| Width | 0.76 in |
| Wire Connector Style | Standard |
| Wire Connector Type | Twist-on Wire Connectors |
| Wire Gauge | 8-22 AWG |
| Wire Size Ranges | 22 AWG - 8 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Monarch Electric | 13653 | 0.069 | 1 | 6000 | | 3M | | 0.069 @ 6000 |
 | Kelly Hayes | T/R+JUG | 0.13 | 1 | 6000 | | 3M | | 0.13 @ 6000 |
 | mayerelectric.com | MMMTR+JUG | 0.15 | 1 | 19500 | | 3M | | 0.15 @ 6000 |
| steinerelectric.com | 61817 | 0.16 | 1 | 6000 | | 3M | | 0.16 @ 6000 |
 | French Gerleman | 3MTRJUG | 0.16 | 750 | 6000 | | 3M | | 0.16 @ 6000 |
 | Platt.com | 0557957 | 0.17 | 1 | 657900 | | 3M | | 0.17 @ 6000 |
 | jensentools.com | 10020589 | 0.2 | 1 | 6000 | | 3M | | 0.2 @ 6000 |
| Newark | 79T9231 | 0.239 | 6000 | 6000 | | 3M | | 0.239 @ 6000 |
 | United Electric | 135759 | 21.0 | 1 | 23250 | | 3M | | 21.0 @ 6000 |
| Digi-Key | 5129431 | 94.60192 | 250 | 6000 | | 3M | | 94.60192 @ 6000 |
 | sustainablesupply.com | C1165307 | 98.67 | 1 | 6000 | | 3M | 5.5 | 98.67 @ 6000 |
 | galesburgelectric.com | T/R+JUG | 98.76 | 1 | 6000 | | 3M | | 98.76 @ 6000 |
 | gordonelectricsupply.com | T/R+JUG | 103.19 | 1 | 6000 | | 3-M | | 103.19 @ 6000 |
| Dale-Electric | T/R+JUG | 121.24 | 1 | 6000 | | 3M | | 121.24 @ 6000 |
 | Zoro | G1321047 | 141.99 | 1 | 6000 | | 3M | 5.5 | 141.99 @ 6000 |
| Graybar | 22071842 | 176.7696 | 750 | 6000 | | 3M | | 176.7696 @ 6000 |
| Grainger | 1DLZ2 | 178.41 | 1 | 6000 | | 3M | | 178.41 @ 6000 |
 | Raptor Supplies | AA9JXQ | 216.6653385 | 1 | 6000 | | 3M | | 216.6653385 @ 6000 |
