- mpn5480C SL001
- brandname: Alpha Wire
- manufacturername: Alpha Wire

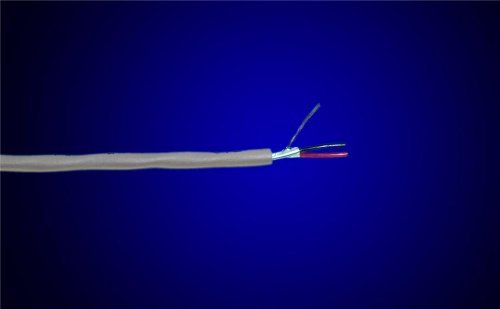

Alpha Wire 5480C SL001 Multi-Paired Cables 24AWG10PR SHIELD 1000ft SPOOL SLATE
- Brand: Alpha Wire
- PartNumber: 5480C SL001
- Manufacturer: Alpha Wire
- Label: Alpha Wire
Attributes
| Key | Value |
|---|
| Application | For communication and c. |
| Base Product Number | 5480C |
| Cable Type | Paired, Multi-Pair |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 24 AWG |
| Conductor Strand | 7/32 |
| Family Name | Xtra-Guard Performance . |
| Features | Drain Wire |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.010 in. |
| Jacket (Insulation) Dia. | 0.373" (9.47mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0400" (1.016mm) |
| Jacket Color | Gray, Slate |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.040 in. |
| Length | 1000.0' (304.8m), 1000 . |
| Mfr | Alpha Wire |
| Nominal Impedance | 50 Ohms |
| Number of Conductors | 20 (10 Pair Twisted), 1. |
| Number of Pairs | 10 |
| Operating Temperature | -20?C ~ 80?C, 75 ?C |
| Outer Diameter | 0.38 in. |
| Package | Spool |
| Packaging | Coil |
| Product Header | Multipair Foil Shielded. |
| Product Status | Active |
| Ratings | UL Style 2464 |
| Series | Xtra-Guard 1 Series, - |
| Shield | Aluminum/Polyester Foil |
| Shield Coverage | 100% |
| Shield Material | Aluminum/Polyester Tape. |
| Shield Type | Foil |
| Shielding | Foil |
| Standards | CA Prop 65, CSA CMG, CS. |
| Stranding | 7x32 |
| Temperature, Rating | -20 to 80 C |
| Usage | - |
| Voltage | 300 V |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | alldataresource.com | A5480C-ALT | 3.75 | 1 | 26 | | Alpha Wire | | 3.75 @ 1 |
 | AI Consolidated | 5480C-SL001-ALPHA-WIRE | 1621.7 | 1 | 26 | | Alpha Wire | 69.85 | 1621.7 @ 1 |
| Digi-Key | 3713255 | 2165.29 | 1 | 26 | | Alpha Wire | | 2165.29 @ 1 |
 | Newark | 92F6853 | 2480.71 | 1 | In Stock | | ALPHA WIRE | | 2480.71 @ 1 |
| us.rs-online.com | 70137889 | 2639.15 | 1 | In Stock | | Alpha Wire | | 2639.15 @ 1 |
