Boston Gear NJ30A

B000LDL7WQ

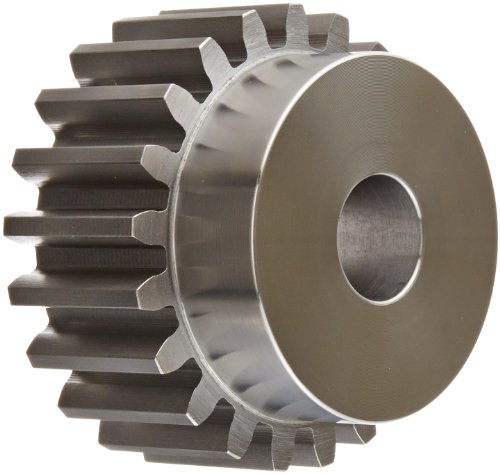

Boston Gear NJ30A Spur Gear, 14.5 Pressure Angle, Steel, Inch, 6 Pitch, 1.125" Bore, 5.333" OD, 1.500" Face Width, 30 Teeth

Boston Gear NJ30A Spur Gear, 14.5 Pressure Angle, Steel, Inch, 6 Pitch, 1.125" Bore, 5.333" OD, 1.500" Face Width, 30 Teethzoom

Attributes

Key Value
Bore Dia. (In.)1.125 in
Bore Diameter1 1/8 in
bore diameter:1-1/8 in
bore type:Rough Stock
BrandBoston Gear
ColorSilver
Current Stock3
Diametral Pitch6
diametral pitch:6
Face Width1 1/2 in
Face Width (In.)1.5 in
face width:1-1/2 in
For Use With1L907, 1L908
FunctionTransmitting Motion and.
gear construction:Plain
Hub DesignHub without Set Screw
Hub Dia. (In.)4.0 in
Hub Diameter4 in
hub diameter:4 in
Hub Projection0.88 in
Hub Projection (In.)0.88 in
hub projection:0.88 in
hub type:Hub w/ No Keyway or Set.
International ShippingNo
ItemSpur Gear
KeywayNone, N
Lead TimeExpected to ship in 1-2.
manufacturer catalog nu.10418
MaterialSteel
material:Steel
MpnNJ30A
Number of Teeth30
number of teeth:30
Outside Dia. (In.)5.333 in
Outside Diameter5.333 in
outside diameter:5.333 in
Overall Length2.38 in
Overall Length (In.)2.38 in
overall width:2.38 in
Pitch6
Pitch Dia. (In.)5.0 in
Pitch Diameter5 in
pitch diameter:5 in
Pressure Angle14.5 Degrees
Pressure Angle (Deg.)14.5
pressure angle:14.5
Prop 65WARNING: Cancer and Rep.
SetscrewNot Included
SKUZO-G0245822
SubCategoryPower Transmission
System of MeasurementInch
UPC781711104187

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0245822145.99112Boston Gear10.9145.99 @ 1
thumbzoomsimsupply.comZO-G0245822188.2513Boston Gear188.25 @ 1
thumbzoomNational Supply Network36682441211.11In StockBoston Gear211.1 @ 1
thumbzoommotionindustries.com00370565213.561In StockBoston Gear (Altra)213.56 @ 1
thumbzoomMRO Supply35330230.141In StockBoston Gear230.14 @ 1
thumbzoomsustainablesupply.comC1660648249.061In StockBoston Gear10.9249.06 @ 1
grainger.caWWG1L994280.299019141In StockBOSTON GEAR10.9280.29901914 @ 1
thumbzoombscsource.comNJ30A331.391In StockBoston Gear331.39 @ 1
thumbzoomRaptor SuppliesAB2CMR400.5029341In StockBOSTON GEAR400.502934 @ 1
