Burndy YA31A1

B00DBSNROO

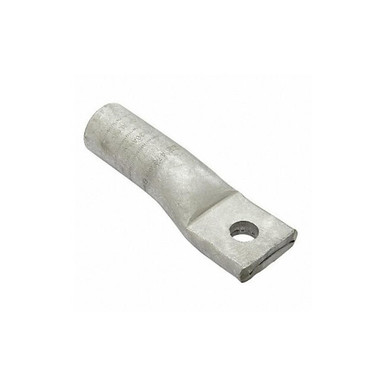

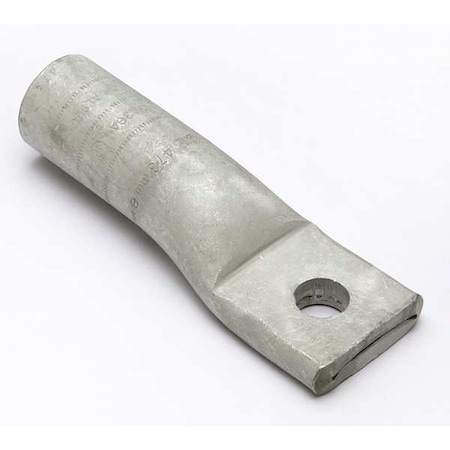

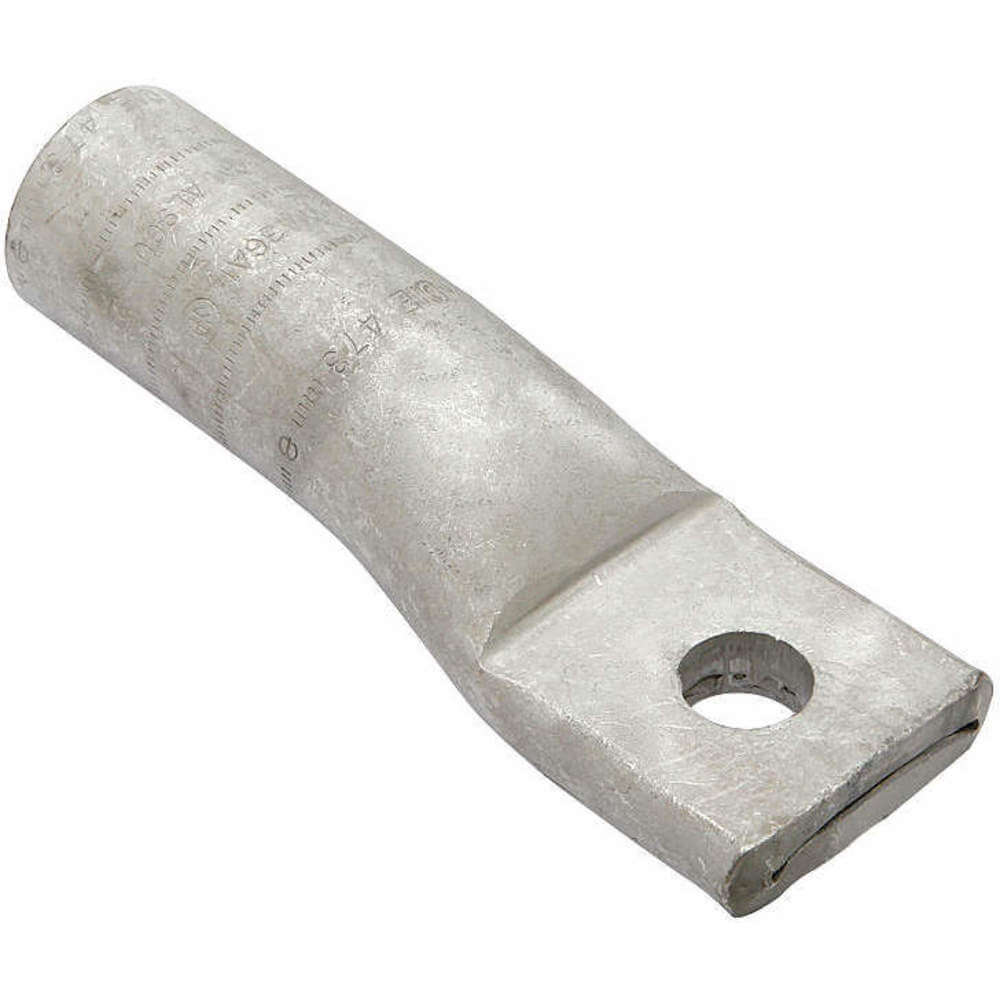

One Hole Lug Compress Conct,350 kcmil

One Hole Lug Compress Conct,350 kcmilzoom

Attributes

Key Value
ApplicationWire Termination, For A.
ApprovalsCSA, UL
Barrel LengthLong
Barrel Outside Diameter1.11 in
Barrel SizeStandard
Barrel StyleChamfered
BrandBurndy-US, a Hubbell af.
Cable Size350 kcmil
Catalog NumberYA31A1
Certification - CSA App.Yes, No
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorBrown
Color CodeBrown
Color FamilyBrown
Colour CodeBrown
Conductor - AL Str Size350 kcmil
Conductor - AL Str Size.350 kcmil
Conductor - Copper Str .350 kcmil
Conductor - Copper Str .350 kcmil
Conductor Size350 kcmil
Connector TypeTerminal, Straight Barr.
Contact FinishTin
Country of OriginUnited States, US - Uni.
Cross Reference ProductsAL350-48
Current Stock9
Die Code299
Die ColorBrown
Die Index299
Dimension - B Length fr.1-7/8 in
Dimension - B Length in.1.85 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1 to 2, 1/2
Dimension - Bolt Size i.0.5
Dimension - D inch1.37 in
Dimension - Hole Size f.1 to 2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.110 mm
Dimension - Length Over.4.33 in
Dimension - N inch0.63 in
Dimension - Outside Dia.1.11 in
Dimension - Pad Width i.1.52 in
Dimension - Strip Lengt.2.125, 2 1/8
Dimension - Stud Size f.1 to 2
Dimension - Stud Size i.1 to 2, 1/2
Dimension - Thread Size1 to 2, 1/2
Dimension - Z inch0.74 in
ECCNEAR99
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Features: Type YA-A Alu.Y644HS Tool, (1), Y81KF.
FinishTin-Plated
For Conductor MaterialAluminum, Copper
For Stranded Aluminum W.350 kcmil
For Stranded Copper Wir.350 kcmil
For Stranded Copper Wir.350 kcmil
For Stud Size1/2 in
For Wire Size350 kcmil
For Wire TypeSolid, Stranded
Gross Weight0.0164 lbs
Hole Center to CenterNot Applicable
Hole Center to End0.63 in
Hole Size0.56 in
Industry Standard(s)UL468A-468B
Inspection HoleNo
InsulatedNon-Insulated
International ShippingNo
ItemOne-Hole Lug Compressio.
Item NumberYA31A1
Item TypeYA-A, Dual Rated, 3A
Lead TimeExpected to ship in 1-2.
Length4.33"
Length (Straight Wirewa.4.33 in
Lug Wire Size350 kcmil
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA31A1
MaterialAluminum, Tin-Plated Al.
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kVAC, 35 kV AC
MpnYA31A1
Net Weight0 lbs
Number of Holes1
Overall Length4.33 in
Overall Width1.52 in
Peep HoleNo
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
SKUZO-G4655314
Special FeaturesFeatures: Type YA-A Alu.
StandardUL 486A-486B
StandardsCSA Certified, UL 486A-.
Standards - Industry St.UL468A-468B
Standards - RoHS Compli.CM
Strip Length2 1/8 in
Stud Size1/2 in., 1/2 in
Sub BrandHYLUG
SubCategoryElectrical
Temperature Rating194
Terminal MaterialCopper
Terminal TypeRing
Termination StyleCrimp
Tongue AngleStraight
Tongue Length1.37 in
Tongue StyleStandard
Tongue Thickness0.39 in
Tongue Width1.52 ", 1.52 in
Tongue Width Ranges1.50 inches and wider
Trade NameHYLUG?, HYLUG?
TypeYA-A, Dual Rated
UL ListedYes
UNSPSC39121405
UPC781810556177, 781810755.
UPC 12 Digit7818107555566
Voltage - Maximum35000
Voltage Rating35
Width1.52"
Wire Size350 kcmil
Wire Size (kcmil)350 kcmil
Wire Size Range350 kcmil - 350 kcmil
Wire Size Ranges350 kcmil - 350 kcmil
Wire Strip Length2.125 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com1963913.321In StockBURNDY13.32 @ 1
Graybar8804860427.003216Burndy27.0032 @ 1
thumbzoomgordonelectricsupply.comYA31A128.021In StockBURNDY28.02 @ 1
thumbzoomZoroG465531430.89134Burndy0.2530.89 @ 1
grainger.caWWG22C40836.754815841In StockBURNDY0.2536.75481584 @ 1
kirbyrisk.com191316740.931In StockBurndy40.93 @ 1
thumbzoomMegadepotYA31A141.01In StockBurndy41.0 @ 1
thumbzoomusmegastore.comYA31A141.01In StockBurndy41.0 @ 1
thumbzoomsimsupply.comZO-G465531442.5319Burndy42.53 @ 1
thumbzoommayerelectric.comBURYA31A146.591In StockBURNDY46.59 @ 1
thumbzoomGalcoYA31A1-BURN58.31In StockBurndy0.016458.3 @ 1
thumbzoomcrescentelectric.com12685459.341In StockBurndy-US, a Hubbell affiliate59.34 @ 1
thumbzoomRaptor SuppliesAB6RNA71.23106251In StockBURNDY71.2310625 @ 1
