H851V2

B005XRPC1M

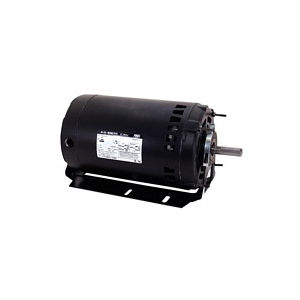

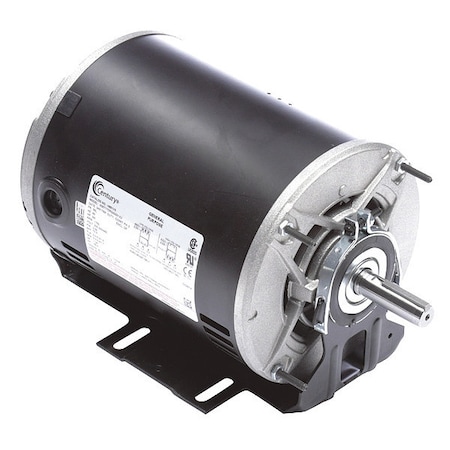

Mtr, 3 Ph, 3/4hp, 1725, 200-230/460, Eff 70.7

Mtr, 3 Ph, 3/4hp, 1725, 200-230/460, Eff 70.7zoom

Attributes

Key Value
Amps3.0/3.2/1.6
BearingsBall
BrandCentury
CategoryElectric Motor
Country of Origin (subj.Mexico
Current Stock3
DutyContinuous
Duty CycleContinuous
EnclosureODP
Enclosure MaterialRolled Steel
Enclosure TypeODP (Open Dripproof)
Frame56
Frame RemarksResilient Base
Full Load Amps3.2-3.0/1.60
HP3/4, 0.75
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
Inverter RatedNo
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Length Less Shaft9 1/2 in
ManufacturerCentury
Manufacturer Model #OL56100042-001
Manufacturers Warranty .1 yr
MaterialHAWA
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeCradle Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length7-1/4"
Motor Thermal ProtectionAuto
MountingBase
mountingResilient Base
MpnH851V3
Nameplate RPM1,725
No. of Speeds1
Nominal Efficiency75.5 %
Overall Length11.54", 11 9/16 in
Phase3, Three
Product TypeThree Phase
RotationReversible
RPM1725, 1800
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.5/8 in
Shaft Diameter5/8"
Shaft Length2.03, 2 1/32 in
Ship Weight22 lbs.
SKUZO-G5121739
StandardsCSA (LR2025), UL (E6312)
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VYes
Usable @ 208VYes
Voltage200-230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts200, 230, 460, 200/230/.
Weight22 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi SupplyH851V214.991In StockA.O. Smith14.99 @ 1
AmazonTPB07DHG4MVN215.991In Stock2CENTURY MOTORS215.99 @ 1
thumbzoomSquare OneH851V2234.361In StockCentury AO Smith234.36 @ 1
thumbzoomZoroG5121739238.01In StockCentury22.4238.0 @ 1
thumbzoommidwestapplianceparts.comH851V2-AO-P283.311In StockAO Smith283.31 @ 1
thumbzoomsimsupply.comZO-G5121739296.611In StockCentury296.61 @ 1
thumbzoomptacsolutions.comH851V2350.941In StockA.O. Smith350.94 @ 1
thumbzoomemotorpro.comH851V3375.941In StockCentury22.0375.94 @ 1
hvacdiscountstore.comCEN--H851V3463.911In StockCENTURY MOTORS463.91 @ 1
thumbzoomDealers ElectricH851V3469.481In StockCentury22.0469.48 @ 1
uri.comH851V1535.321In StockCentury23.0535.32 @ 1
