- mpnC20621
- brandname: Cle-Line
- manufacturername: Cle-Line

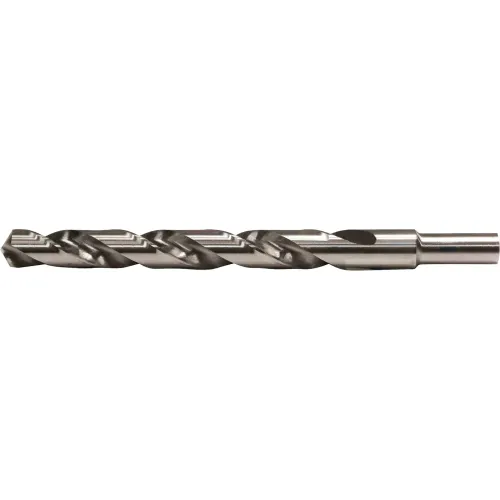

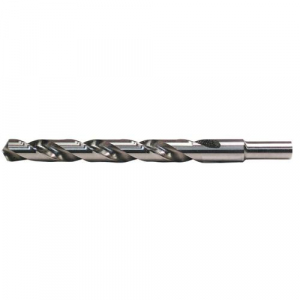

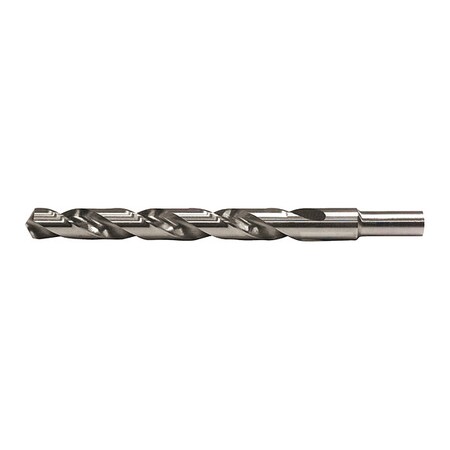

Cle-Line C20621 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Reduced Shank, 118-Degree Radial Point, 25/64" Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20621
- Model: C20621
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Soft and Non-Ferrous Me. |
| Application | For Non-Ferrous Materia. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3906 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3906" |
| Diameter (Fraction) | 25/64" |
| Drill 3/8" Construction | General Purpose |
| Drill 3/8" Size System | Fractional |
| Drill 3/8" Style | Jobber Drill 3/8" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright (Uncoated) |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Radial Point |
| Drill Bit Size | 25/64 in |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.3906 in |
| Drill Size - Fraction | 25/64 in |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3.7500", 3 3/4 in, 3-3/. |
| Flute Length (Metric) | 95.25mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Reduced Shank Drill Bit |
| List Number | 1808 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 9/16 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 5-1/8 in, 5.1250", 5 1/. |
| Overall Length (Metric) | 130.17mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Conventional Point, Rad. |
| Series | 1808 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 3/8 in, 0.3750" |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Round, Reduced |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1808 |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 25/64" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543721 | 4.5701 | 6 | 6 | | Cle-Line | | 4.5701 @ 6 |
 | MRO Supply | 6123908 | 5.28 | 10 | 6 | | Cle-Line | | 5.28 @ 10 |
 | usmegastore.com | C20621 | 5.3 | 1 | 6 | | Cle-Line | | 5.3 @ 6 |
 | heavydutydepot.com | C20621 | 5.3 | 19 | 6 | | Cle-Line | | 5.3 @ 19 |
 | Zoro | G4941426 | 7.13 | 6 | 6 | 12 | Cle-Line | 0.12 | 7.13 @ 6 |
