- mpn4M062
- brandname: DAYTON
- manufacturername: DAYTON

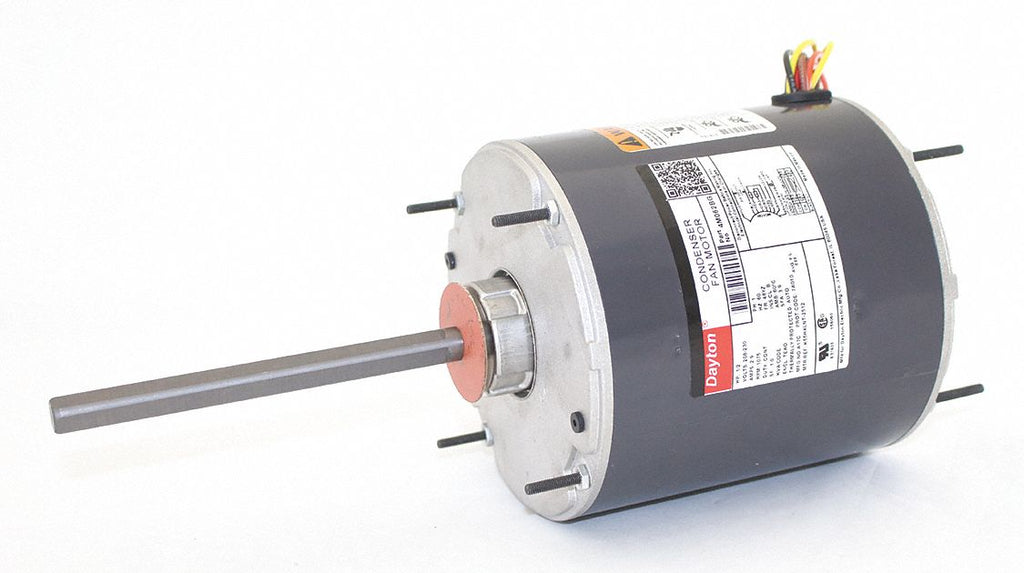

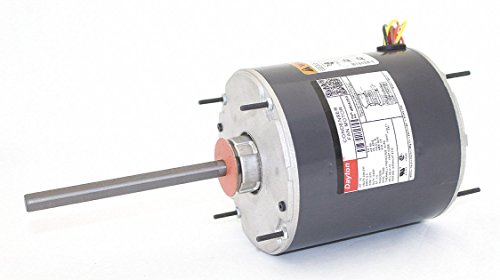

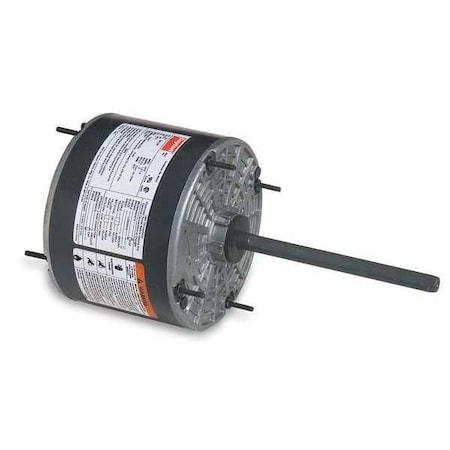

Condenser Fan Motor,1/2 HP,1075 RPM,60Hz
- Brand: Dayton
- PartNumber: 4M062
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 3.3-3.8 |
| Bearings | Ball |
| Body Dia. | 5-5/8", 5 5/8 in |
| Bolt Circle Dia. | 5 1/8 in, 5-1/8" |
| Brand | Dayton |
| Capacitor | 10MFD @ 370VAC Run Capa. |
| Capacitor Required | DMD2MDV7, 2MDV7 |
| Current Stock | 3 |
| Duty Cycle | Continuous |
| Enclosure Type | TEAO (Totally Enclosed . |
| Features | Reversing Plug, Totally. |
| Frame | 48YZ |
| Full Load Amps | 3.3 to 3.8 |
| HP | 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Condenser Fan Motor |
| Lead Length | 30", 30 in |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 6 7/16 in, 6 in |
| Max. Ambient Temp. | 60 Degrees C |
| Maximum Ambient Tempera. | 60? C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Totally Enclosed Air-Ov. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1, 1.00 |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 5-15/16" |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Mounting | Stud |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Mpn | 4M062 |
| Nameplate RPM | 1,075 |
| No. of Speeds | 2 |
| Nominal Efficiency | 71.50% |
| Number of Speeds | 2 |
| Overall Length | 12", 12 7/16 in |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Reversible |
| RPM | 1075 |
| RPM Range | 1,001-1,100 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Double Flatted |
| Shaft Length | 6", 6 in |
| Ship Weight | 19 lbs. |
| SKU | ZO-G2237234 |
| Standards | UL Recognized (E47479),. |
| Stud Quantity | 4 |
| Stud Size | 8-32 UNC x 3/4 in, 8-32. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735329801 |
| Voltage | 208 - 230, 208-230V AC |
| Volts | 208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B001GBPU0C | 149.98 | 1 | In Stock | 2 | Dayton | | 149.98 @ 1 |
| grainger.ca | GGE4M062 | 241.5119465 | 1 | In Stock | | DAYTON | 18.3 | 241.5119465 @ 1 |
| emotorpro.com | 4M062 | 244.79 | 1 | In Stock | | Dayton | 19.0 | 244.79 @ 1 |
 | Zoro | G2237234 | 249.99 | 1 | 9 | | Dayton | 21.14 | 249.99 @ 1 |
 | simsupply.com | ZO-G2237234 | 295.94 | 1 | 3 | | Dayton | | 295.94 @ 1 |
 | sustainablesupply.com | C1561217 | 332.94 | 1 | In Stock | | Dayton | 21.14 | 332.94 @ 1 |
 | Raptor Supplies | AD8TDL | 410.5702575 | 1 | In Stock | | DAYTON | | 410.5702575 @ 1 |
