EPCOS (TDK) B65813J0000R041

mpnB65813J0000R041
brandname: EPCOS
manufacturername: EPCOS

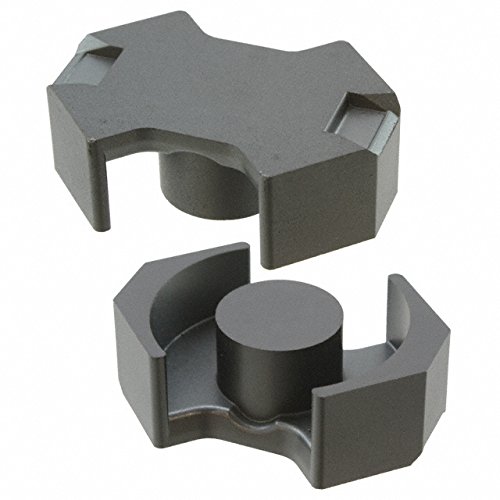

B65813J0000R041, Ferrite Core RM Core N41 5500nH -20% to 30%

B65813J0000R041, Ferrite Core RM Core N41 5500nH -20% to 30%

zoom

Brand: EPCOS (TDK)
PartNumber: B65813J0000R041
Model: B65813J0000R041
Manufacturer: EPCOS (TDK)
Label: EPCOS (TDK)

Attributes

Key	Value
Category	Magnetics - Transformer.
Core Factor (?I/A) mm<s.	0.45
Core Type	RM
Diameter	-
Effective Area (Ae) mm?	98
Effective core cross-se.	98mm
Effective core volume (.	4310mm
Effective Length (le) mm	44
Effective Magnetic Volu.	4310
Effective Permeability .	1960
Finish	Uncoated
Gap	Ungapped
Height	0.368" (9.35mm)
Inductance Factor (Al)	5.5 ?H
Inductance factor Al	5500nH
Initial Permeability (?.	2800
Length	1.122" (28.50mm)
Magnetic permeability	1960
Manufacturer	EPCOS
Material	N41
Mfr	EPCOS - TDK Electronics
Minimum Core Cross Sect.	90
Package	Box
Product Status	Active
Quantity in set/package	2pcs.
Series	RM10
Supplier Device Package	RM 10
Tolerance	-20%, +30%
Type of core	ferrite
Version	RM
Width	0.531" (13.50mm)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Mouser	871-B65813J0000R041	1.28	1000	200		EPCOS		1.28 @ 1000
	Avnet	B65813JR41	1.49197	200	67		EPCOS		1.49197 @ 200
	Verical	B65813J0000R041	1.6306	200	200		EPCOS		1.6306 @ 200
	Avnet Europe	B65813J0000R041	1.72545	200	67		EPCOS		1.72545 @ 200
	Digi-Key	3914242	4.58	1	In Stock		EPCOS - TDK Electronics		4.58 @ 1
	TME	B65813J0000R041	4.96	1	10		EPCOS		4.96 @ 1
