- mpn174508
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

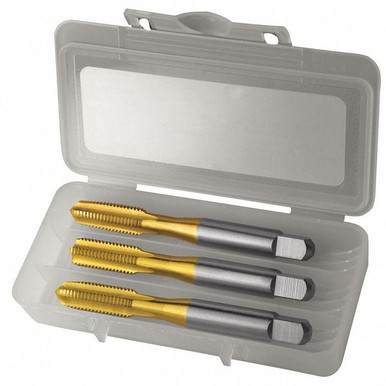

Tap Set,Inch,#10-24 Thread Size,3 pcs.
- Brand: Greenfield Threading
- PartNumber: 174508
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer | Bottoming/Plug/Taper |
| Class of Fit | 3B |
| Color | Grey |
| Current Stock | 47 |
| Cutting Direction | Right Hand |
| Diameter | 0.1900" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut, Right |
| Includes | #10-24 UNC |
| International Shipping | No |
| Item | Tap Set |
| Lead Time | Expected to ship in 1-2. |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel, . |
| Measurement System | Imperial |
| Mpn | 174508 |
| Number of Flutes | 4 |
| Number of Pieces | 3 |
| Overall Length | 2 3/8 in, 2.3800", 2.38. |
| Overall Length (Metric) | 60.45mm |
| Package Quantity | 3 pieces per set |
| Package Type | Rose Plastic UniBox |
| Pitch Diameter Limit | H3 |
| Product Type | Hand Tap Set |
| Series | HTGP |
| Shank Configuration | Straight w/ Square, Str. |
| Shank Dia. | 3/16 in |
| Shank Diameter | 0.194 in |
| Shank End | Square |
| Shank Size | 0.194 in, 0.1940" |
| Shank Size (Metric) | 4.93mm |
| Shank Square Length | 0.2500" |
| Shank Square Length (Me. | 6.35mm |
| Shank Square Width | 0.1520" |
| Shank Square Width (Met. | 3.86mm |
| Size | #10-24 |
| SKU | ZO-G7685520 |
| Square Size | 1/4 in L x 0.152 in W |
| Style | HTGP-3PC-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 302 |
| Tap Chamfer | Taper-Plug-Bottoming, B. |
| Tap Construction | Taper-Plug-Bottoming, S. |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap Set |
| Tap Interrupted Thread | No |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.39 in, 0.3900" |
| Tap Spiral Point | No |
| Tap Style | Straight Flute (Hand), . |
| Tap Thread Size | #10-24 |
| Tap Thread Type | UNC |
| Tap Truncated Threads | No |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 0.5 in, 1/2 in, 0.5000" |
| Thread Length (Metric) | 12.70mm |
| Thread Limit | H3, 2B |
| Thread Pitch | 24 |
| Thread Size | #10, #10-24 UNC |
| Thread Standard | UNC |
| Tool Size | #10-24 UNC |
| Type | Standard Straight Flute. |
| UPC | 093367745080 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6107541 | 18.65 | 3 | In Stock | | Greenfield Threading | | 18.65 @ 3 |
 | Zoro | G7685520 | 19.95 | 1 | 100 | | Greenfield Threading | 0.06 | 19.95 @ 1 |
 | heavydutydepot.com | 174508 | 20.4 | 5 | In Stock | | Greenfield Threading | | 20.4 @ 5 |
 | rshughes.com | 933677-45080 | 20.82 | 1 | In Stock | 35 | Greenfield Threading | | 20.82 @ 1 |
 | Megadepot | 174508 | 26.67 | 1 | In Stock | | Greenfield Threading | | 26.67 @ 1 |
 | usmegastore.com | 174508 | 26.67 | 1 | In Stock | | Greenfield Threading | | 26.67 @ 1 |
| grainger.ca | WWG53PW32 | 26.77498334 | 1 | In Stock | | GREENFIELD THREADING | 0.06 | 26.77498334 @ 1 |
 | sustainablesupply.com | C2782364 | 29.49 | 1 | In Stock | | Greenfield Threading | 0.06 | 29.49 @ 1 |
 | simsupply.com | ZO-G7685520 | 30.22 | 1 | 47 | | Greenfield Threading | | 30.22 @ 1 |
 | National Supply Network | 53209409 | 47.58 | 1 | In Stock | | Greenfield Threading | | 47.58 @ 1 |
