- mpn174529
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

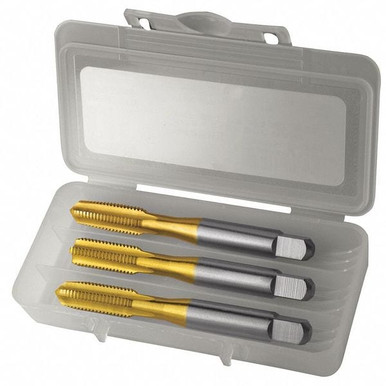

Tap Set, Inch, 3/8"-24 Thread Size, 3 pcs.
- Brand: Greenfield Threading
- PartNumber: 174529
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer | Bottoming/Plug/Taper |
| Class of Fit | 3B |
| Color | Grey |
| Current Stock | 9 |
| Cutting Direction | Right Hand |
| Diameter | 0.3750" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Includes | 3/8-24 UNF, Taper, Plug. |
| International Shipping | No |
| Item | Tap Set |
| Lead Time | Expected to ship in 1-2. |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel, . |
| Measurement System | Imperial |
| Mpn | 174529 |
| Number of Flutes | 4 |
| Number of Pieces | 3 |
| Overall Length | 2.9400", 2 15/16 in, 2.. |
| Overall Length (Metric) | 74.68mm |
| Package Quantity | 3 pieces per set |
| Package Type | Rose Plastic UniBox |
| Pitch Diameter Limit | H3 |
| Product Type | Hand Tap Set |
| Series | HTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 3/8 in |
| Shank Diameter | 0.381 in |
| Shank End | Square |
| Shank Size | 0.3810", 0.381 in |
| Shank Size (Metric) | 9.68mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.2860" |
| Shank Square Width (Met. | 7.26mm |
| Size | 3/8-24 |
| SKU | ZO-G7685277 |
| Square Size | 0.4375 in L x 0.286 in W |
| Standards | USCTI 302 |
| Style | HTGP-3PC-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 302 |
| Tap Chamfer | Taper-Plug-Bottoming, B. |
| Tap Construction | Taper-Plug-Bottoming, S. |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap Set |
| Tap Interrupted Thread | No |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.5100", 0.51 in |
| Tap Spiral Point | No |
| Tap Style | Straight Flute (Hand), . |
| Tap Thread Size | 3/8"-24 |
| Tap Thread Type | UNF |
| Tap Truncated Threads | No |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 0.75 in, 0.7500", 3/4 in |
| Thread Length (Metric) | 19.05mm |
| Thread Limit | H3, 2B |
| Thread Pitch | 24 |
| Thread Size | 3/8", 3/8-24 UNF |
| Thread Standard | UNF |
| Tool Size | 3/8-24 UNF |
| Type | Standard Straight Flute. |
| UPC | 093367745295 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6107554 | 28.86 | 2 | In Stock | | Greenfield Threading | | 28.86 @ 2 |
 | Zoro | G7685277 | 30.79 | 1 | 20 | | Greenfield Threading | 0.23 | 30.79 @ 1 |
 | usmegastore.com | 174529 | 31.57 | 1 | In Stock | | Greenfield Threading | | 31.57 @ 1 |
 | heavydutydepot.com | 174529 | 31.57 | 4 | In Stock | | Greenfield Threading | | 31.57 @ 4 |
 | rshughes.com | 933677-45295 | 32.21 | 1 | In Stock | 35 | Greenfield Threading | | 32.21 @ 1 |
 | Megadepot | 174529 | 35.24 | 1 | In Stock | | Greenfield Threading | | 35.24 @ 1 |
 | simsupply.com | ZO-G7685277 | 42.17 | 1 | 9 | | Greenfield Threading | | 42.17 @ 1 |
 | sustainablesupply.com | C2782162 | 45.28 | 1 | In Stock | | Greenfield Threading | 0.23 | 45.28 @ 1 |
| grainger.ca | GNF174529 | 47.23545448 | 1 | In Stock | | GREENFIELD THREADING | 101.15 | 47.23545448 @ 1 |
