Leeson 113902.00

mpn113902.00
brandname: Leeson
manufacturername: Leeson

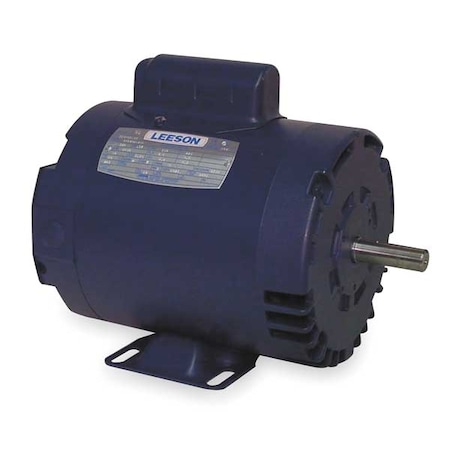

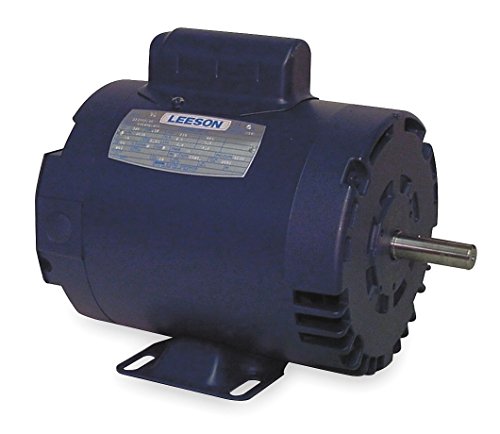

Leeson 113902.00 Rigid Base Special Voltage Motor, 1 Phase, 56 Frame, Rigid Mounting, 3/4HP, 3000 RPM, 110/220V Voltage, 50Hz Fequency

Brand: Leeson
PartNumber: 113902.00
Model: C6C28DB25E
Size: 1 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Alternate Mfr Part Numb.	C6C28DB25E
Ambient Temperature	40 Degrees C
Amperage Rating	11.2/5.6 A
Application Type	Compressor Motors, Fan .
Approvals	CSA, UL
Bearing Type	Ball
Category	Electric Motor
Class/Group	C6C28DB25
Composition	Steel
Country of Origin (subj.	United States
Current Rating	11.2 ; 5.6 A
Description:	3/4HP..55kW.2850RPM.56..
Dimensions	10.34 in L x 6.5 in W
Duty Cycle	Continuous
Efficiency	62 %
Enclosure	ODP, Drip Proof
Enclosure Type	Drip Proof, DP
Family Series	Leeson Motors, Special .
Frame	56
Frequency	50 Hz
Frequency Rating	50 Hz
Full Load Amps	11.2/5.6
Full Load Amps @ 50Hz	11.2/5.6
Gross Weight	0 lbs
Horsepower	0.75 HP, 3/4 hp
Horsepower Rating	0.75 HP
HP	3/4, 0.75
HP @ 50Hz	3/4
Hz	50
Ins. Class	B
Insulation Class	Class B
Insulation Type	Class B
Item	50 Hz Motor
Item Condition	FACTORY NEW
Item Number	113902.00
Length Less Shaft	8 1/2 in
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	113902.00
Material	Rolled Steel
Max. Ambient Temp.	40 Degrees C
MFG Part #:	113902.00
Model Number	C6C28DB25
Motor Application	General Application
Motor Bearings	Ball
Motor Design	Capacitor-Start
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.25
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
mounting	Rigid Base
Mounting Type	Foot Mount, Rigid, Rigi.
Nameplate RPM	2,850
NEMA Design	L
NEMA Frame	56
Net Weight	27 lbs
No. of Speeds	1
Nominal Efficiency	62 %
Nominal Voltage	120 VAC, 240 VAC
Number of Poles	2
Number of Speeds	1
Overall Length	10 5/16 in, 10.34 "
Phase	1, Single, 1 Phase, 1 ph
Product Series	Special Voltage
Rotation	Selective CCW
RPM	3,000 RPM, 2850 RPM, 30.
RPM @ 50Hz	2,850
RPM Range	1,801-3,000
Service Factor	1.25
Service Factor @ 50Hz	1.25
Shaft Dia.	5/8 in
Shaft Diameter	UL;CSA
Shaft Length	1 7/8 in
Shaft Size	0.63 in Dia x 1.88 in L
Special Features	Capacitor Start Motors,.
Standards	UL Recognized, CE Certi.
Supplier:	LEESON ELECTRIC CORPORA.
Supply Voltage	110/220 VAC
Type	Capacitor Start Inducti.
UPC Code	691720012567
UPC:	691720012567
Usable @ 200V	No
Usable @ 208V	No
Voltage	110/220V AC
Voltage @ 50Hz	110/220V AC
Voltage Compatibility	110/220-230V AC, 110/22.
Volts	110/220
Weight	30 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G1874957	203.76	1	In Stock		Leeson	27.09	203.76 @ 1
electricmotorwholesale.com	113902	281.0	1	In Stock		LEESON		281.0 @ 1
Dealers Electric	113902.00	494.65	1	In Stock		Leeson	30.0	494.65 @ 1
us.rs-online.com	72239234	535.38	1	In Stock		Leeson		535.38 @ 1
Galco	113902.00-LEES	541.35	1	In Stock		Leeson	27.0	541.35 @ 1
cbtcompany.com	113902.00	573.27	1	In Stock		Leeson Electric		573.27 @ 1
Walker Industrial	113902-00	586.47	1	In Stock	17	Leeson		586.47 @ 1
kscdirect.com	LEE 113902.00	635.43	1	In Stock		LEESON ELECTRIC CORPORATION		635.43 @ 1
