43045-0800

mpn0430450800
brandname: Molex
manufacturername: Molex

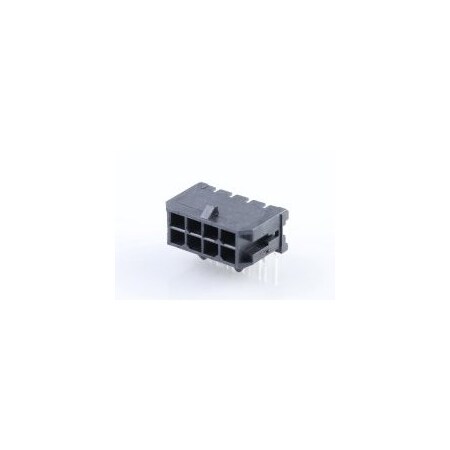

Headers & Wire Housings 8 CKT R/A HEADER

PartNumber: 43045-0800
Model: 43045-0800
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	43045-0800
Angle	Right Angle
Application	Wire-to-Board
Applications	General Purpose, Medica.
Base Product Number	043045
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.125" (3.18mm)
Contact Material	Brass
Contact Plating Thickne.	0.254 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	8.5 A
Current Rating (Amps)	8A
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Glow-Wire Capable; Surf.
Flammability Rating	UL 94V-0
For Use With	PCB Right-Angle Header
Gender	Male
Hole Center to Center	3 mm
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Insulation Material	Liquid Crystal Polymer .
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	8
Number of Contacts	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -, -40?.
Orientation	Right Angle
Overall Contact Length	-
Overall Length	0.551 "
Package	Tray
Package Quantity	1
Part Status	Active
Pin Spacing	0.118 "
Pitch	3.00 mm (0.118")
Pitch - Mating	0.118" (3.00mm)
Plating Material	Tin
Primary Type	Soft Shell
Product Header	Micro-Fit 3.0? Wire-to-.
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0 43045, 43.
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E2917.
Style	Board to Cable/Wire
Temperature Range	-40 to 105 C
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder, Surface Mount
Type	Right Angle Header
Voltage Rating	600V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Waldom	MOLEX 43045-0800	0.7	80	70188		MOLEX	0.7 @ 80
Sager Electronics	0430450800	0.713	1	3108		Molex	0.713 @ 25
Power and Signal Group	0430450800	0.8243	1440	25		Molex	0.8243 @ 1440
jensentools.com	10189296	0.93	1	80139		Molex	0.93 @ 25
NEP Electronics	43045-0800	0.9706	80	79008		Molex	0.9706 @ 80
Onlinecomponents.com	43045-0800	1.01	1	1778		MOLEX / WALDOM	1.01 @ 25
Digi-Key	252529	1.882	5760	25		Molex	1.882 @ 25
TME	MX-43045-0800	1.99	1	5594		MOLEX	1.99 @ 25
Newark	98K9321	2.24	1	10650		MOLEX	2.24 @ 25
us.rs-online.com	70090953	2.31	1	25		Molex Incorporated	2.31 @ 25
Component Electronics	299-3104	2.31	1	25		Molex	2.31 @ 25
RS Delivers	233-2977	3.0408	1	710		Molex	3.0408 @ 25
Radwell	43045-0800	3.5	10	25		MOLEX	3.5 @ 25
AmazonTP	B005T87A3S	6.15	1	25	2	MOLEX	6.15 @ 25
AmazonSC	B07QW43VGV	81.77	1	25		Molex	81.77 @ 25
Zoro	G4032582	100.0	80	25		Molex	100.0 @ 80
