Molex / Waldom 430450812

mpn0430450812
brandname: MOLEX
manufacturername: MOLEX

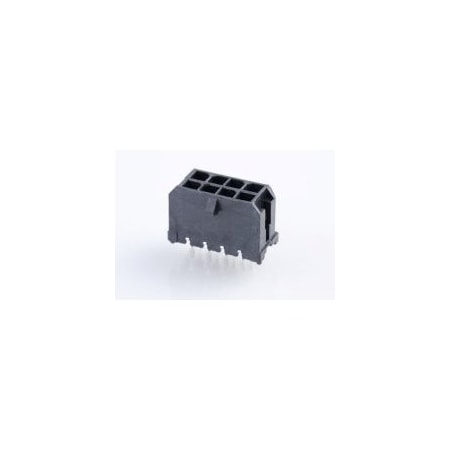

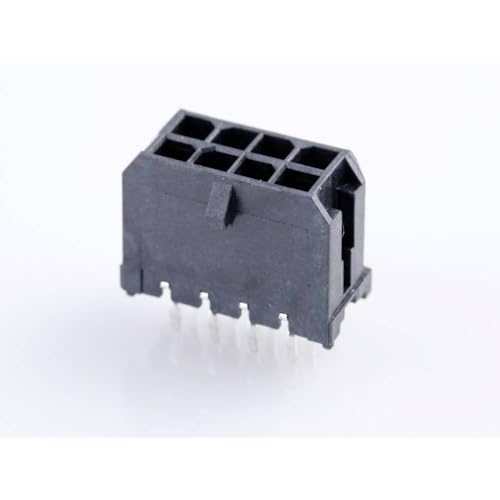

Molex / Waldom 43045-0812 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 430450812
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	43045-0812
Angle	Vertical
Application	Wire-to-Board
Applications	Automotive, General Pur.
ASIN	B005T87BFU
Base Product Number	043045
Category	Connectors, Interconnec.
Color	Black
Connector Shape	Square
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.125" (3.18mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	8.5 A
Current Rating (Amps)	8A
Description	CONN HEADER VERT 8POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM1792-ND
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Board Guide
Gender	Male
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.390" (9.91mm)
Insulation Material	Liquid Crystal Polymer .
Item model number	43045-0812
Item Package Quantity	1
Manufacturer	Molex
Manufacturer Product Nu.	0430450812
Manufacturer Standard L.	15 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	8
Number of Contacts	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -40?C ~.
Orientation	Vertical
Overall Contact Length	-
Overall Length	0.551 "
Package	Tray
Part Number	43045-0812
Pin Spacing	0.118 "
Pitch	3.00 mm (0.118")
Pitch - Mating	0.118" (3.00mm)
Plating Material	Tin
Primary Type	Soft Shell
Product Header	Micro-Fit 3.0? Wire-to-.
Product Status	Active
Representative Standard	UL / TUV / CSA
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0 43045, 43.
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	UL Listed, CSA Certifie.
Style	Board to Cable/Wire
Temperature Range	-40 to 105 C
Termination	Kinked Pin, Solder, Thr.
Type	Vertical Header
Voltage Rating	600V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Sager Electronics	0430450812	0.596	1	1542		Molex	0.596 @ 10
Power and Signal Group	0430450812	0.681	1440	10		Molex	0.681 @ 1440
Waldom	MOLEX 43045-0812	0.71	75	2685		MOLEX	0.71 @ 75
NEP Electronics	43045-0812	0.9118	85	2444		Molex	0.9118 @ 85
TME	MX-43045-0812	1.194	1	7426		MOLEX	1.194 @ 10
Newark	98K9322	1.42	1	27628		MOLEX	1.42 @ 10
Digi-Key	252505	1.645	1	21154		Molex	1.645 @ 10
Component Electronics	299-14071	1.69	1	50		Molex	1.69 @ 10
Misumi USA	43045-0812	1.85	1	10		Molex	1.85 @ 10
us.rs-online.com	70090925	1.95	1	10		Molex Incorporated	1.95 @ 10
RS Delivers	233-2905P	2.298	1	3360		Molex	2.298 @ 10
Radwell	0430450812	2.42	1	10		MOLEX	2.42 @ 10
AmazonSC	B005T87BFU	4.58	1	10		MOLEX	4.58 @ 10
AmazonTP	B00MMZ0HQS	9.66	1	10	2	MOLEX	9.66 @ 10
Zoro	G100416661	109.25	1	10		Molex	109.25 @ 10
