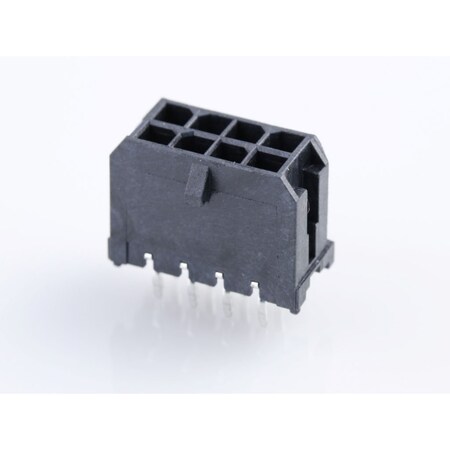

Molex / Waldom 43045-0813 Connector Headers and PCB Receptacles


- Brand: Molex / Waldom
- PartNumber: 43045-0813
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
Key | Value |
---|
Alternate Mfr Part Numb. | 43045-0813 |
Alternate Part No. | 538-43045-0813 |
Brand | Molex |
Category | Connectors, Interconnec. |
Color | Black |
Connector | socket |
Connector series | Micro-Fit 3.0 |
Connector Type | Male Pin |
Contact Finish | Gold Plated |
Contact Finish - Mating | 15.0?in (0.38?m) |
Contact Finish - Post | Brass |
Contact Finish Thicknes. | Tin |
Contact Finish Thicknes. | General Purpose, Medica. |
Contact Length - Mating | 0.125" (3.18mm) |
Contact Length - Post | - |
Contact Material | Liquid Crystal Polymer . |
Contact Plating | Gold |
Contact plating | gold-plated |
Contact Plating Thickne. | 0.381 ?m |
Contact Shape | Gold |
Contact Type | 0.118" (3.00mm) |
Contacts pitch | 3mm |
Current Rating | 8.5 A, 5 A |
Current Rating (Amps) | 600V |
Electrical mounting | THT |
Family Name | Micro-Fit 3.0 |
Fastening Type | - |
Features | -, Glow-Wire Capable; S. |
Flammability Rating | UL 94V-0 |
Hole Center to Center | 3 mm |
Housing Material | Thermoplastic |
Ingress Protection | UL94 V-0 |
Insulation Color | 8A |
Insulation Height | Square |
Insulation Material | Board Guide |
Kind of connector | male |
Locking system | for latch |
Manufacturer | Molex |
Manufacturer Part No. | 43045-0813 |
Mated Stacking Heights | 100.0?in (2.54?m) |
Material | High Temperature Thermo. |
Material Flammability R. | Black |
Max. Temp. | 260?C |
Max. voltage | 600V |
Max. Voltage | 600V |
Maximum current | 5A |
Mfr | Molex |
Mounting Angle | Vertical |
Mounting Type | Kinked Pin, Solder |
Number of Circuits | 8 |
Number of Contacts | 8 |
Number of pins | 8 |
Number of Positions | 8, 2 |
Number of Positions Loa. | Board to Cable/Wire |
Number of Rows | 2, 0.118" (3.00mm) |
Operating Temperature | - |
Orientation | Vertical |
Overall Contact Length | 0.390" (9.91mm) |
Package | Active |
Packaging | Tray |
Part # Aliases | 0430450813 |
Part Status | Header |
Pitch | 3.00 mm (0.118"), 3 mm |
Pitch - Mating | 8 |
Plating Material | Gold |
Primary Type | Soft Shell |
Product Category | Headers & Wire Housings |
Product Type | Header Assemblies |
Row Spacing | 3 mm |
Row Spacing - Mating | All |
Series | 43045, Tray, 43045 Seri. |
Shrouding | Through Hole |
Spatial orientation | straight |
Special Features | Low-Halogen |
Standards | CSA Certified; UL E29179 |
Style | Shrouded - 4 Wall |
Terminal Finish | Tin Plated |
Terminal Type | Through Hole - Kinked P. |
Termination | Locking Ramp, Surface M. |
Termination Style | Through Hole - Kinked P. |
Tradename | Micro-Fit 3.0 |
Type | Vertical Header, Pin He. |
Type of connector | wire-board |
Type of pin configurati. | 2x4 |
Voltage Rating | -, 600 V |
