Molex 43045-0816

B00GQRHCW0

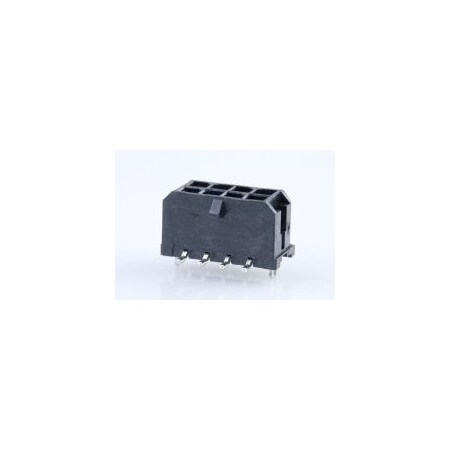

MOLEX - 43045-0816 - Pin Header, Power, 3 mm, 2 Rows, 8 Contacts, Surface Mount Straight, Micro-Fit 3.0 43045 Series

MOLEX - 43045-0816 - Pin Header, Power, 3 mm, 2 Rows, 8 Contacts, Surface Mount Straight, Micro-Fit 3.0 43045 Serieszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number043045
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post-
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)8A
DescriptionCONN HEADER SMD 8POS 3MM
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM14303TR-ND - Tape & R.
Fastening TypeLocking Ramp
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.390" (9.91mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerMolex
Manufacturer Product Nu.0430450816
Manufacturer Standard L.17 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeSurface Mount
Number of Positions8
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
PackageTape & Reel (TR)
Pitch - Mating0.118" (3.00mm)
Product StatusActive
Row Spacing - Mating0.118" (3.00mm)
SeriesMicro-Fit 3.0 43045
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com43045-08161.871355MOLEX / WALDOM1.87 @ 10
thumbzoomNewark56H95241.99280010MOLEX1.99 @ 2000
RS Delivers167-17232.1564110Molex2.1564 @ 10
HotendaH13735512.38362002600Molex2.3836 @ 200
thumbzoomZoroG3004167372.64140010Molex2.64 @ 1400
thumbzoomDigi-Key33102033.37211386Molex3.372 @ 10
thumbzoomRadwell43045-08165.0280010MOLEX5.0 @ 2800
