NTN ZUCNFL205-16

B00FG7AUBQ

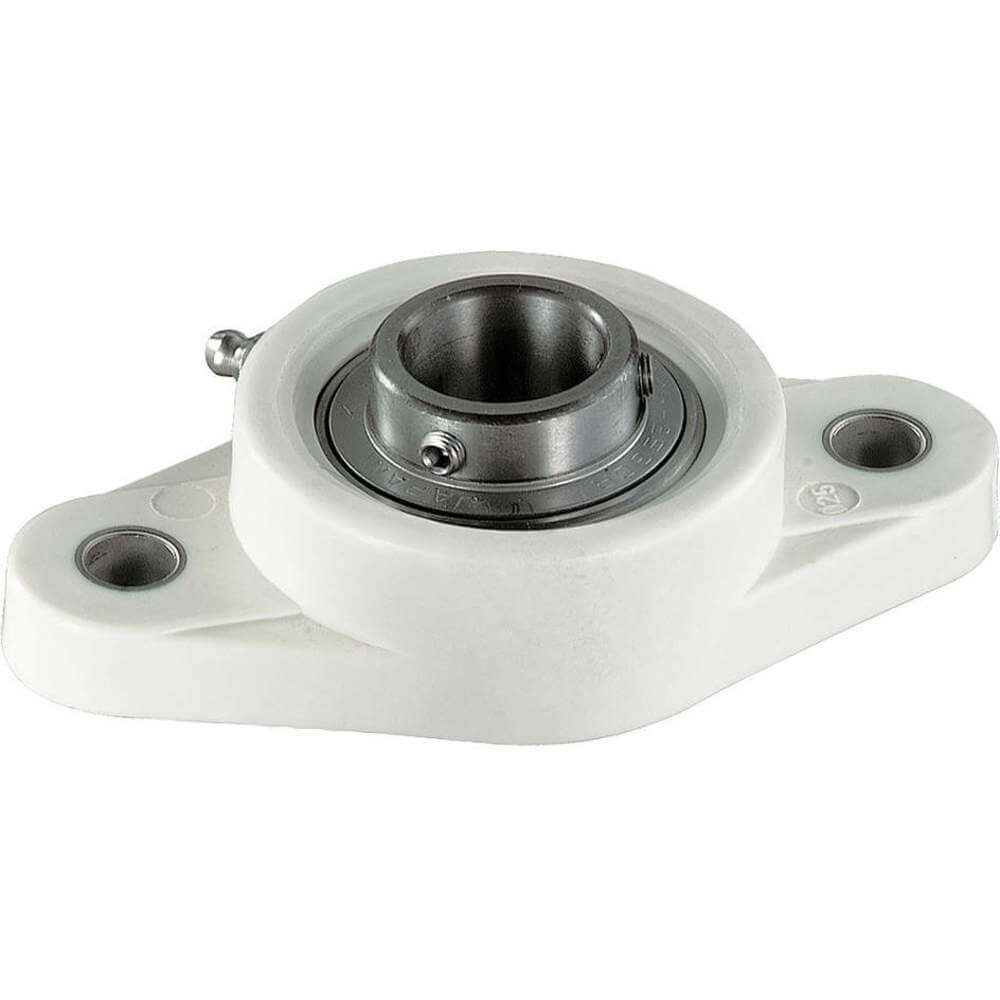

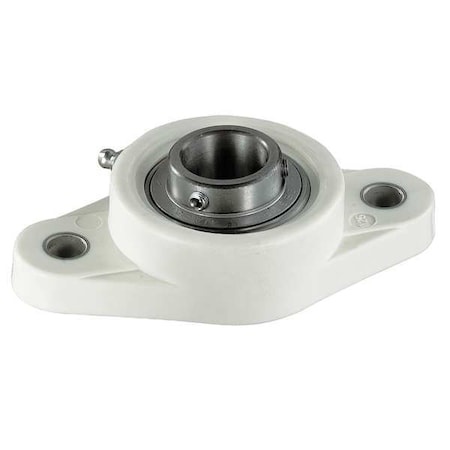

Flange Bearing, 2-Bolt, Ball, 1" Bore

Flange Bearing, 2-Bolt, Ball, 1" Borezoom

Attributes

Key Value
Bearing Housing Materia.PBT
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing LubricationCaltex FM EP or Equival.
Bearing Material Grade52100
Bolt Hole Center-to-Cen.99 mm
Bolt SizeM10
Bore Dia.1 in
Bore Diameter1 in
BrandNtn
Cover TypeNo Cover
Current Stock3
Dynamic Load Capacity2,680 lb
FinishNone
Housing MaterialPolymer
Includes(2) Set Screws
International ShippingNo
Item2 Bolt Flange Bearing
Lead TimeExpected to ship in 1-2.
Locking TypeSet Screw
Mount Hole Center-to-Ce.3 57/64 in
Mounting Bolt Size7/16 in
MpnZUCNFL205-16
Overall Height70 mm
Overall Length130 mm
Overall Width36.7 mm
SeriesZUCNFL
Shaft Locking TypeSet Screws
SizeStandard Duty
SKUZO-G5158167
Static Load Capacity1,420 lb
SubCategoryPower Transmission
Temp. Range-2 Degrees to 248 Degr.
Unit Body MaterialThermoplastic
Unit, TypeBearing unit

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG515816794.49110Ntn0.794.49 @ 1
thumbzoomsimsupply.comZO-G5158167111.9313Ntn111.93 @ 1
thumbzoomMisumi USAZUCNFL205-16149.111In Stock18NTN149.11 @ 1
thumbzoomRaptor SuppliesAG6TJC215.6038561In StockNTN215.603856 @ 1
thumbzoomMRO Supply2170723324.171In StockNTN Bearing324.17 @ 1
