NTN HPC103TP2

mpnHPC103TP2
brandname: NTN Bearing
manufacturername: NTN Bearing

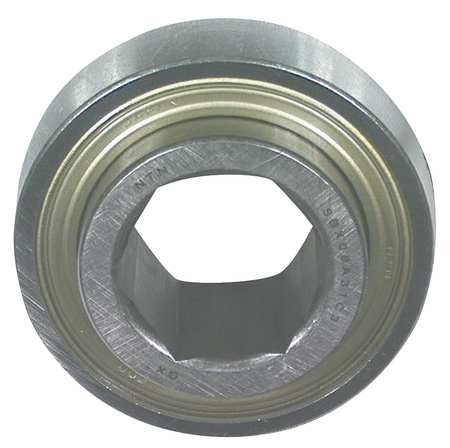

Disc Bearing, 1.25 in. Hex Bore

Disc Bearing, 1.25 in. Hex Bore

zoom

Brand: NTN
PartNumber: HPC103TP2
PackageQuantity: 1
Binding: Toy
Manufacturer: NTN
Label: NTN

Attributes

Key	Value
ABEC Tolerance	1
Bearing Material	Steel
Bearing Type	Hex Bore, Cylindrical O.
Bore Dia.	1.25 in
Bore Diameter	1.265 in
Bore Size	1.265 in
Bore Size Tolerance	+/-0.005 in
Bore Tolerance	+/-0.005 in
Cage	Steel
Cage Material	Steel
Dynamic Load Capacity	4,450 lb
EAN	4547359476873
Enclosure	Double sealed
Flange Size	Not Applicable
For Shaft Size	1 1/4 in
ISO Rating	Class 0
Item	Agricultural Disc Beari.
Lubrication	Shell Alvania #2
Manufacturer Name	NTN
Material	Through hardened steel
Max. RPM	630 RPM
Minimum Buy Quantity	N/A
Outside Dia.	2.8346 in
Outside Dia. Tolerance	+0/-0.0006 in
Outside Diameter	2.834 in
Overall Width	1.484 in
Product Group - BDI	B00308
Seal Material	Nitrile Rubber
Static Load Capacity	3,150 lb
Temp. Range	-13 Degrees to 250 Deg.
Weight / Kilogram	0.421
Width	1.4843 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	motionindustries.com	03639426	55.48	1	2		NTN		55.48 @ 2
	Zoro	G1267603	78.39	1	2		Ntn	1.03	78.39 @ 2
	BDI Express	1220371	91.35537809	1	2		NTN	0.9262	91.35537809 @ 2
	sustainablesupply.com	C2908625	120.23	1	2		NTN	1.03	120.23 @ 2
	Raptor Supplies	AE2YTU	159.512886	1	2		NTN		159.512886 @ 2
	MRO Supply	274934	370.27	1	2		NTN Bearing		370.27 @ 2
